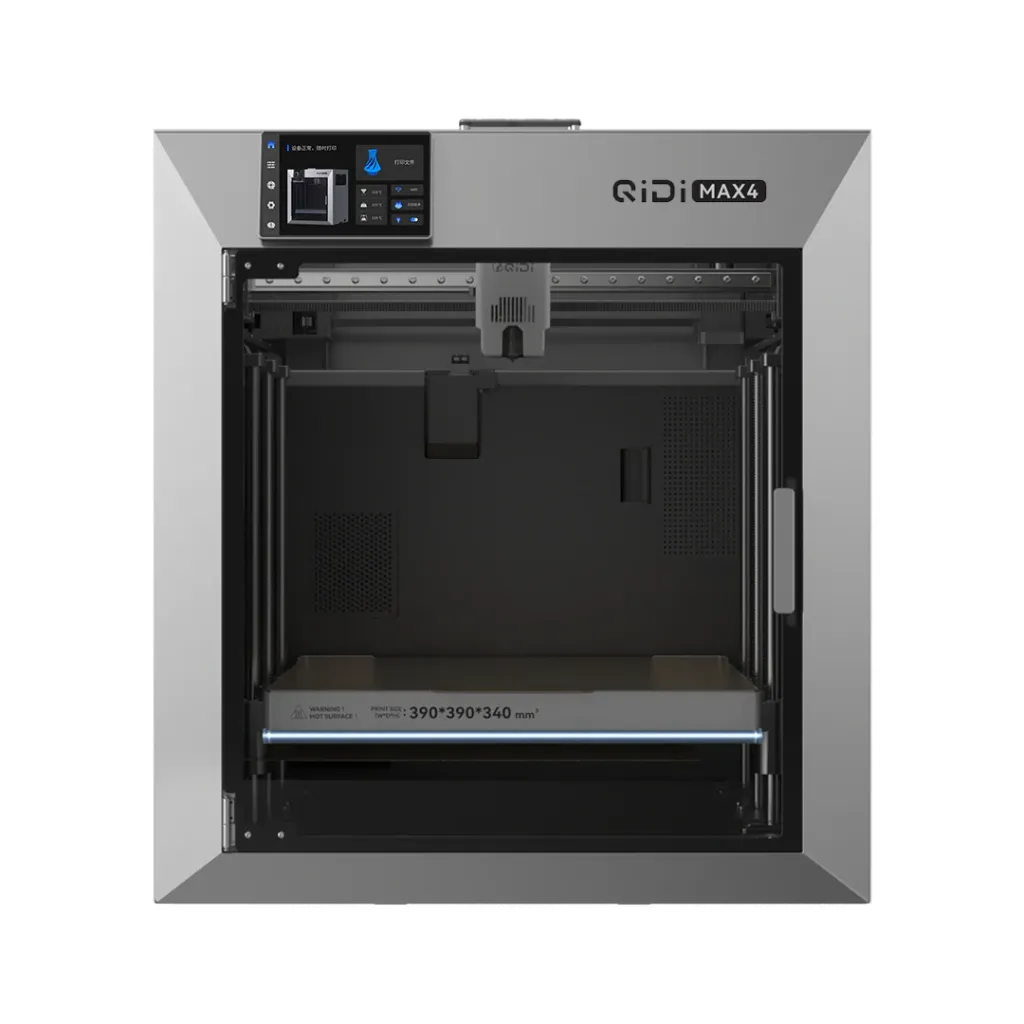

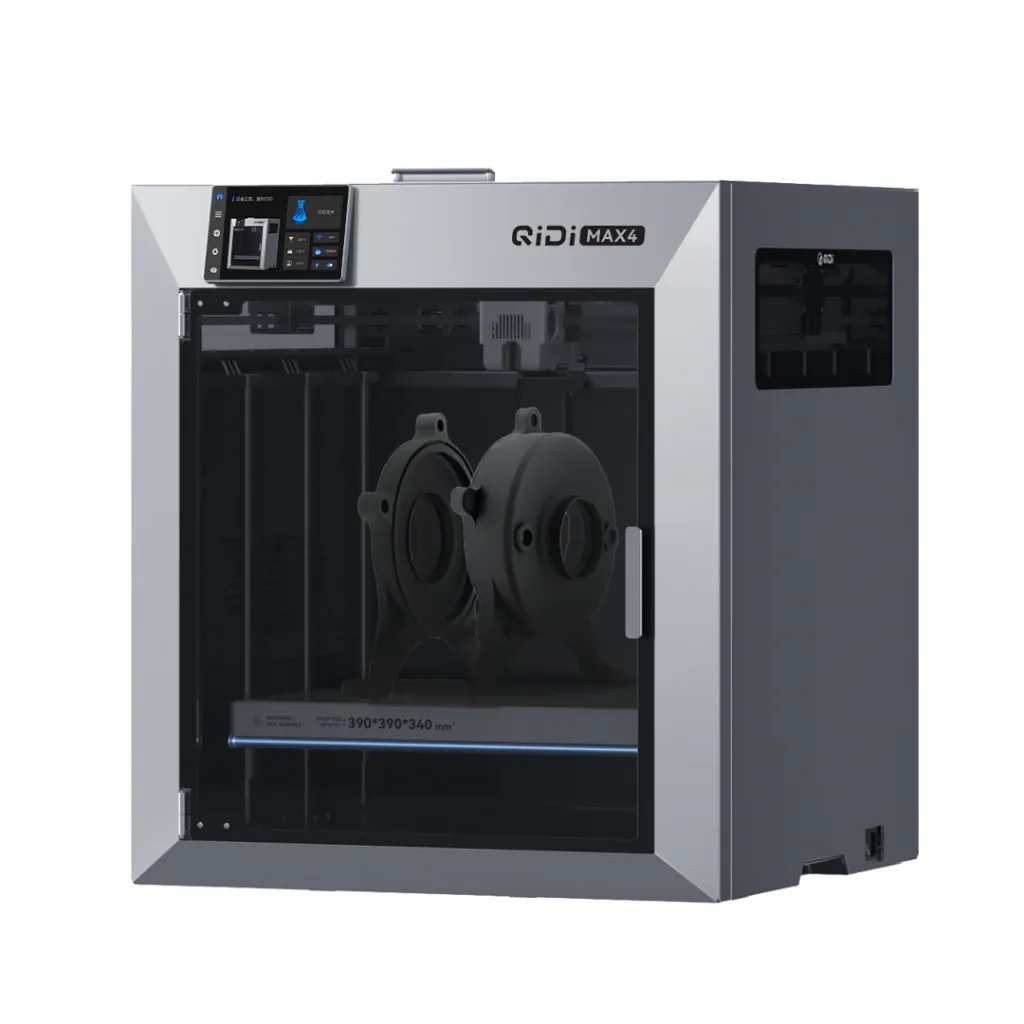

QIDI Max4 3D Printer

(0 review)

Unleash High-Temp Power. Master Multi-Material. Deliver Industrial-Grade Results

  • Build volume 390x390x340 mm
  • Active cooling air control system: no clogging
  • Adopt a 2 mm lead Z-axis screw, with anti-backlash nut
  • 390×390 mm ultra-uniform heated bed
  • AI camera，ensuring every print
  • Compatible with QlDl Box ( Multi-color )
1,799,999.00 Rs. 1,799,999.00 Rs.

  • Brand
  • Options
Add to cart Buy now
Order Via WhatsApp
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Brand: QIDI

QIDI Max4 Combo 3D Printer, 390×390×340mm Build Volume, 65℃ Heated Chamber | 370℃ nozzle, dual Z lead screws, max 800mm/s high speed, auto-leveling, AI camera, Polar Cooler optional, multi-materials

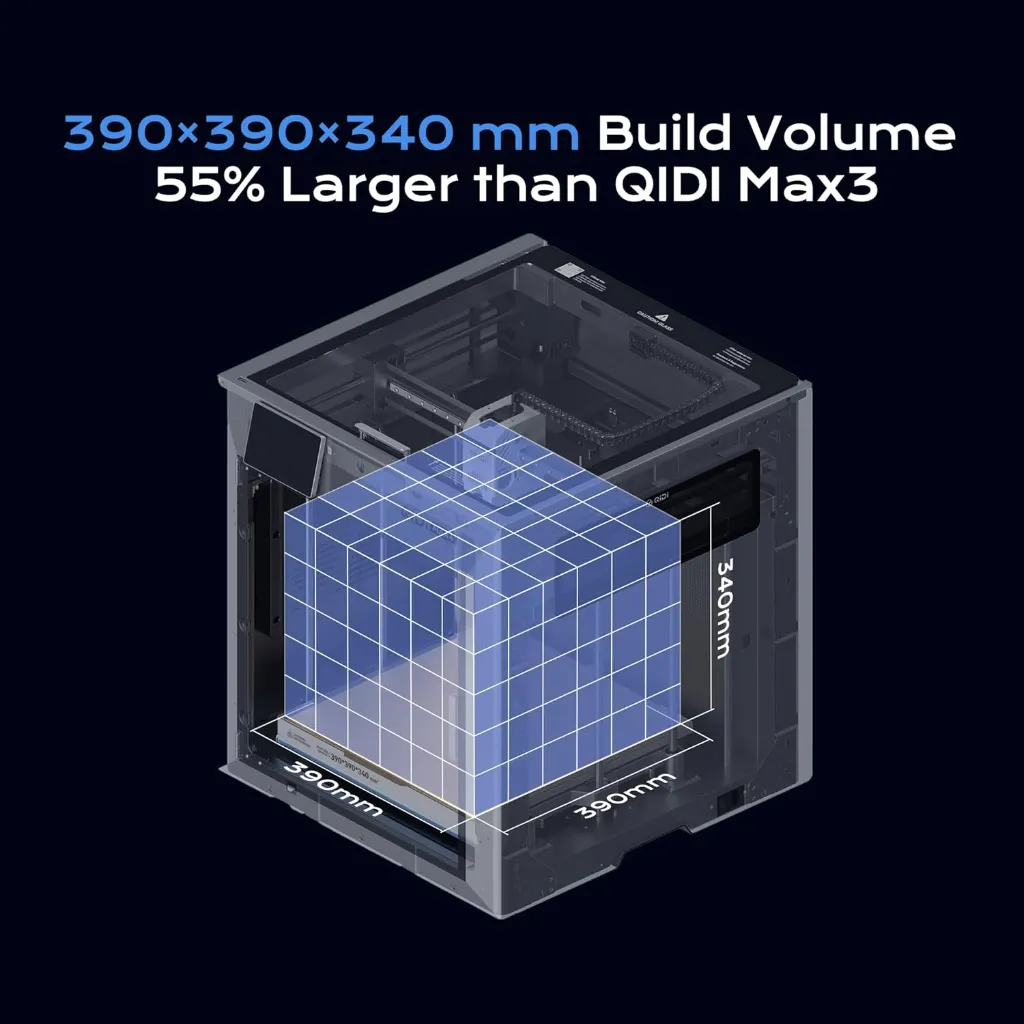

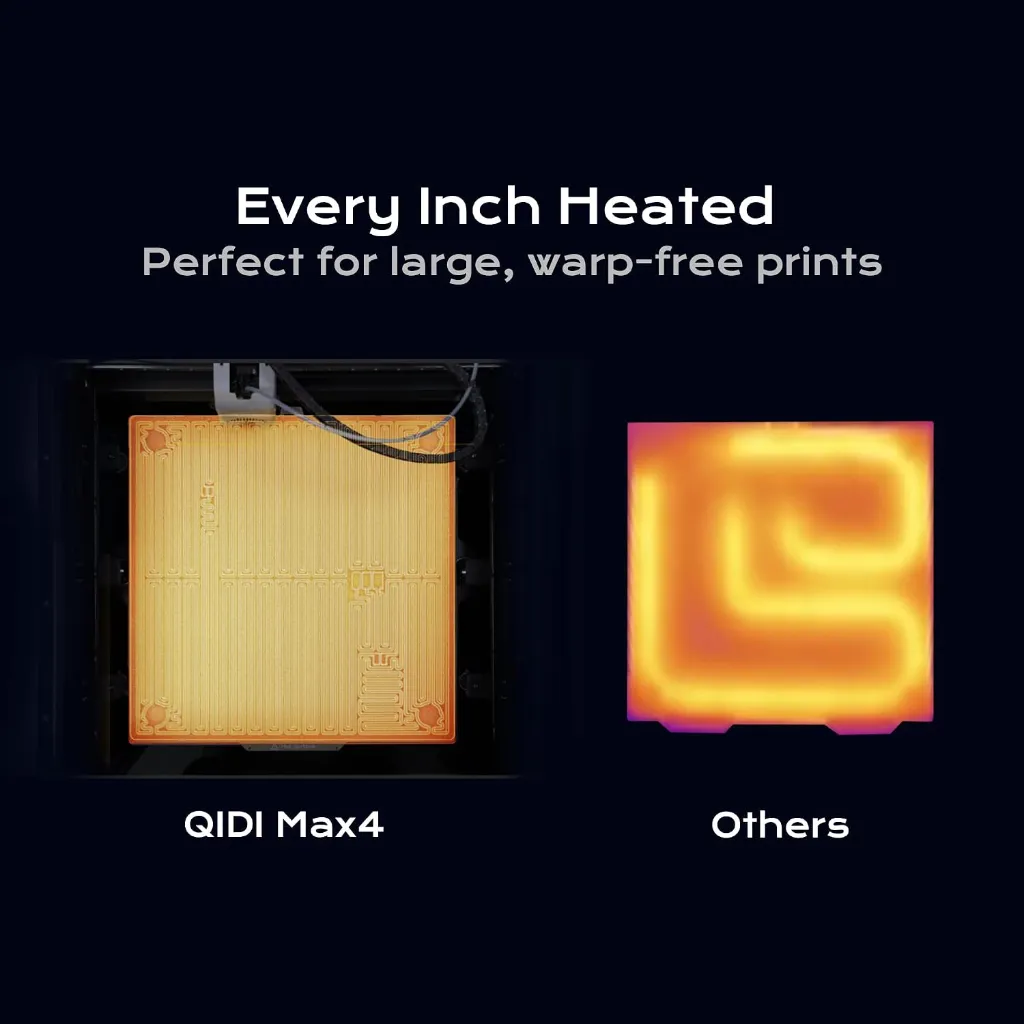

  • Ultra-Large Build Volume: QIDI Max4 Combo has a 390×390×340mm printing area, 55% larger than its predecessor MAX3, enables you to print large industrial parts, complex molds and custom prototypes in one go without splitting; full-surface silicone heated bed ensures even temperature distribution and strong first-layer adhesion to avoid warping.

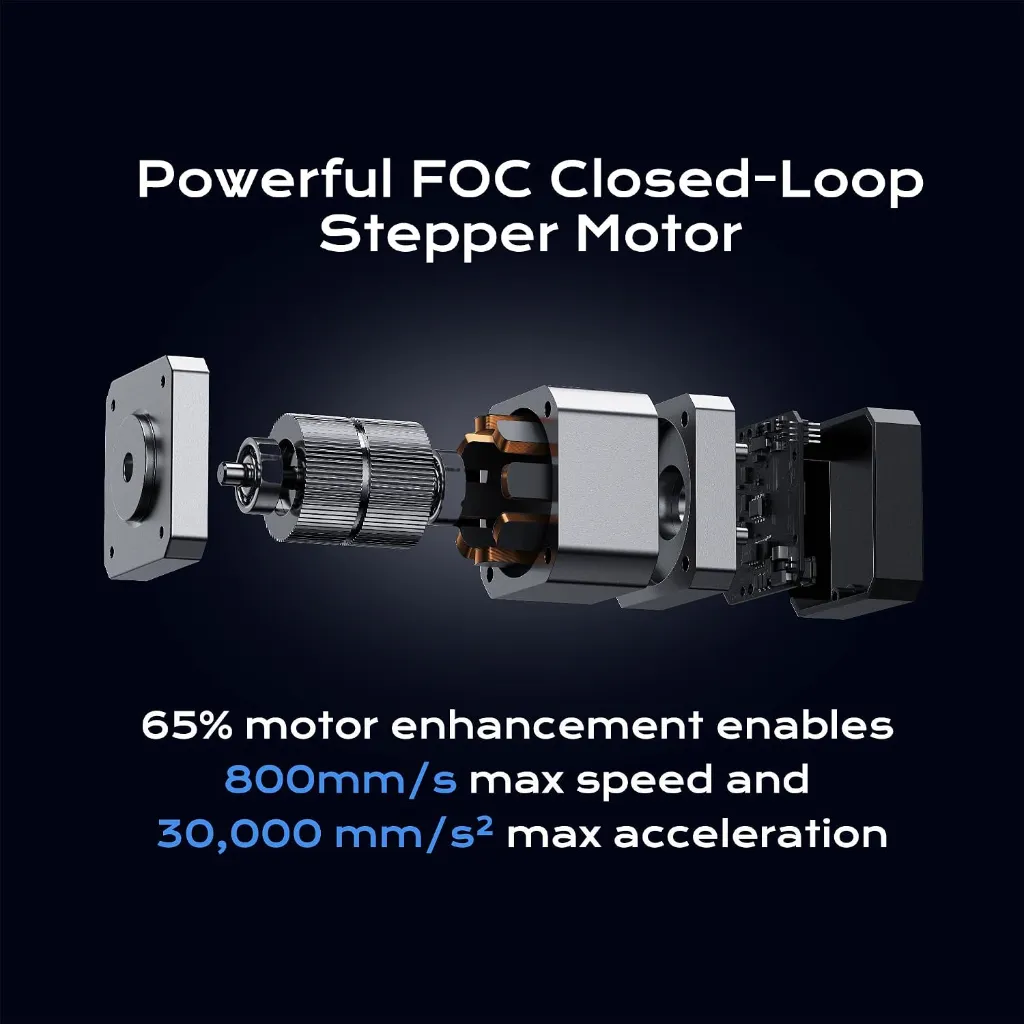

  • High Precision & Stability: QIDI Max4 Combo 3D Printer equipped with closed-loop motors on X/Y axes, Achieve a maximum printing speed of 800mm/s and an acceleration of 30,000mm/s²; 2mm lead screw and anti-backlash nut on Z-axis reduce vertical gaps, ensuring smooth and precise printing with excellent surface quality.

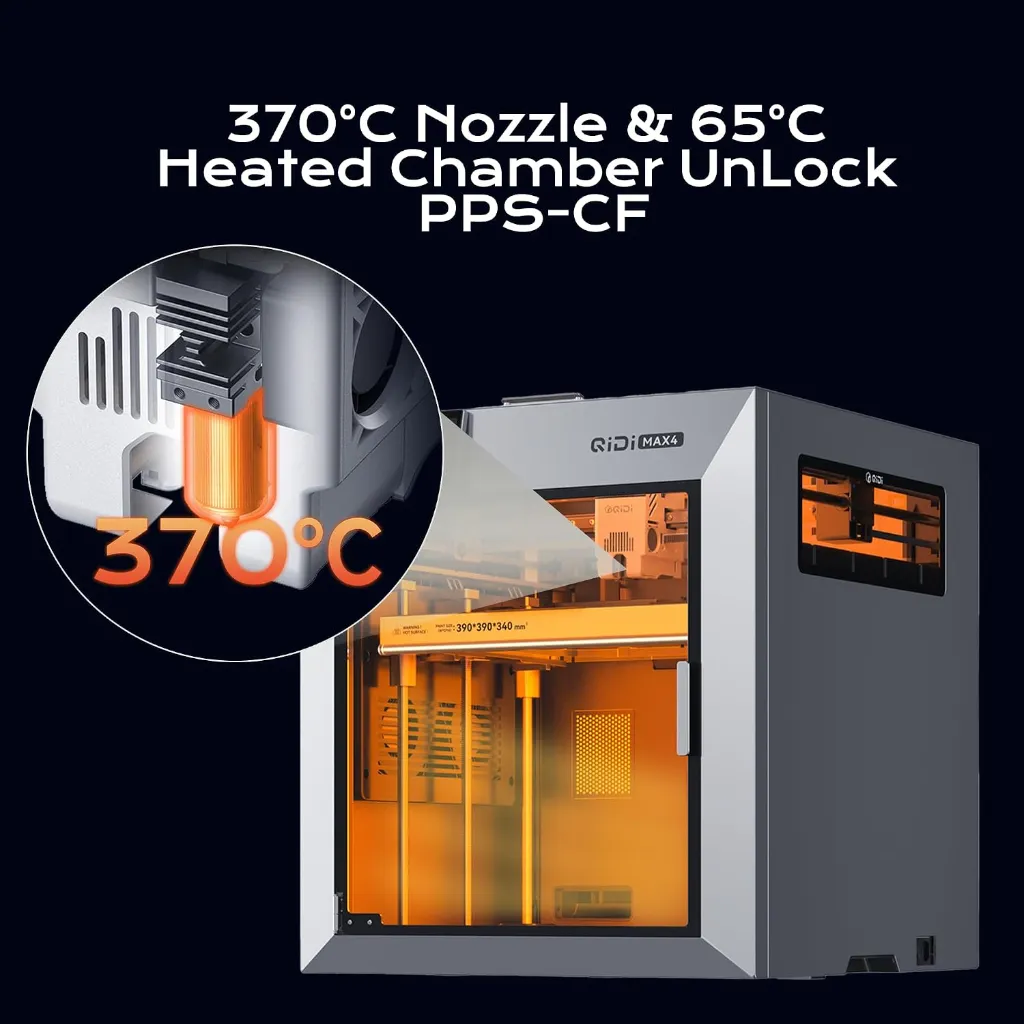

  • Wide Material Compatibility: 40mm³/s high-flow hotend with hardened steel nozzle supports standard materials (PLA/ABS) and industrial-grade abrasive materials (carbon fiber-reinforced nylon); 65℃ active heated chamber and self-developed Polar Cooler system create ideal printing conditions for high-temperature materials like ABS-CF, PC, PPS-CF.
  • Smart Monitoring & User-Friendly Design: Built-in AI camera automatically detects printing abnormalities (e.g., spaghetti-like failures) and pauses printing instantly to save materials and time; large touch screen with optimized interface offers smooth operation, QIDI Max4 Combo suitable for both professionals and enthusiasts.

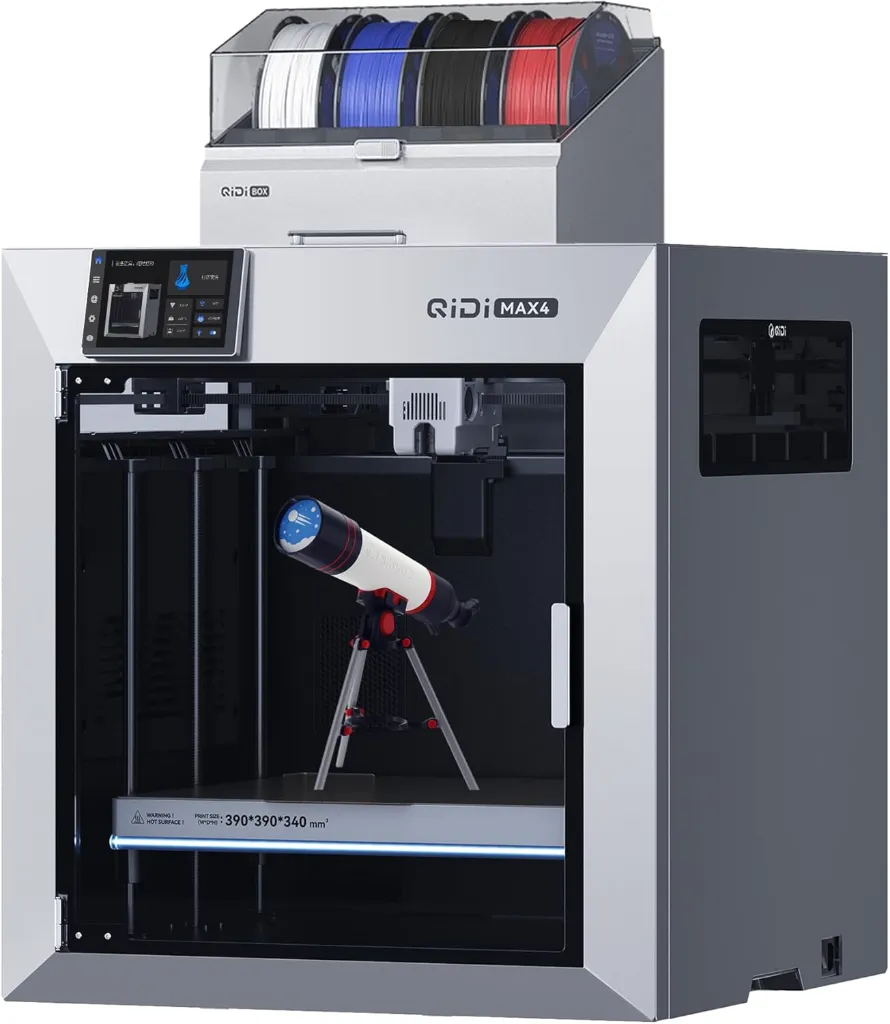

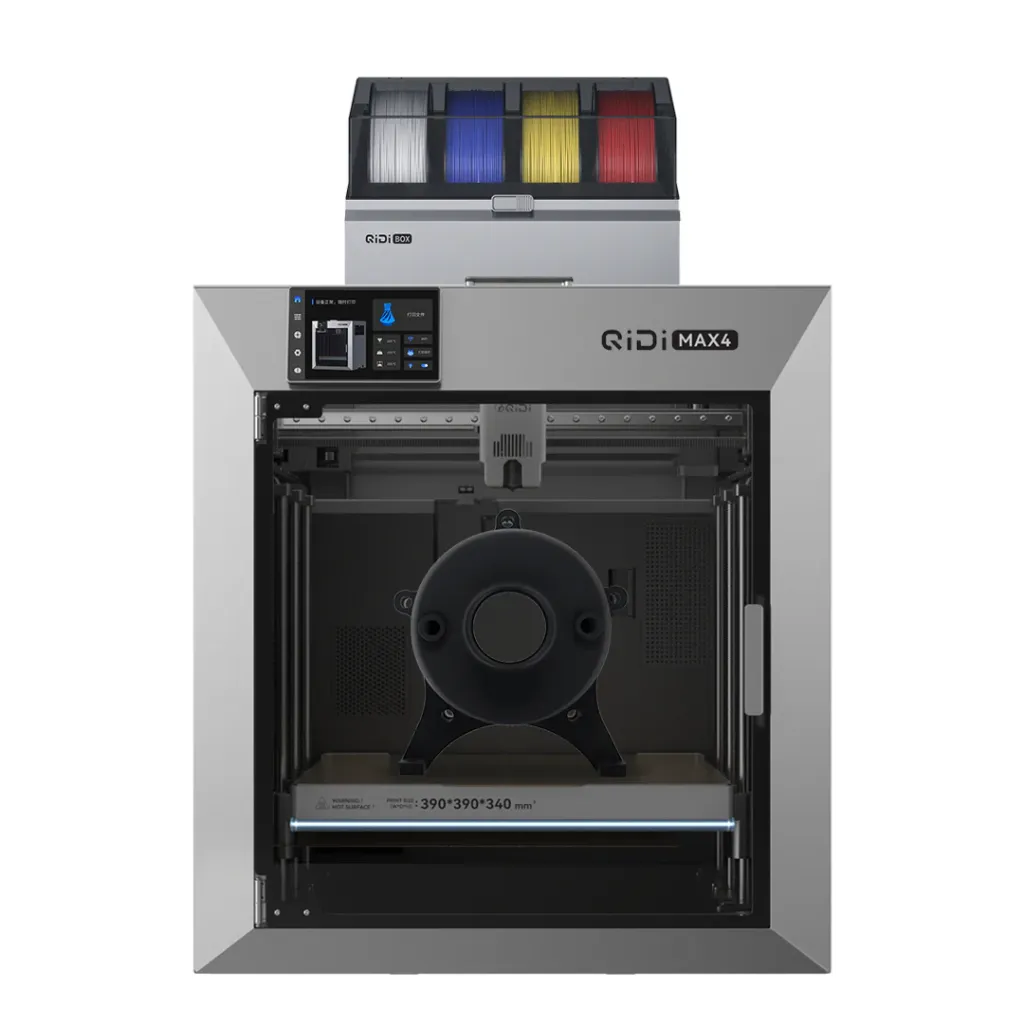

  • Expandable Multi-Color Printing: Seamlessly connect with QIDI BOX to achieve 16-color and multi-material printing and enjoy intelligent filament management (e.g., real-time filament level monitoring, automatic pause when filament runs out); providing you with a worry-free 3D printing experience.

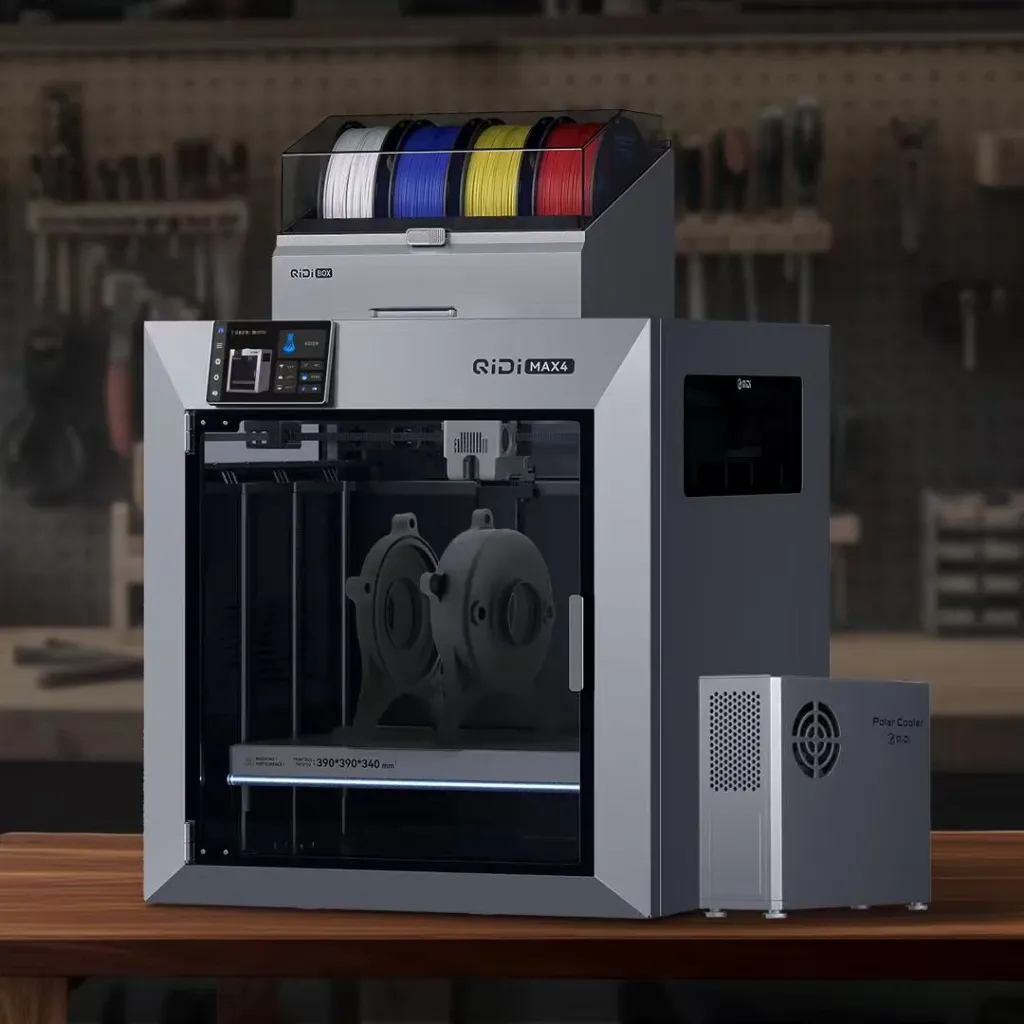

  • Note: The max4 series does not come with the Polar Cooler. The Polar Cooler must be purchased separately.



QIDI Max4 Combo 3D Printer, 390×390×340mm Build Volume, 65℃ Heated Chamber | 370℃ nozzle, dual Z lead screws, max 800mm/s high speed, auto-leveling, AI camera, Polar Cooler optional, multi-materials
QIDI Max4 Combo 3D Printer, 390×390×340mm Build Volume, 65℃ Heated Chamber | 370℃ nozzle, dual Z lead screws, max 800mm/s high speed, auto-leveling, AI camera, Polar Cooler optional, multi-materials
QIDI Max4 Combo 3D Printer, 390×390×340mm Build Volume, 65℃ Heated Chamber | 370℃ nozzle, dual Z lead screws, max 800mm/s high speed, auto-leveling, AI camera, Polar Cooler optional, multi-materials
QIDI Max4 Combo 3D Printer, 390×390×340mm Build Volume, 65℃ Heated Chamber | 370℃ nozzle, dual Z lead screws, max 800mm/s high speed, auto-leveling, AI camera, Polar Cooler optional, multi-materials
QIDI Max4 Combo 3D Printer, 390×390×340mm Build Volume, 65℃ Heated Chamber | 370℃ nozzle, dual Z lead screws, max 800mm/s high speed, auto-leveling, AI camera, Polar Cooler optional, multi-materials

Gr

What's in the box

What's in the box

QIDI Max4 Technical Specifications


 Print Size (W*D*H) 390*390*340 mm

Printer Dimensions 558*578*612 mm

 Package Dimensions 700*710*750mm

Gross WeightMax4:49.5kg
Max4 Combo:56kg
Net WeightMax4:40kg
Max4 Combo:46.5kg		Print Head Temperature≤ 370℃

Included Build Plate TypeDual-Sided Textured PEI Plate

Hot Bed Temperature≤ 120℃

Max Speed of Tool Head 800mm/s

Acceleration ≤30000mm/s²

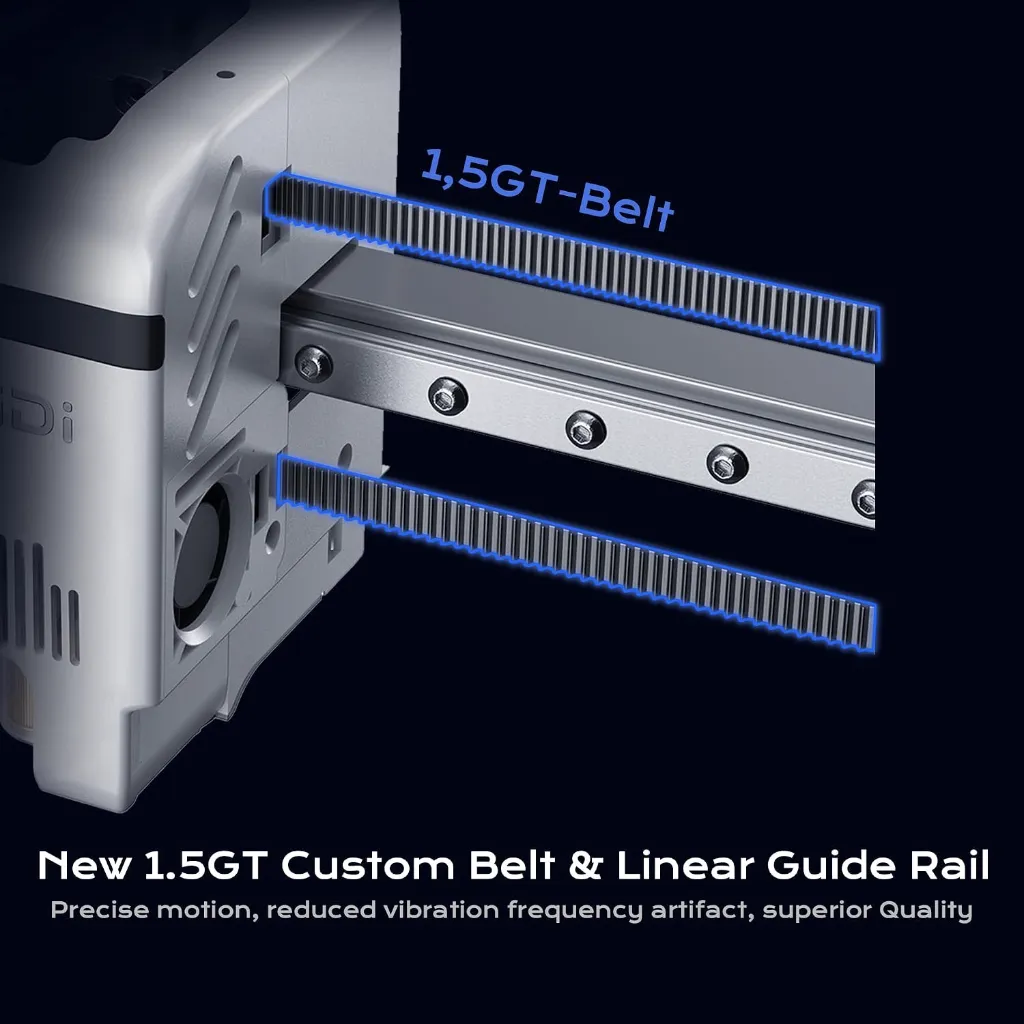

XY StructureCoreXY, 1.5GT 10mm Width Belt
FOC Closed-loop Stepper Motor		X/Y AxisX: High Hardness Linear Guide Rail
Y: 12mm Linear Steel Shafts
Z AxisIndependent 2mm lead screw motors ×2
12mm Linear Steel Shafts ×4		Printing PlatformAluminum Plate Silicone Heated Bed
NozzleBimetal NozzleNozzle Diameter0.4mm （0.2/0.6/0.8mm Optional）
Extruder Gear Direct Extruder
Hardened Steel Dual Gears		Supported Filament PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc.
Filament Diameter1.75mmMulti-Color Printing Compatible with QIDI Box(Multi-color)

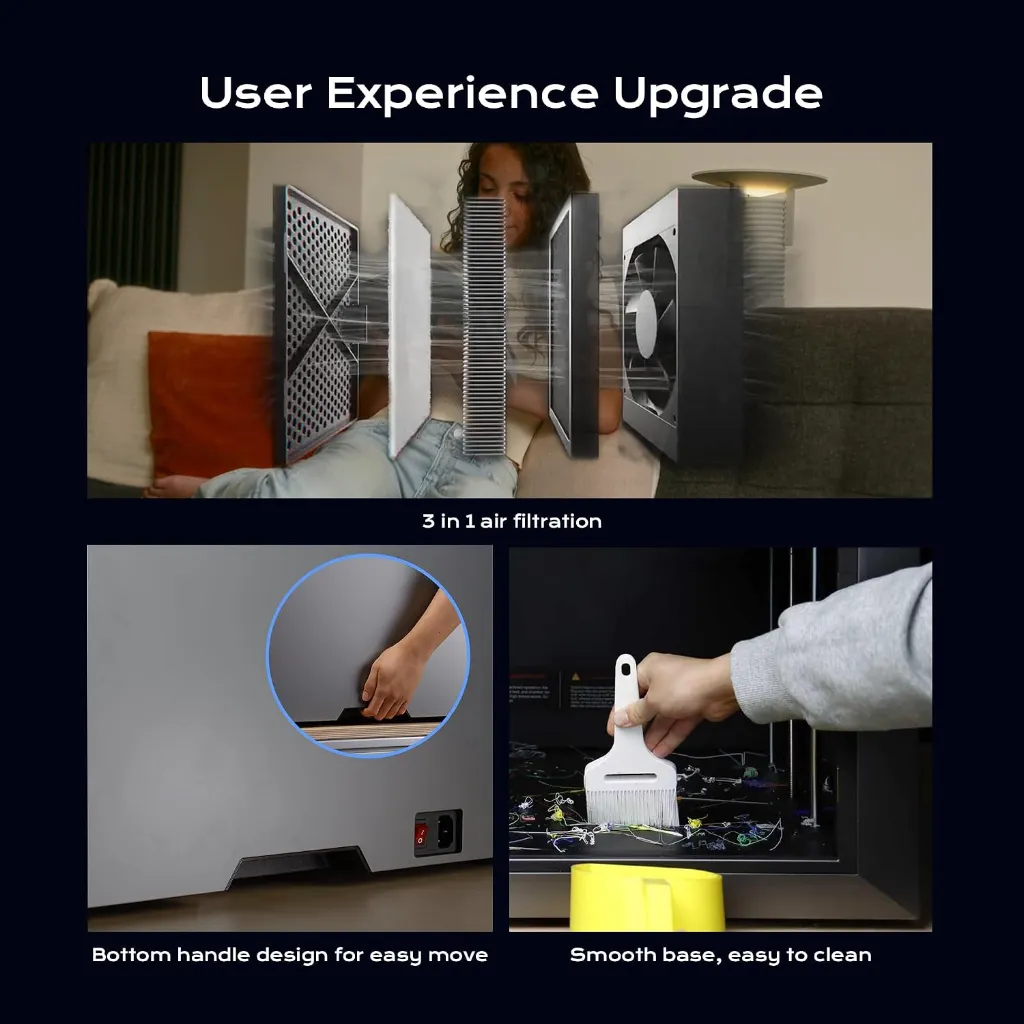

Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon）
Chamber Temperature(PTC Heater)3rd Gen Up to 65° C Independent Chamber Heating
Automatic LevelingHands-free Automatic Leveling
（Loadcell Sensor Integrated into the Hotend）		Filament DetectionRun Out Sensor(mounted above extruder)
Tangle Detection(QIDI BOX required)
AI Camera DetectionYesAuxiliary Part Cooling Fan4-Pin PWM Fan with RPM Feedback
Hot End Cooling Fan4-Pin PWM Fan with RPM FeedbackModel Cooling Fan4-Pin PWM Fan with RPM Feedback
Extruder CoolerYes (Polar Cooler required)Status RGB LEDYes
Power Loss Recovery：YesInput ShapingYes
Voltage110V / 220–240V AC, 50/60Hz (region-specific models available)Rated Power150W+500W(Chamber Heating)+700W(Heating Bed)
CameraCamera (Up to 1080P) Timelapse SupportedStorage32G EMMC and USB2.0 Flash Drive

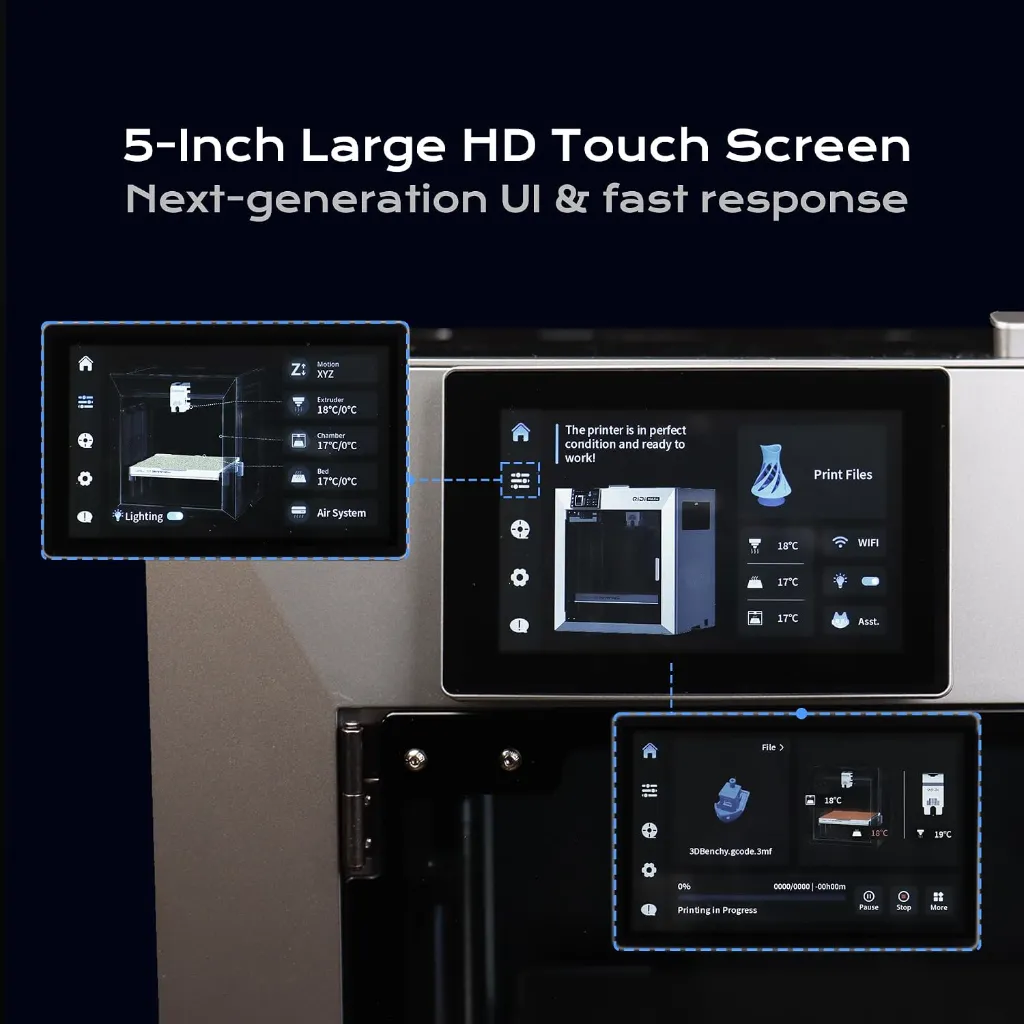

Connectivity 2.4GHz/5GHz Wi-Fi, Ethernet, USBDisplay Screen5 Inch 800*480 Touch Screen
SlicerQIDI Studio and other third-party software, such as Orca,PrusaSlicer etc.File Formats for Slicing STL, OBJ, 3MF,STEP,STP，etc.
