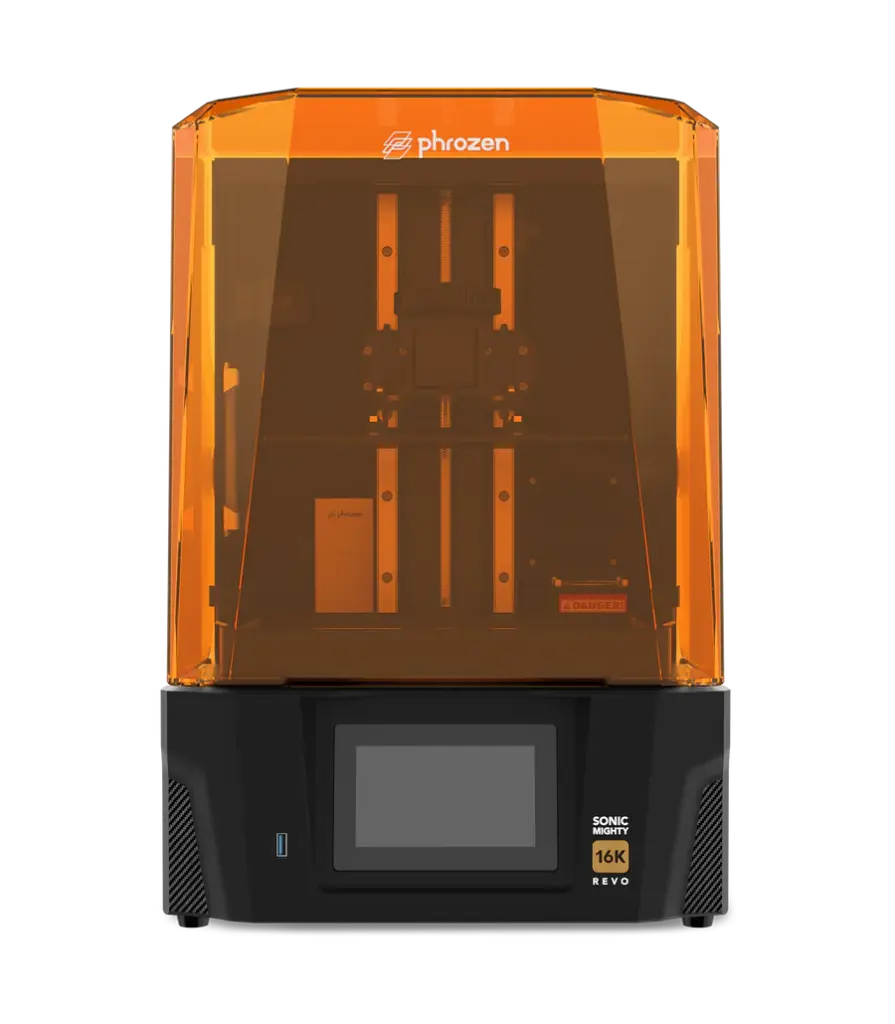

Phrozen Sonic Mighty Revo 16K 10.1-inch LCD 3D Printer
| Brand: Phrozen |
Phrozen Sonic Mighty Revo 16k
Technical specifications
- Screen resolution: 16K (monochrome LCD 10.1″)
- Working volume: 224 × 127 × 235 mm
- XY resolution: approx. 14 × 19 µm
- Layer thickness: 0.01–0.2 mm
- Print speed: up to 676 layers per hour
- Z-axis mechanics: dual linear guides + ball screw
- Heating system: yes, maintaining a temperature of ~30 °C
- Smart features: Smart Residue Detection, Smart Failure Detection, auto-levelling
- Connectivity: Wi-Fi, Ethernet, USB
- Device dimensions: 353 × 345 × 517 mm
- Weight: approx. 18 kg
- Power supply: AC 100–240 V, 50/60 Hz
- Warranty: standard manufacturer’s warranty (excluding consumables)

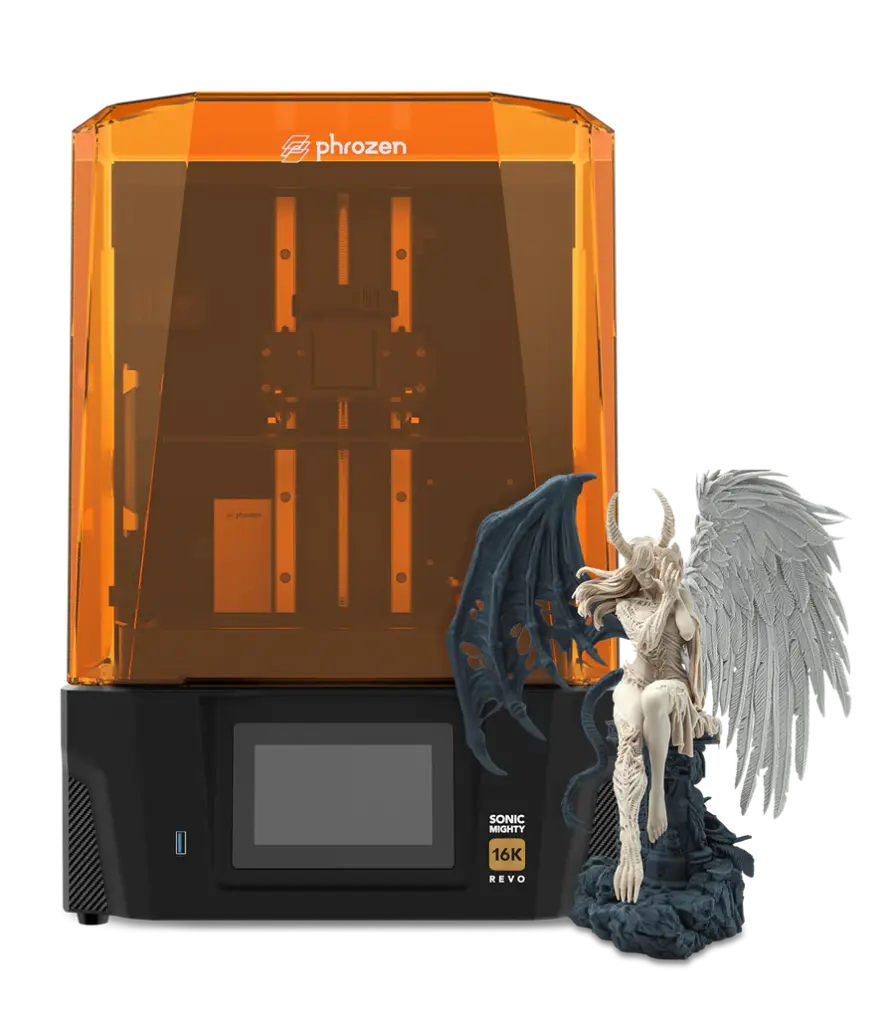

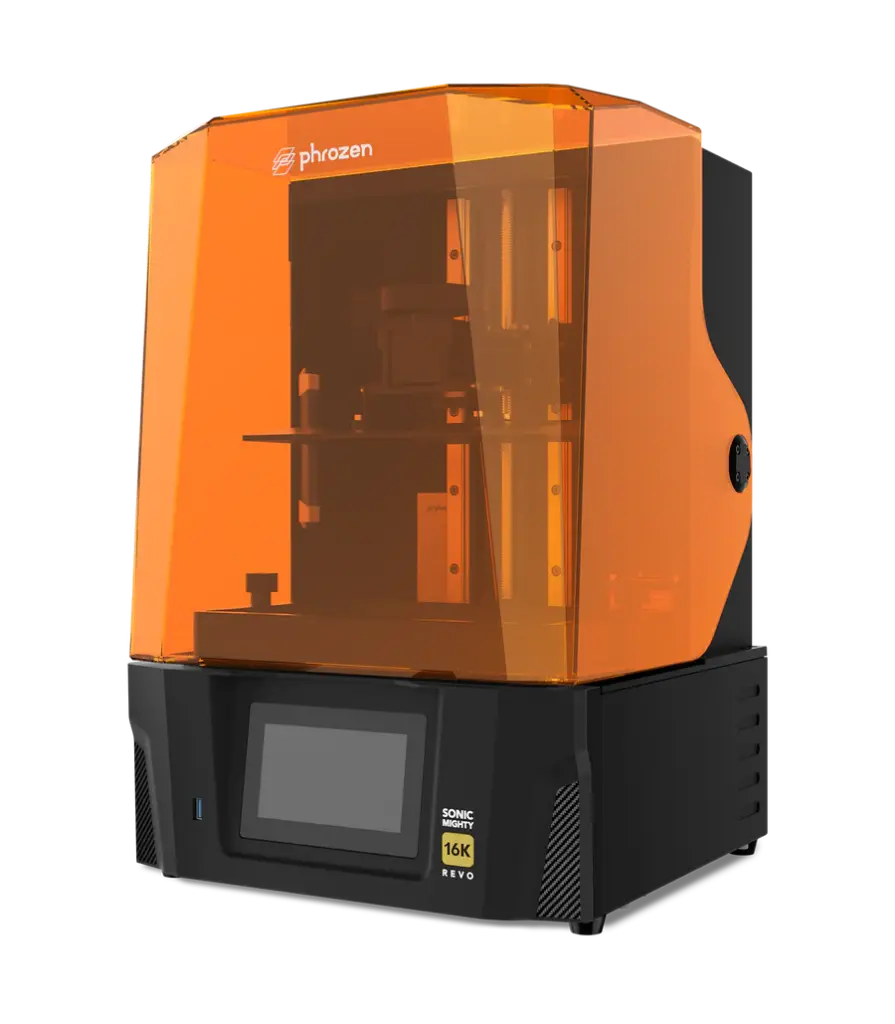

Phrozen Sonic Mighty Revo 16K Resin 3D Printer
Key technological features of the device
The new Phrozen Sonic Mighty Revo 16K is an advanced resin printer that combines ultra-high 16K resolution with intelligent monitoring and heating functions. Ideal for professionals who expect the highest print quality and stable operation.
16K screen and advanced backlighting
The model is equipped with a 10.1″ monochrome LCD screen with 16K resolution, allowing for exceptional reproduction precision. The ParaLED system ensures uniform exposure, resulting in consistent, sharp details across the entire working surface.
Chamber and resin heating
The built-in heating function maintains an internal temperature of approximately 30°C, which improves resin fluidity, layer adhesion and print stability. This system operates automatically while the device is in operation.
Mechanics and stability
The Phrozen Sonic Mighty Revo 16K features dual linear guides and a ball screw on the Z-axis, which ensure the highest print stability, eliminating misalignment and layer errors even with large, tall models.
Intelligent safety systems
The printer is equipped with Smart Residue Detection and Smart Failure Detection systems. The former detects resin residue on the platform, while the latter automatically stops printing when errors are detected.
Ergonomics and ease of use
The device has a folding roof, an integrated air purifier and an automatic work table levelling function. All this facilitates operation, reduces odour emissions and increases work safety.
Connectivity and remote control
The Phrozen Mighty Revo 16K supports Wi-Fi, Ethernet and USB connectivity. Thanks to integration with the Phrozen GO app, you can remotely monitor the printing process and receive notifications about its status.
Phrozen Sonic Mighty Revo 14K vs Revo 16K – Model comparison
| Parameter | Phrozen Sonic Mighty Revo 14K | Phrozen Sonic Mighty Revo 16K |
| Screen resolution | 14K (13392 x 5120 px) | 16K (15360 x 2560 px) |
| Screen size | 10.3 inches | 10.1 inches |
| XY resolution | 16 x 24 µm | 14 x 19 µm |
| Working volume | 223 x 126 x 235 mm | 224 x 127 x 235 mm |
| Levelling system | Manual levelling | Automatic levelling (auto-levelling) |
| Heating function | None | Yes, up to ~30°C |
| Residue detection (Smart Residue Detection) | No | Yes |
| Fault detection (Smart Failure Detection) | None | Yes |
| Air purifier | None | Built-in |
| Connectivity | USB | USB, Wi-Fi, Ethernet |
| Remote control | None | Yes (Phrozen GO App) |
| Weight | ~16.7 kg | ~18 kg |
| Z-axis guidance system | Dual linear guides | Double guides + ball screw |
| Cover positioning | Classic removable | Hinged cover (opens upwards) |
| Intended use | High resolution, fewer automatic functions | Professional automation and greater precision |
