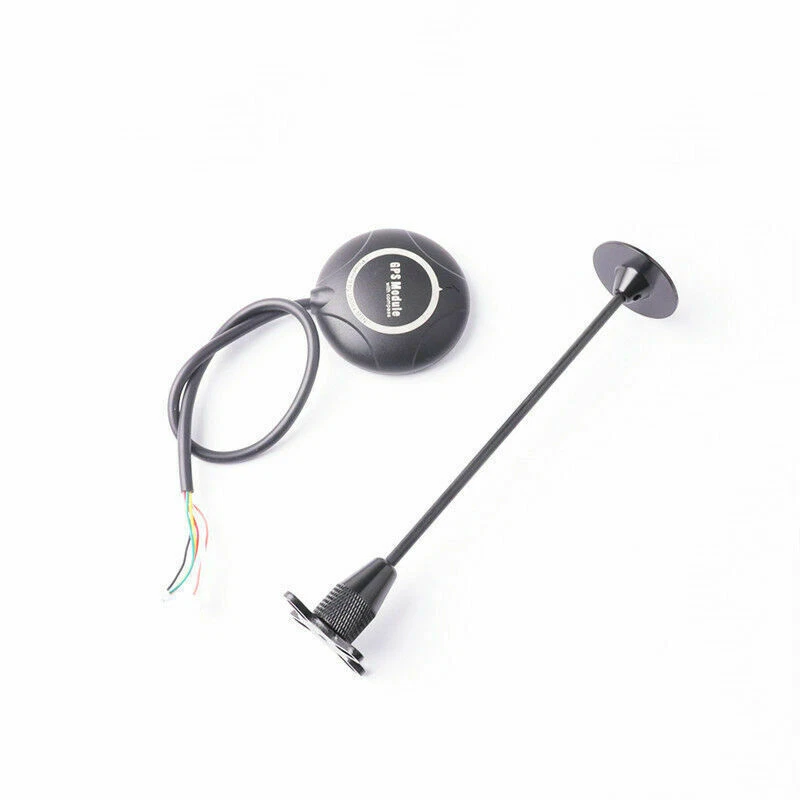

M8N GPS module with compass For PIXHAWK with GPS Stand in Pakistan
A new generation Ublox GPS NEO-M8N with low power consumption and high precision, the ultimate accuracy is 0.6 meters, exceeding the previous generation’s NEO-7N 1.4-1.6 meter accuracy. Supports GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode.
UBLOX NEO-M8N High Precision GPS Built-in Compass for APM Pixhawk
The M8N GPS module with compass is designed for high-precision navigation in PIXHAWK flight control systems. Featuring the advanced Ublox Neo-M8N module, it provides reliable GPS data with industry-leading sensitivity and fast cold start times. It includes a built-in compass for enhanced orientation and positioning accuracy. Key Features:
- Ublox Neo-M8N module with high navigation sensitivity
- Quick cold starts in 26 seconds
- Low noise 3.3V regulator
- Includes fix indicator LEDs and a protective case
- Comes with a 26cm cable
- Compact size: 50mm diameter, 32 grams with case
Technical Specifications:
- GPS Module: Ublox Neo-M8N
- Navigation Sensitivity: –167 dBm
- Cold Start Time: 26 seconds
- Current Consumption: <150mA @ 5V
- Antenna: 25 x 25 x 4 mm ceramic patch
- Cable Length: 26 cm
- Dimensions: 50 mm diameter
- Weight: 32 grams
Applications: Used in PIXHAWK flight control systems for drones and other UAVs requiring precise GPS navigation. Usage: Connect the module to the PIXHAWK system via the included cable. Ensure proper calibration and positioning for optimal performance. Caution: Handle with care to avoid damage to the delicate components. Follow installation instructions carefully.
