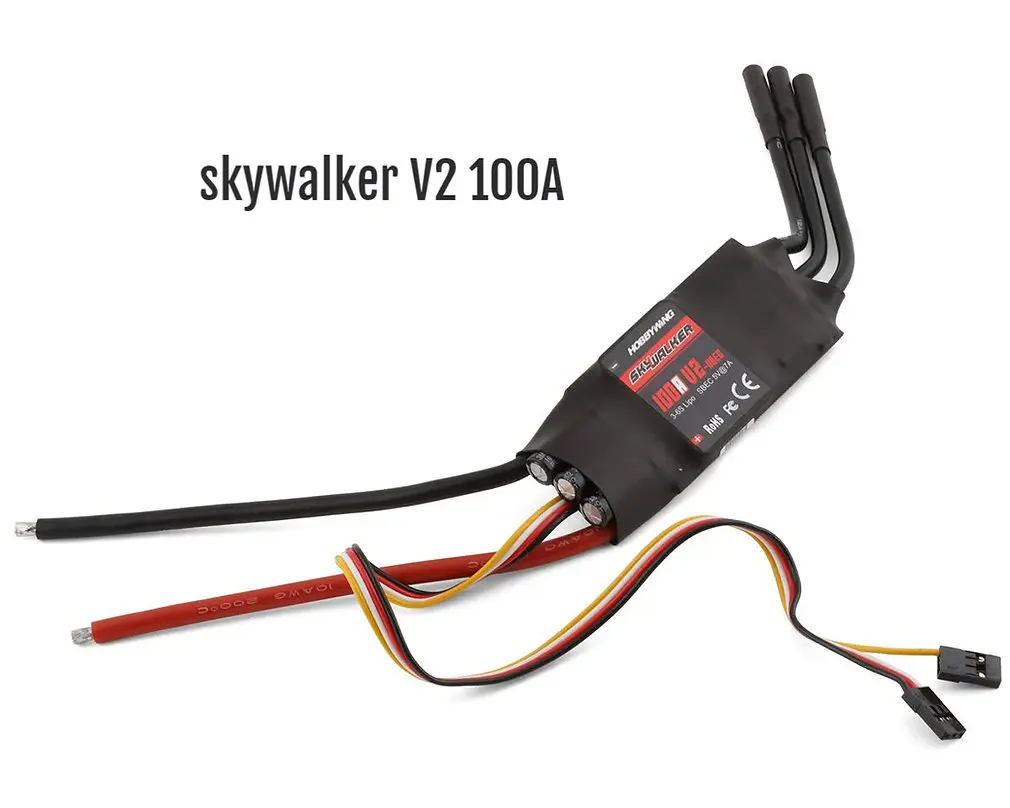

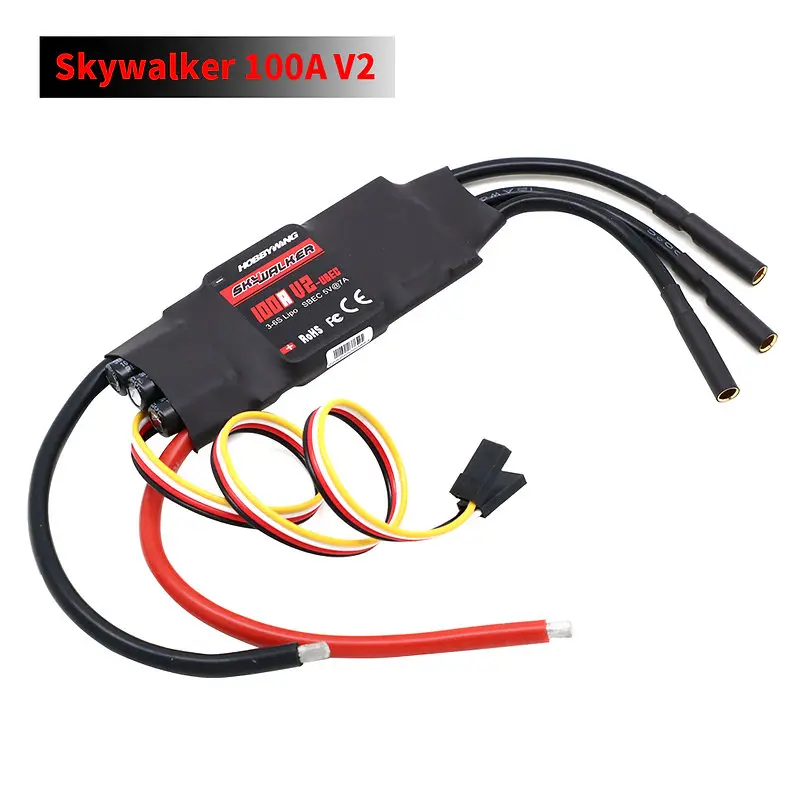

Skywalker 100A V2 ESC Features:
- High-performance 32-bit ARM MO
- Processor running up to 96MHz
- Support maximum speed up to 300,000 RPM(2-pole motor)
- High quality, and reliability makes
- With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft.
- Multiple Protections
- Multiple protection features include abnormal input voltage,ESC thermal, throttle signal loss (or Fail Safe),and low voltage cutoff effectively prolongs the life of the ESC.
Product Specifications:
- Item Name: SkyWalker 100A V2 UBEC
- Type: Brushless ESC,Regular voltage
- Cont./Peak Current: 100A/120A
- Input: 3-6S LiPo,11.1-18s Ni-MH
- BEC Output: Switch Mode--5V,7A
- Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1
- Output Wires: Black-14AWG-100mm*3
- Input Connectors: NO
- Output Connectors: NO
- ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire)
- Firmware Upgrade: Not Supported
- Size: 85.0x36.0x9.0mm
- Weight: 79g
- Backward thrust:YES
Includes:
1 x Hobbywing Skywalker 100A V2 ESC
