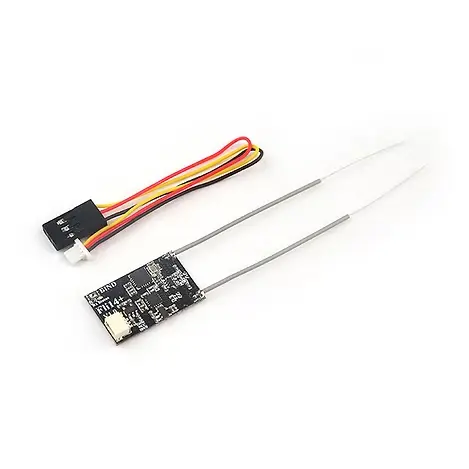

Flysky Fli14+ Mini Receiver

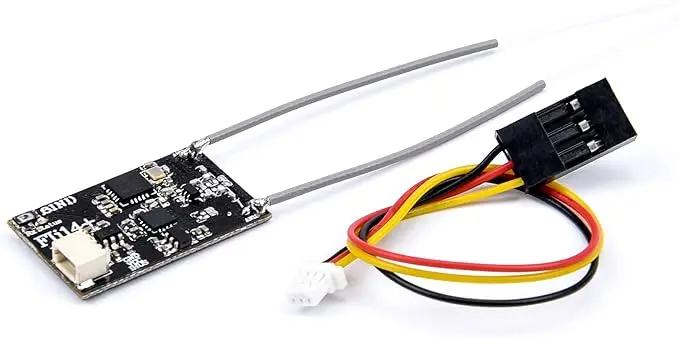

- Fli14+ 2.4G 14CH receiver small and lightweight,best for racing drone.
- RSSI Display Via OSD without any hack compatible with all Flysky AFHDS-2A protocol transmitter.
- Compatible with FS-i4, FS-i6,FS-I6X,FS-i6S, FS-i10,FS-iT4S, Eachine I6,Turnigy I6S, Turnigy Evolution and nirvana nv14.
- Telemetry Output: RSSI & RX Battery.
- Customized for Betaflight,Support RSSI Via Channel14 (Aux10 in Betaflight)
| Brand: FLYSKY |
Fli14+ 14CH Mini Receiver 2A with RSSI Output IBUS Micro FPV Receiver for Flysky AFHDS-2A for FS i6 i10 i6x Turnigy I6S RC Remote Controller
Binding procedure:
1. Power for the Fli14+ Receiver while press and holding the bind button
2. The LED will blinking fast , which indicates the receiver is in binding mode
3. Get the Flysky transmitter into binding mode and the LED on the receiver will getting to be solid and this indicates binding successfully
Specification:
| Model: | Fli14+ |
| Channel: | 14CH |
| Protocol: | AFHDS-2A |
| 2.4G Mode: | The second generation of an enhanced version of the automatic FM digital system |
| Antenna Length: | 70mm (Dual Antennas) |
| Input Voltage: | 4-6.5V DC |
| Weight: | Only 1.7g |
| Size: | 25x15x5mm |
| Signal Outpu: | IBUS |
| RSSI Output: | Channel14 |
