Zero Waste
500% Faster
Fully Enclosed & Actively Controlled
FlashSwap™
Next-Gen FDM Printing, Powered by Interchangeable Multi-Nozzles
and Smart Workflow.
Why Choose Creator 5 Pro?

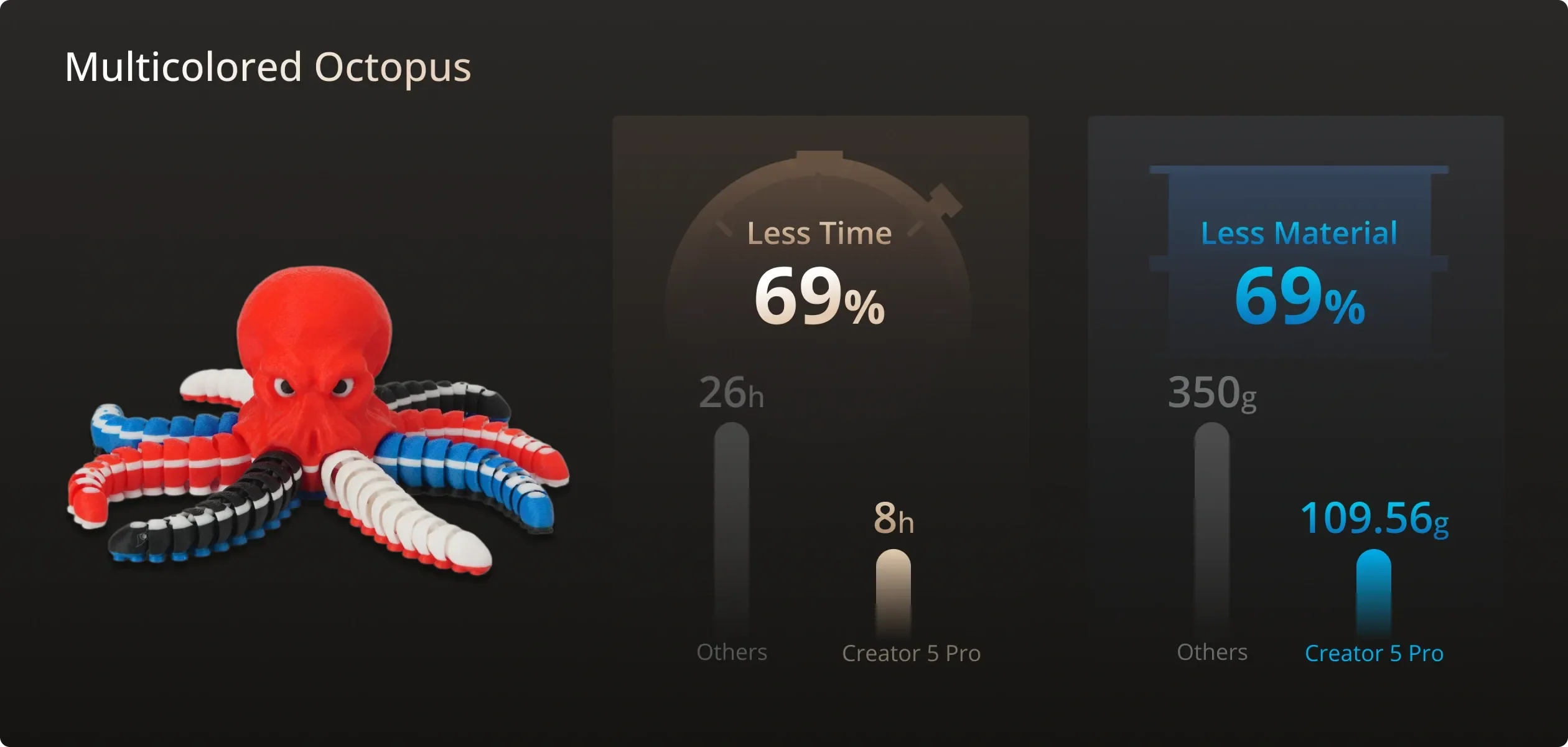

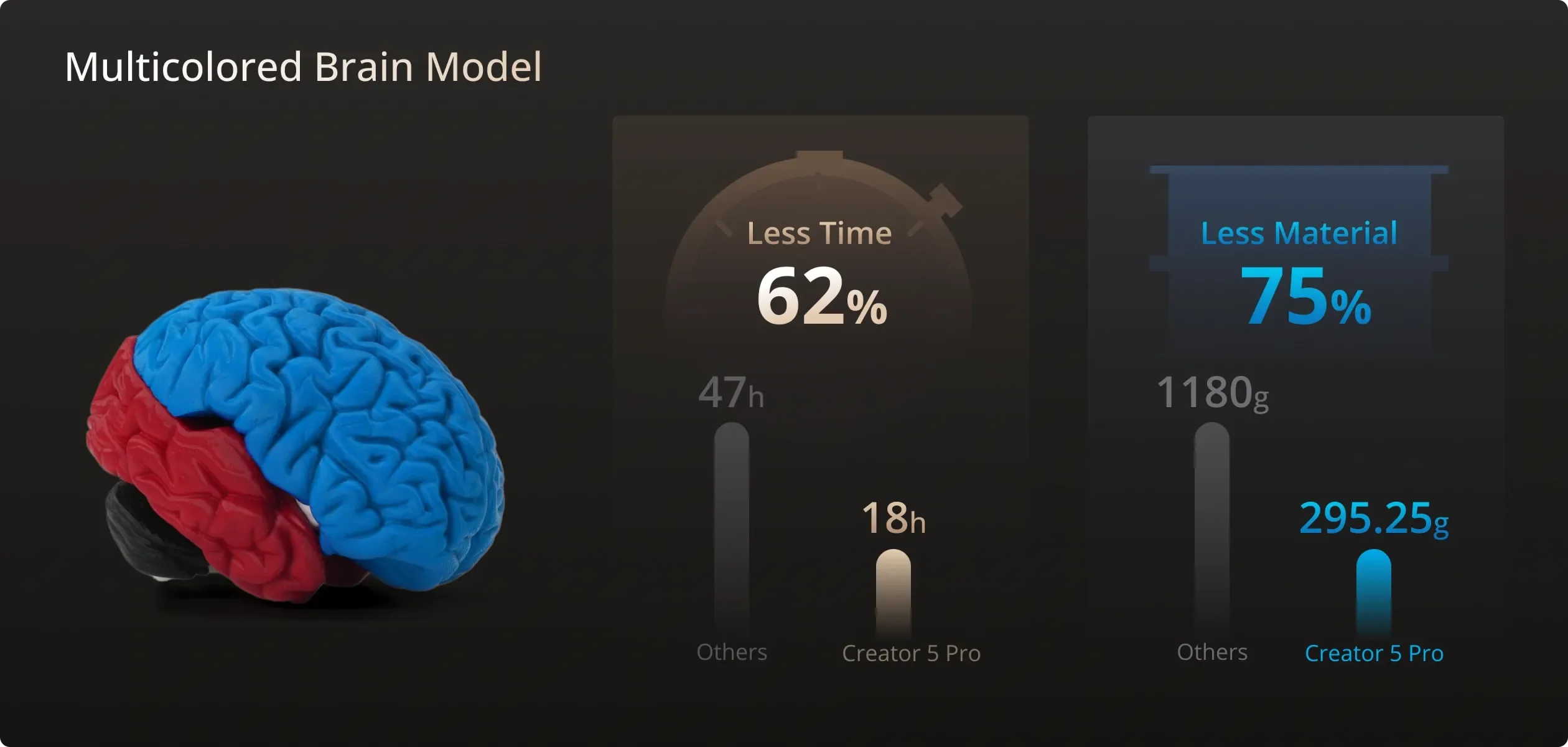

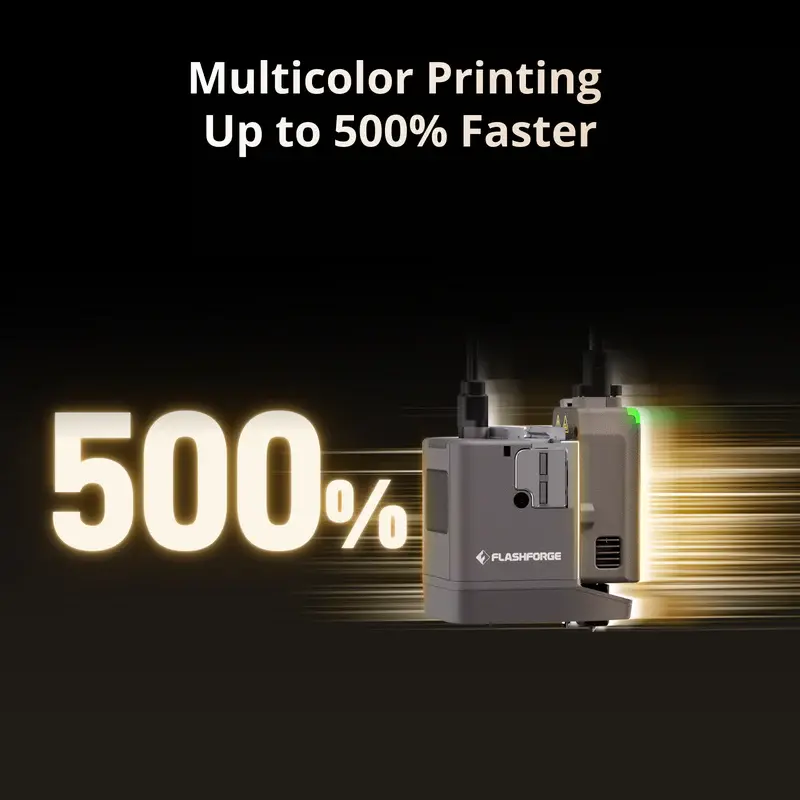

Multicolor Printing Up to 500% Faster
Zero Purge Waste During Material Switching
Professional-Grade Upgrades
All-in-One Protection

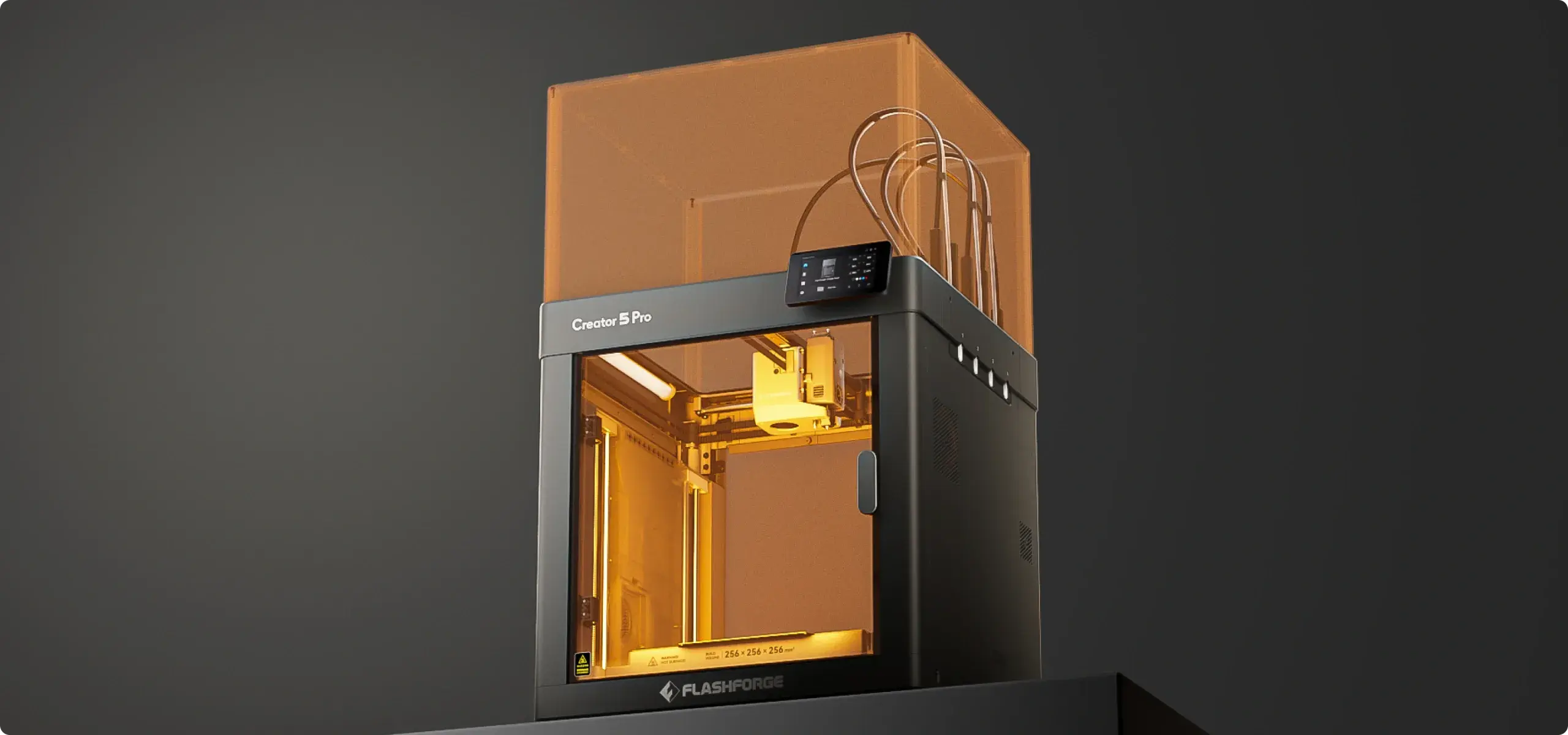

Safe, Quiet, and Stable Printing—Every Time
Our fully enclosed design keeps you, your printer, kids, and pets safe, while controlling fumes and reducing
noise from 65 dB to 55 dB. The stable temperature ensures smoother layers and consistently high-quality prints.
Near-Zero Waste. Maximum Output
Heating Mode
Rapidly heats to 65°C with precise control
Eliminates warping & cracking for ABS, ASA, PC & PA — ensuring perfect dimensional accuracy.

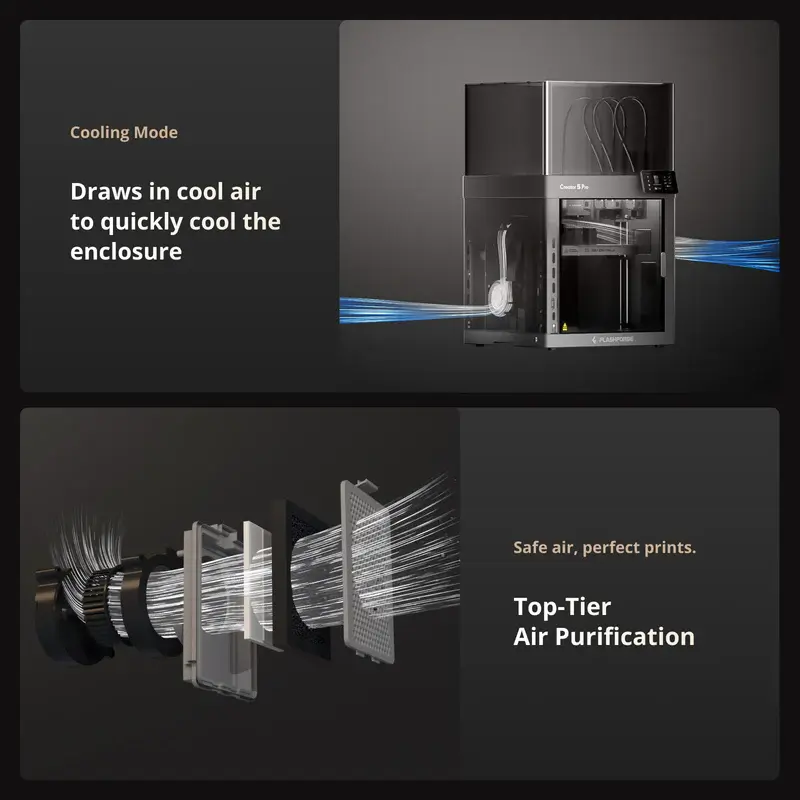

Cooling Mode
Draws in cool air to
quickly cool the enclosure
Perfect for PLA, TPU, PETG & PLA-CF — warp-free printing with the door closed.
Safe air, perfect prints.
Top-Tier
Air Purification
Featuring H13 HEPA (medical grade) and premium Coconut Carbon. Eliminates dust & VOCs released by ABS, ASA, and Nylon.
Multi-Material
Structures
In A Single Pass
Accelerate your workflow by combining
distinct material properties in one seamless
print job.
Features

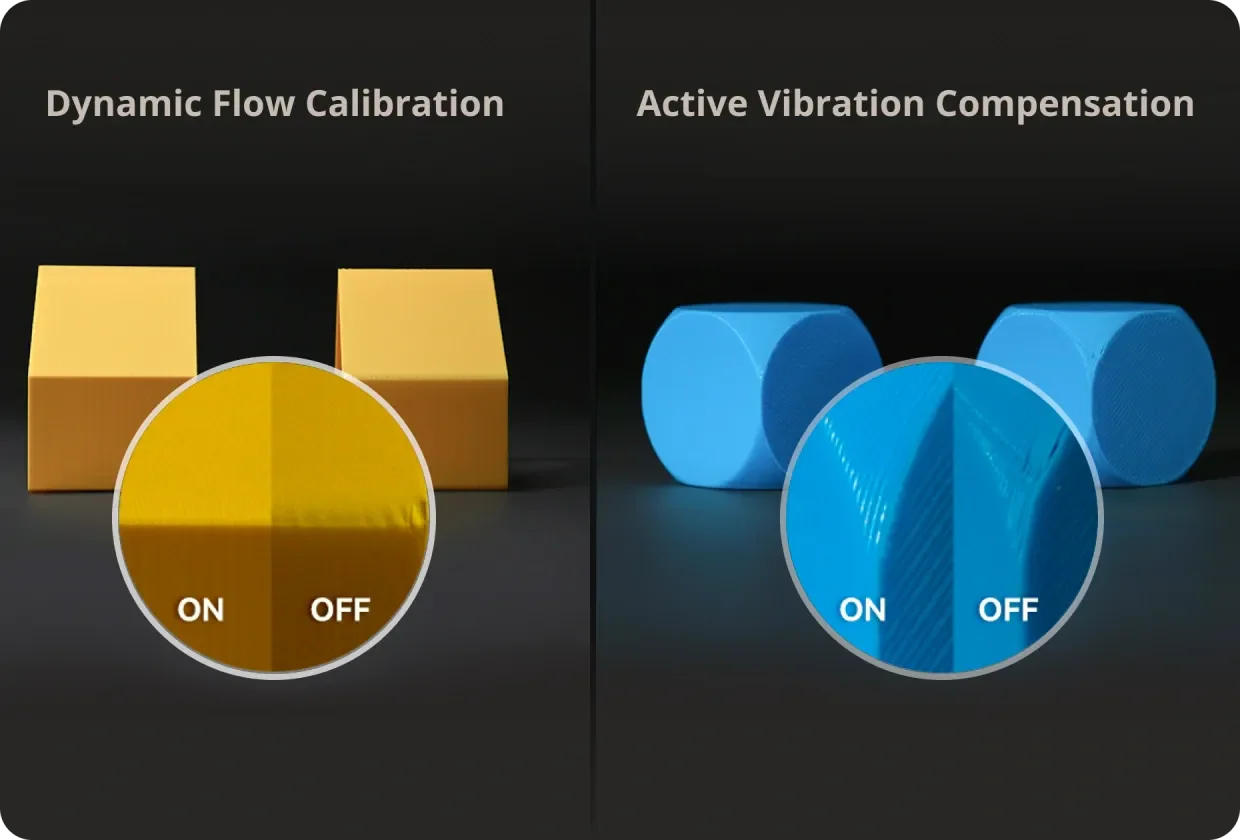

Flawless Surfaces,
Enabled by Auto-Compensation

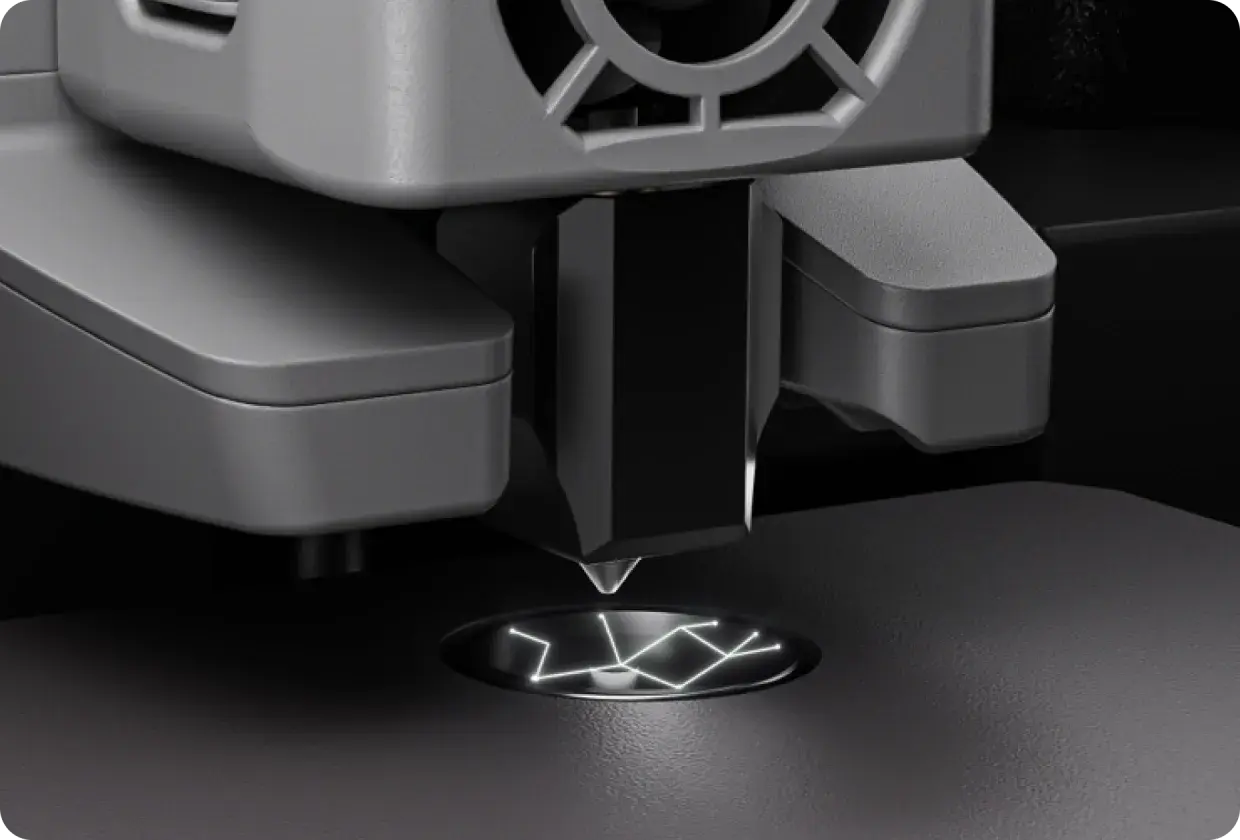

Fully Automatic Multi-
Toolhead Offset Calibration
Versatile Solutions for Every Creator

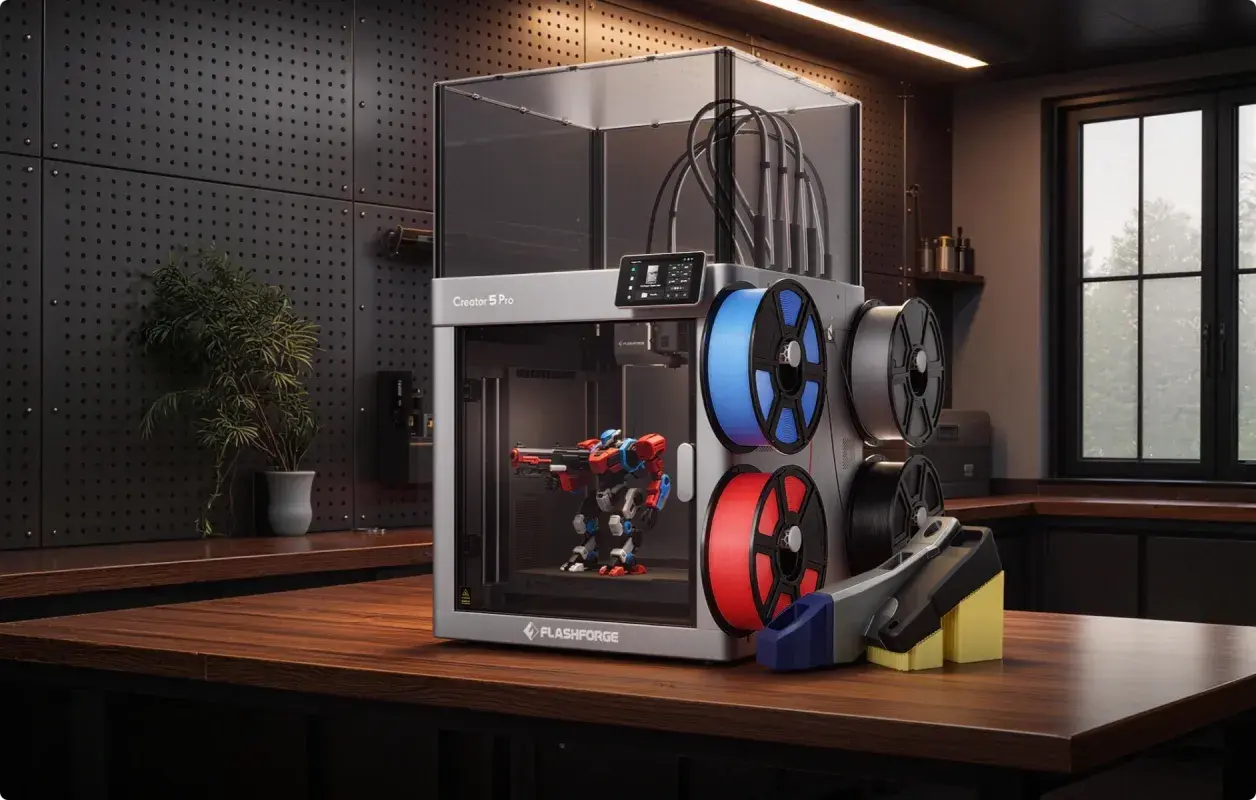

Makers
Families
Education
Engineering Design
Specifications

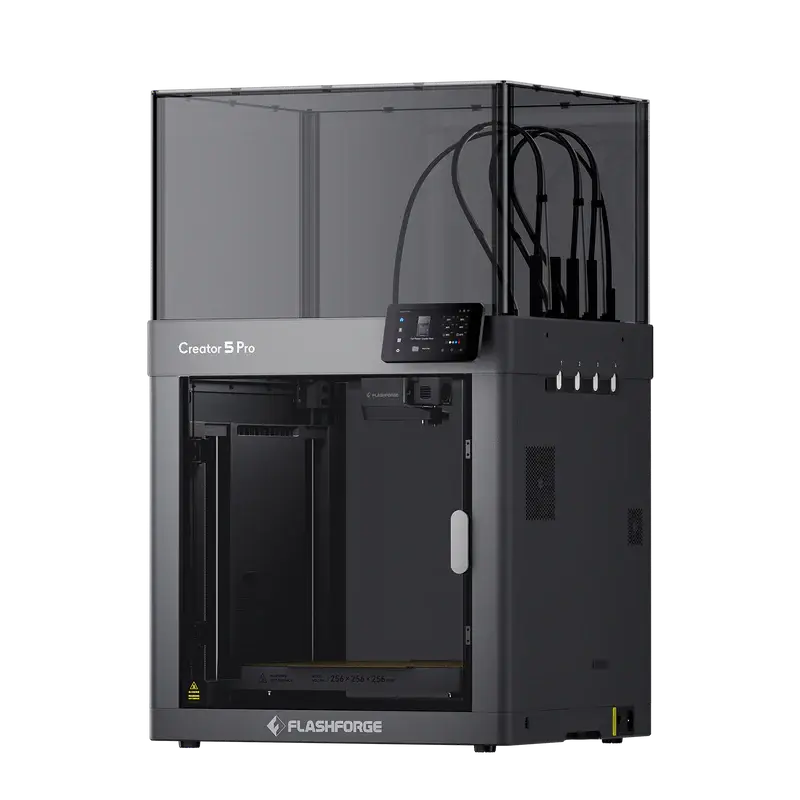

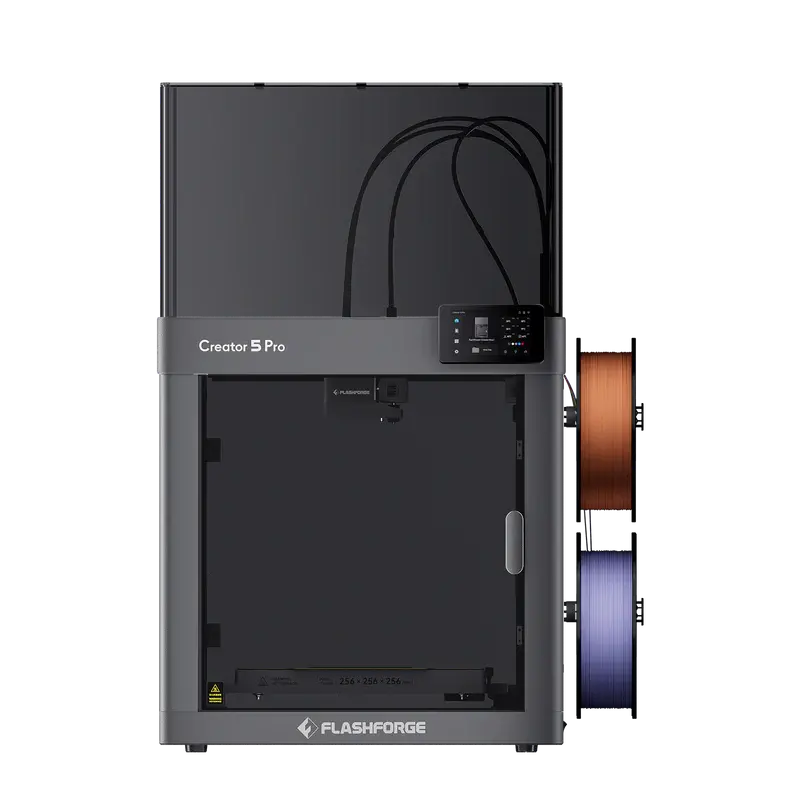

Creator 5 Pro
Extruder Quantity
| 4 Independent Toolheads
| Max Bed Temp
| Max. 120 °C
|
Build Volume | 256 × 256 × 256 mm | Build Plate
| PEI Flexible Steel Build Plate (Textured)
|
Layer Thickness | 0.1 - 0.4 mm | Auto Leveling | ✓ (Automatic) |
Maximum Flow Rate
| 32 mm³/s
| Max Extruder Temp
| 320 °C
|
Nozzle Diameter
| 0.4 mm (Standard) 0.25 mm / 0.6 mm / 0.8 mm | Removable Nozzle
| ✓
|
Display | 4-inch 800 × 480 Full-Color Touchscreen
| Dynamic Flow Calibration
| ✓ (Auto PA Calibration)
|
Recommended Filaments
| PLA、PETG、TPU-90A (Top external mount)、TPU-95A、TPU-64D、PLA-CF、PETG-CF、SILK、PVA、BVOH | Filament Detection
| ✓ (Run-out Sensor)
|
Supported Filaments with Enclosure
| ABS、ASA、HIPS、ABS-GF、PA-CF、ASA-CF、ASA-GF、S-Multi、S-PAHT、PET-CF、PAHT-CF、PPA-CF、PPS-CF | Power Outage Recovery
| ✓
|
Travel Speed
| Max. 600 mm/s
| Chamber Lighting
| ✓
|
Print Speed
| Max. 300 mm/s
| Remote Monitoring
| ✓ (Built-in Full HD Camera, 1280*720 @ 30 fps)
|
Acceleration | Max. 30,000 mm/s²
| Multi-Printer Management
| ✓
|
Connectivity | USB / WiFi
| WiFi | 2.4 GHz / 5 GHz Wi-Fi
|
Compatible Slicing Software
| Orca-Flashforge, OrcaSlicer
| One-Touch Power On/Off
| ✓ |

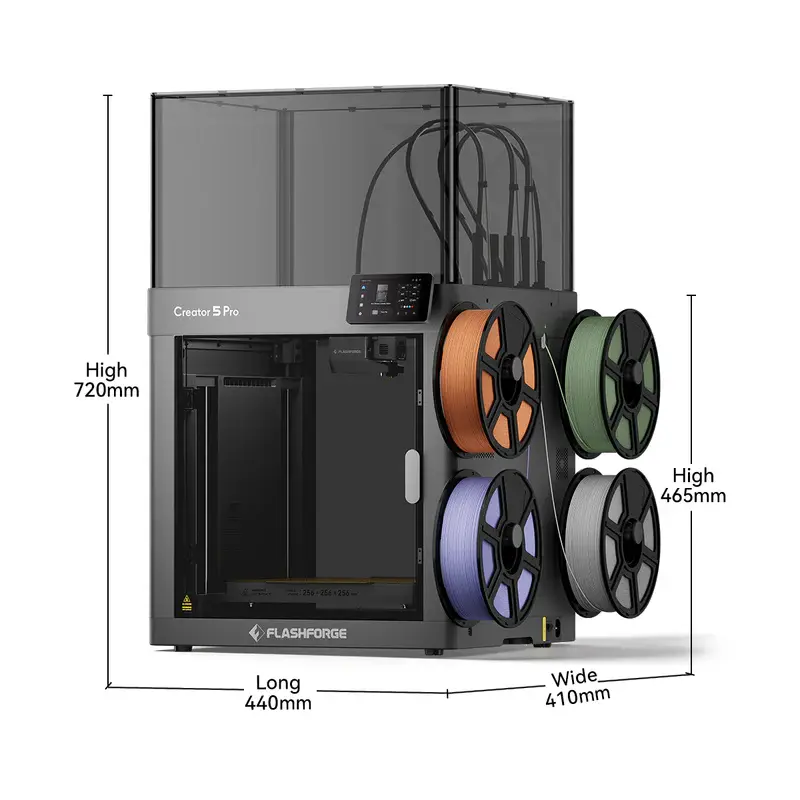

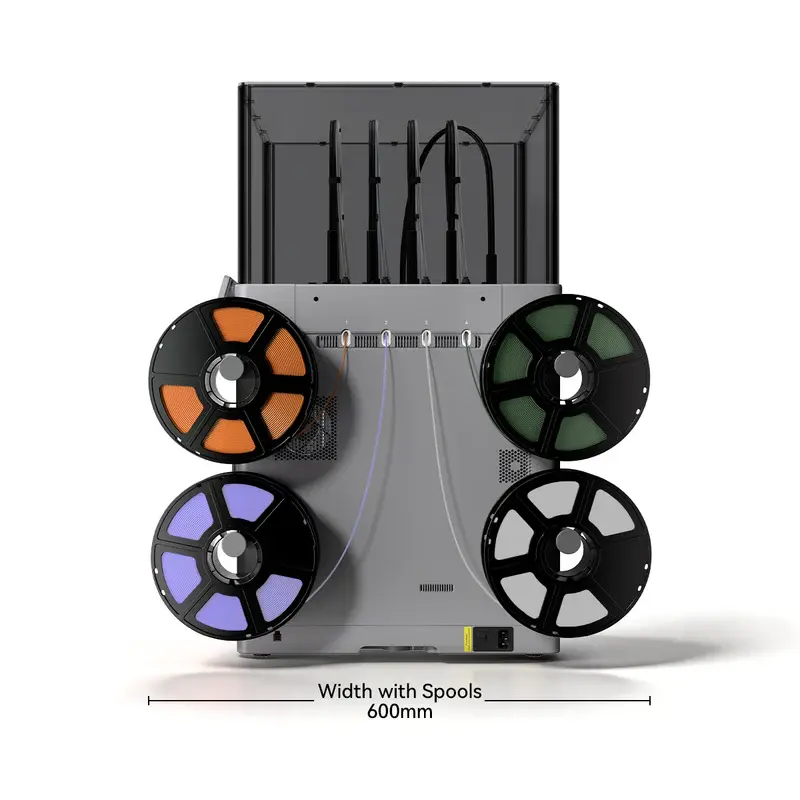

Printer Size
| 520 × 443 × 710 mm（including filament tube and filament holders） 436 × 432 × 480 mm（without filament tube and filament holders） | Weight
| Net: 14kg ; Gross:18kg
|
Input | Input: 100~120V/200~240V AC ，50/60Hz 700W | Structure | Open Frame Design
|
Active Chamber Heating
| Supported (Max 65 °C)
| Air Filtration
| HEPA13 Filter + Activated Carbon
|
Door Detection
| Supported (Front Door & Top Cover)
| Auxiliary Cooling
| Supported (Auxiliary Cooling Fan)
|
Packing List
FAQ
The Creator 5 features filament runout and tangle detection, while the Creator 5 Pro adds door-open detection and chamber temperature monitoring for enhanced safety and stability.
- Left and rear sides: At least 10 mm
- Right side: 200 mm
- Front: 500 mm
Yes, the Creator 5 series supports dual-band 5G/2.4G Wi-Fi networks.
