Print Up to
500% Faster
Near-Zero Waste
Creator 5
Less Waiting, Zero Wait

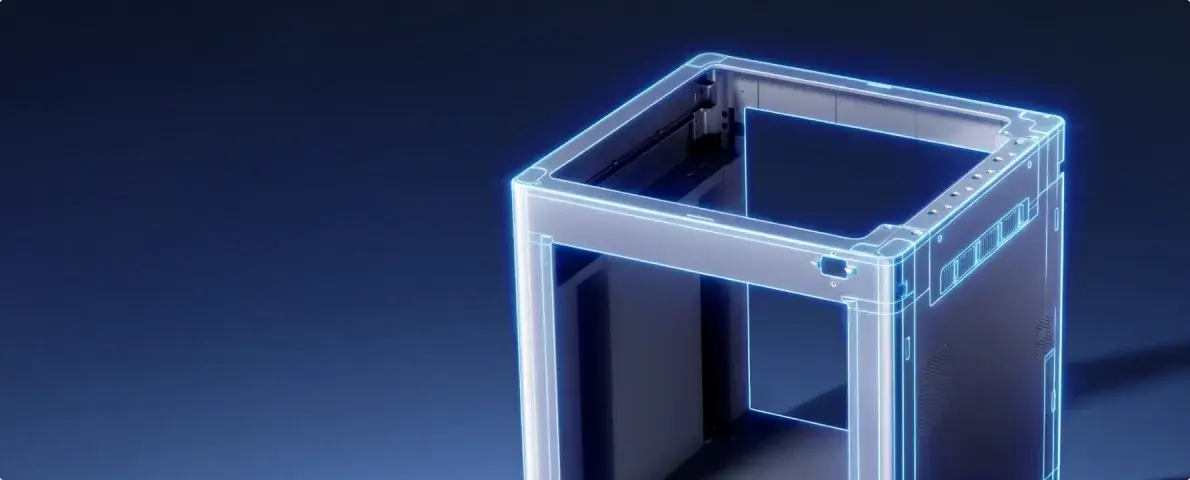

More Stable
FlashSwap
Next-Gen FDM Printing, Powered by Interchangeable Multi-Nozzles
and Smart Workflow.

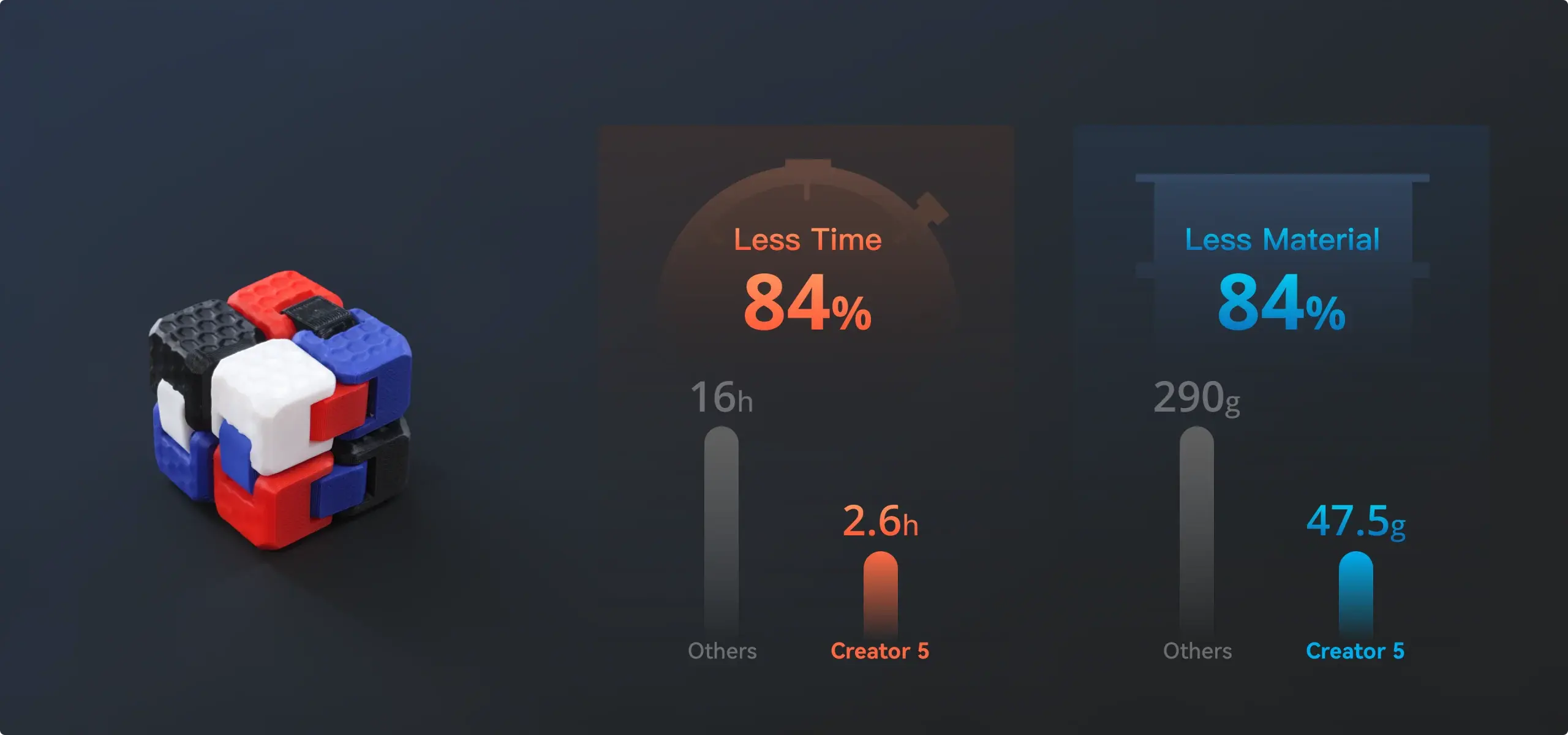

Multicolor Printing Up to 500% Faster
Zero Purge Waste During
Material Switching
Near-Zero Waste. Maximum Output.

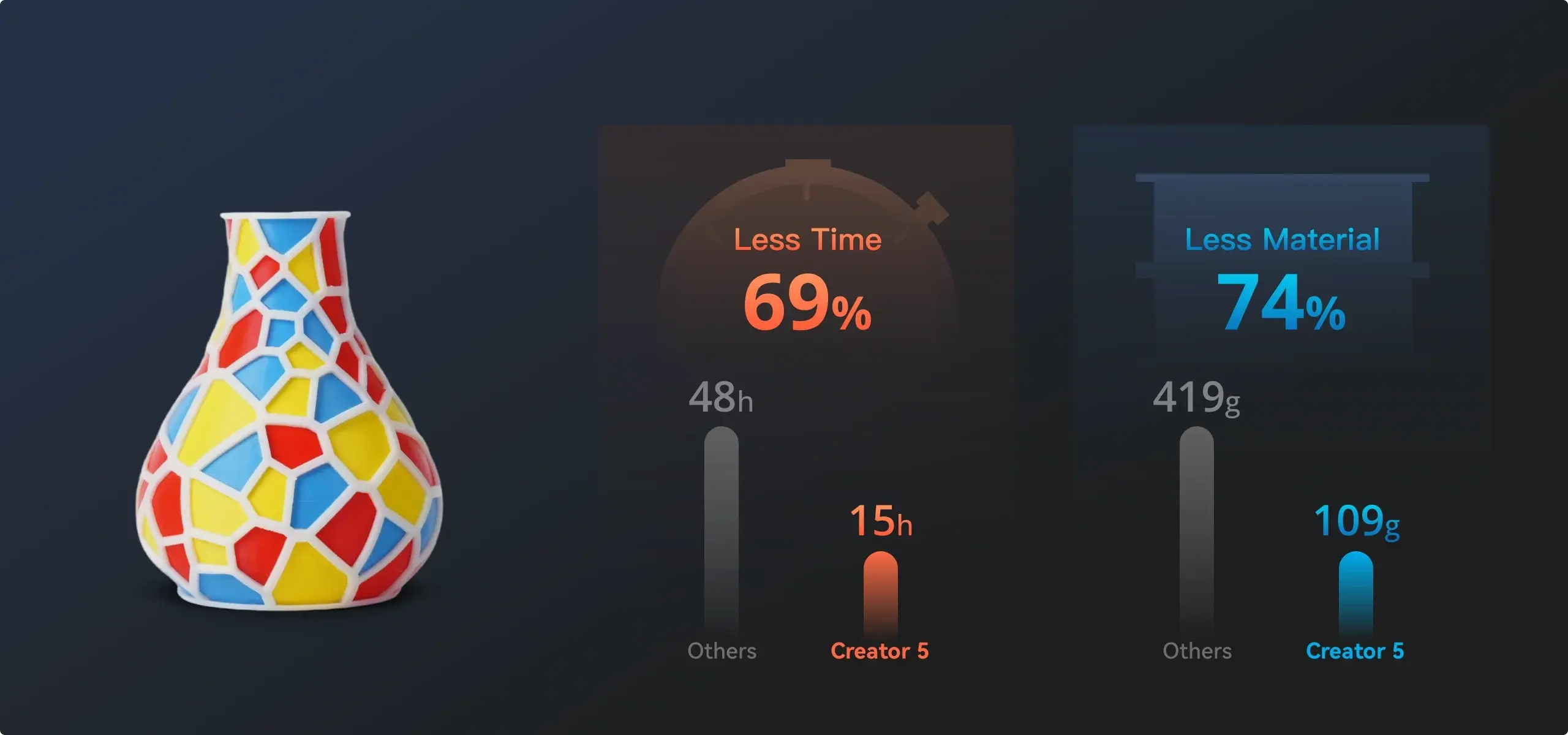

Mosaic Color Block Vase

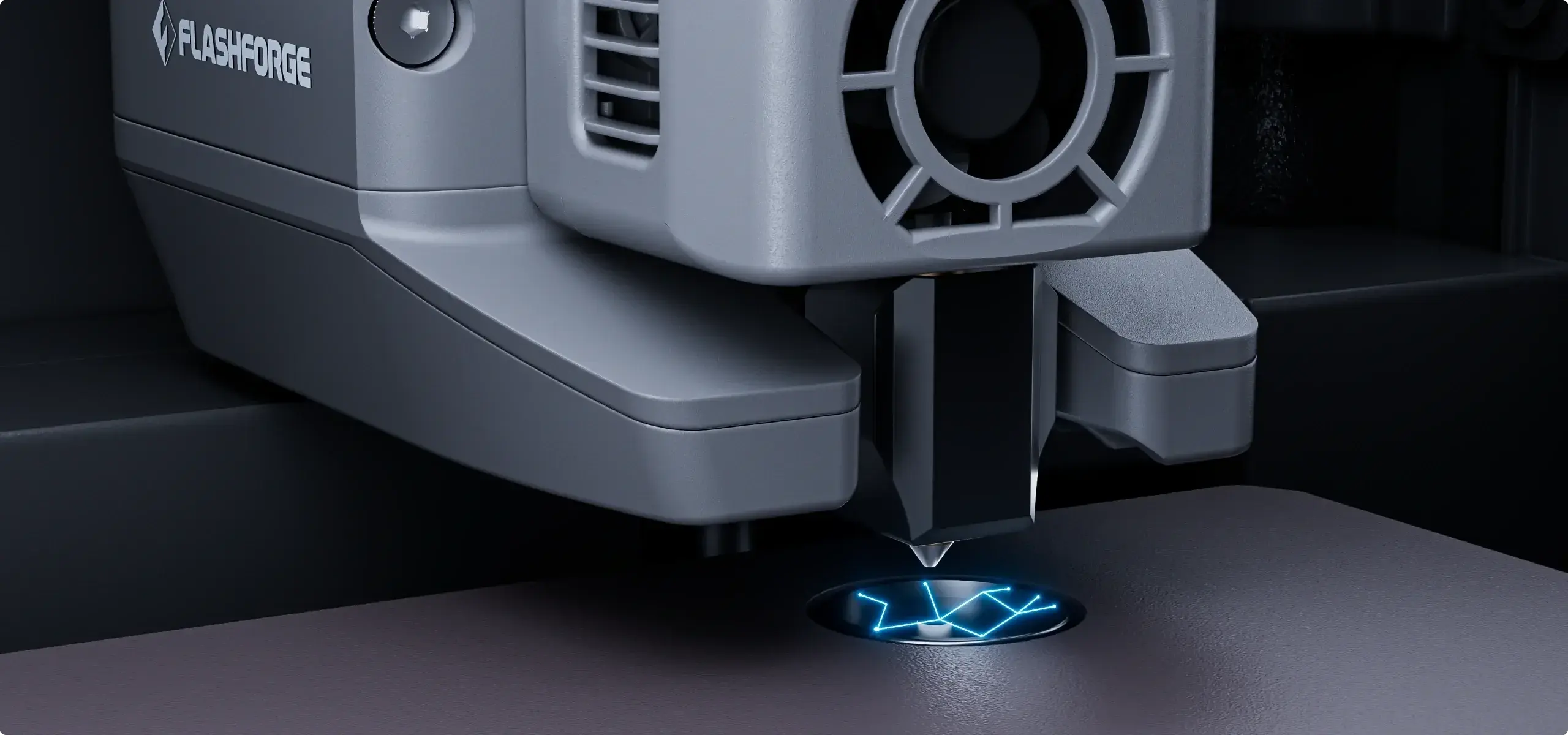

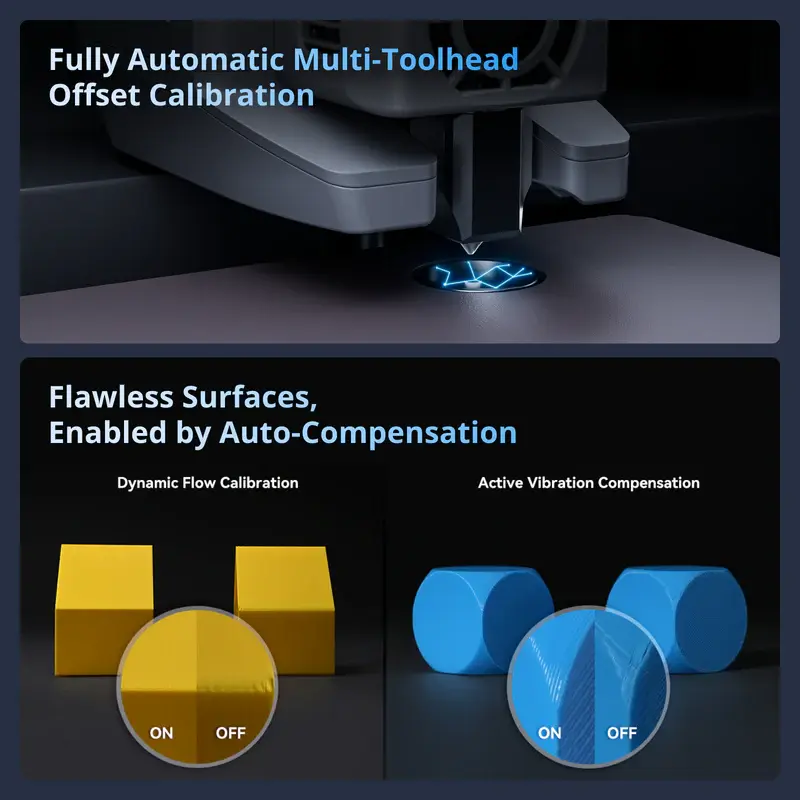

Fully Automatic Multi-Toolhead Offset Calibration

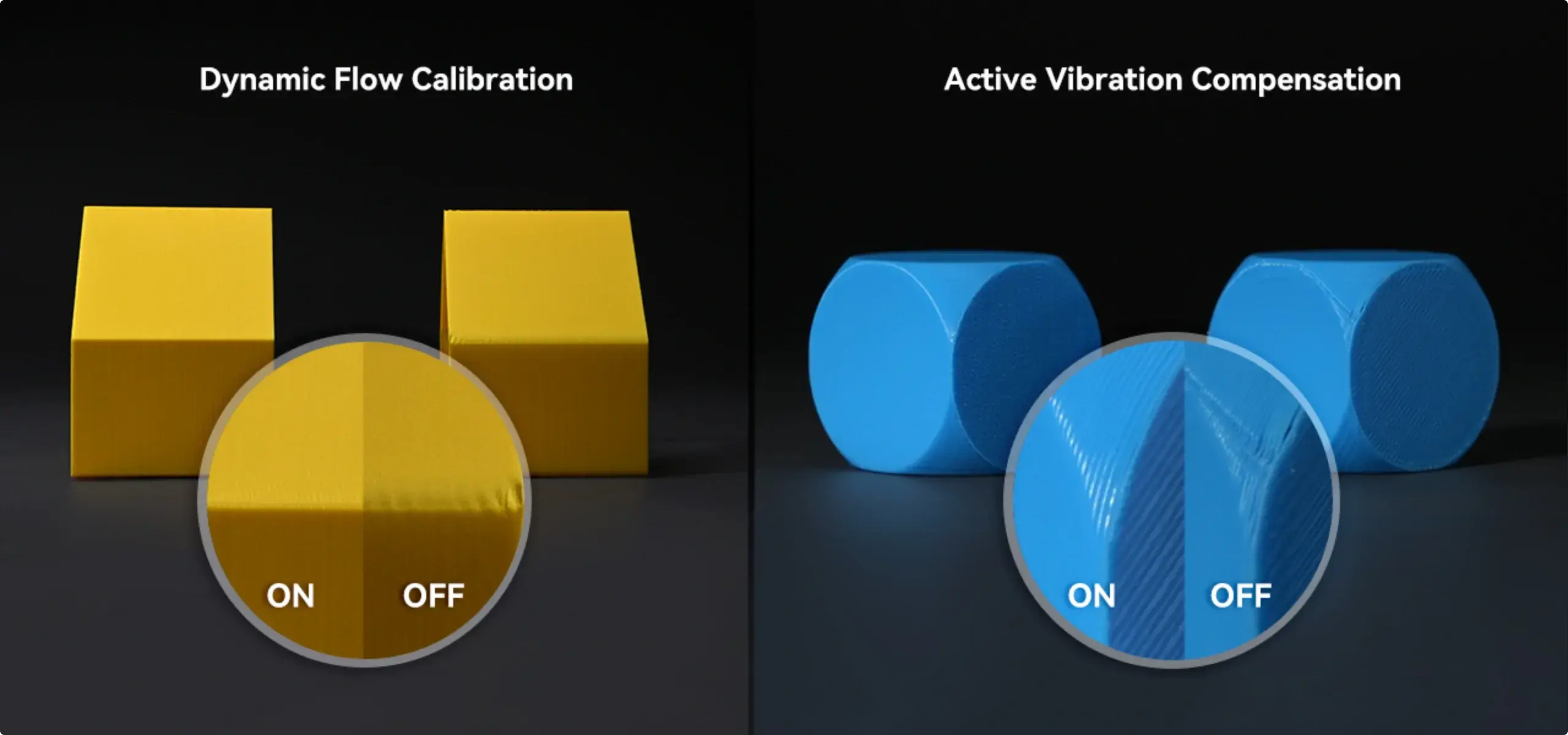

Flawless Surfaces, Enabled by Auto-Compensation
Flawless Surfaces, Enabled by Auto-Compensation
Features
Features
Makers
Families
Education

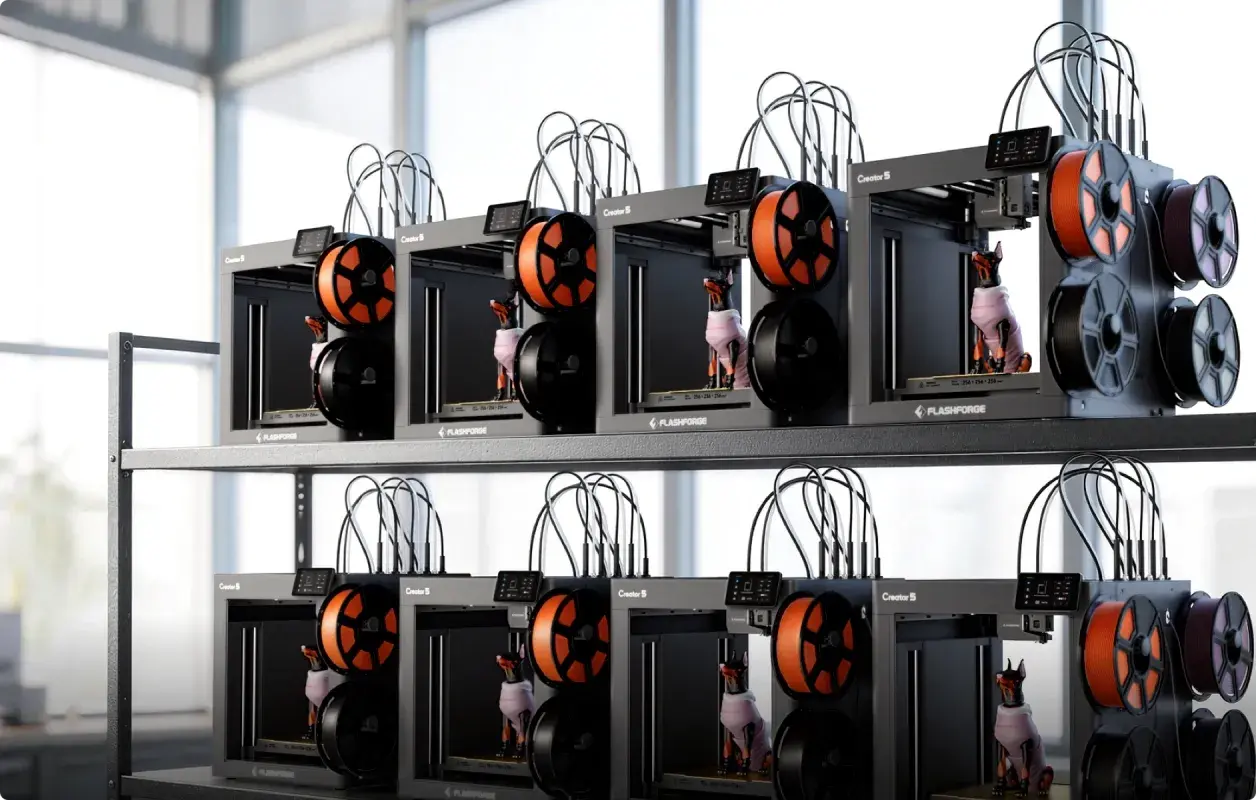

3D Print Farm
Specifications

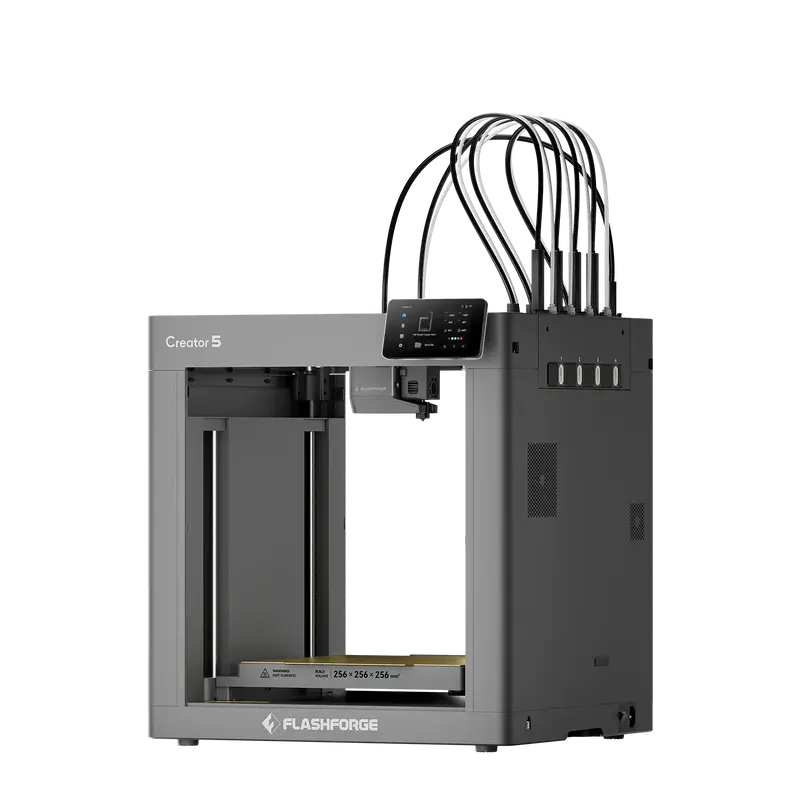

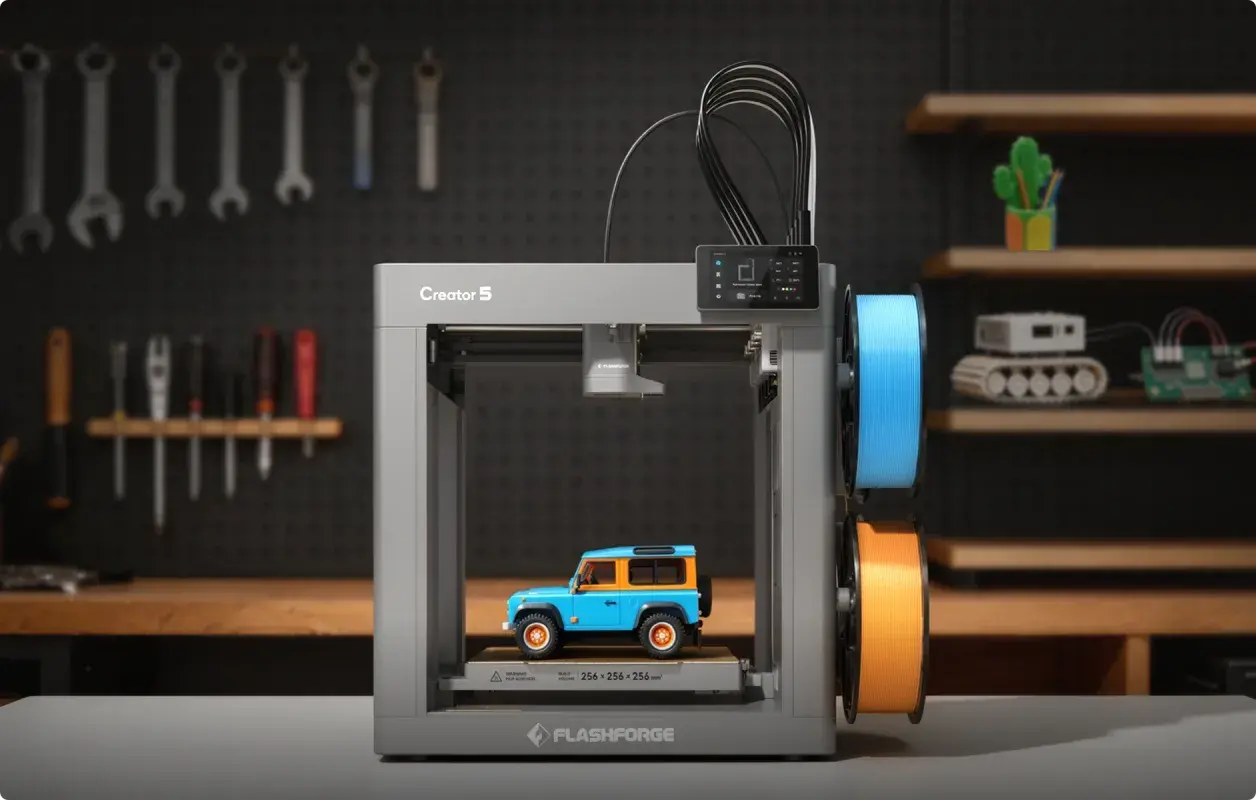

Creator 5
Extruder Quantity
| 4 Independent Toolheads
| Max Bed Temp
| Max. 120 °C
|
Build Volume | 256 × 256 × 256 mm | Build Plate
| PEI Flexible Steel Build Plate (Textured)
|
Layer Thickness | 0.1 - 0.4 mm | Auto Leveling | ✓ (Automatic) |
Maximum Flow Rate
| 32 mm³/s
| Max Extruder Temp
| 320 °C
|
Nozzle Diameter
| 0.4 mm (Standard) 0.25 mm / 0.6 mm / 0.8 mm | Removable Nozzle
| ✓
|
Display | 4-inch 800 × 480 Full-Color Touchscreen
| Dynamic Flow Calibration
| ✓ (Auto PA Calibration)
|
Recommended Filaments
| PLA、PETG、TPU-90A (Top external mount)、TPU-95A、TPU-64D、PLA-CF、PETG-CF、SILK、PVA、BVOH | Filament Detection
| ✓ (Run-out Sensor)
|
Supported Filaments with Enclosure
| ABS、ASA、HIPS、ABS-GF、PA-CF、ASA-CF、ASA-GF、S-Multi、S-PAHT、PET-CF、PAHT-CF、PPA-CF、PPS-CF | Power Outage Recovery
| ✓
|
Travel Speed
| Max. 600 mm/s
| Chamber Lighting
| ✓
|
Print Speed
| Max. 300 mm/s
| Remote Monitoring
| ✓ (Built-in Full HD Camera, 1280*720 @ 30 fps)
|
Acceleration | Max. 30,000 mm/s²
| Multi-Printer Management
| ✓
|
Connectivity | USB / WiFi
| WiFi | 2.4 GHz / 5 GHz Wi-Fi
|
Compatible Slicing Software
| Orca-Flashforge, OrcaSlicer
| One-Touch Power On/Off
| ✓ |
Printer Size
| 520 × 443 × 710 mm（including filament tube and filament holders） 436 × 432 × 480 mm（without filament tube and filament holders） | Weight
| Net: 14kg ; Gross:18kg
|
Input | Input: 100~120V/200~240V AC ，50/60Hz 700W | Structure | Open Frame Design
|
What's in the Box
FAQ
Print head offset calibration is required in the following situations:
- Initial printer setup
- Hotend replacement
- Nozzle scraping against the heat bed or other components/models
- Offset issues during multi-color/multi-material printing
The calibration process typically takes about 15–20 minutes.
The C5 series printers offer three printing modes. In silent mode, the noise level can be controlled below 55 dB.
Print head offset calibration is required in the following situations:
- Initial printer setup
- Hotend replacement
- Nozzle scraping against the heat bed or other components/models
- Offset issues during multi-color/multi-material printing
The calibration process typically takes about 15–20 minutes.
- Left and rear sides: At least 10 mm
- Right side: 200 mm
- Front: 500 mm
Yes, the Creator 5 series supports dual-band 5G/2.4G Wi-Fi networks.
