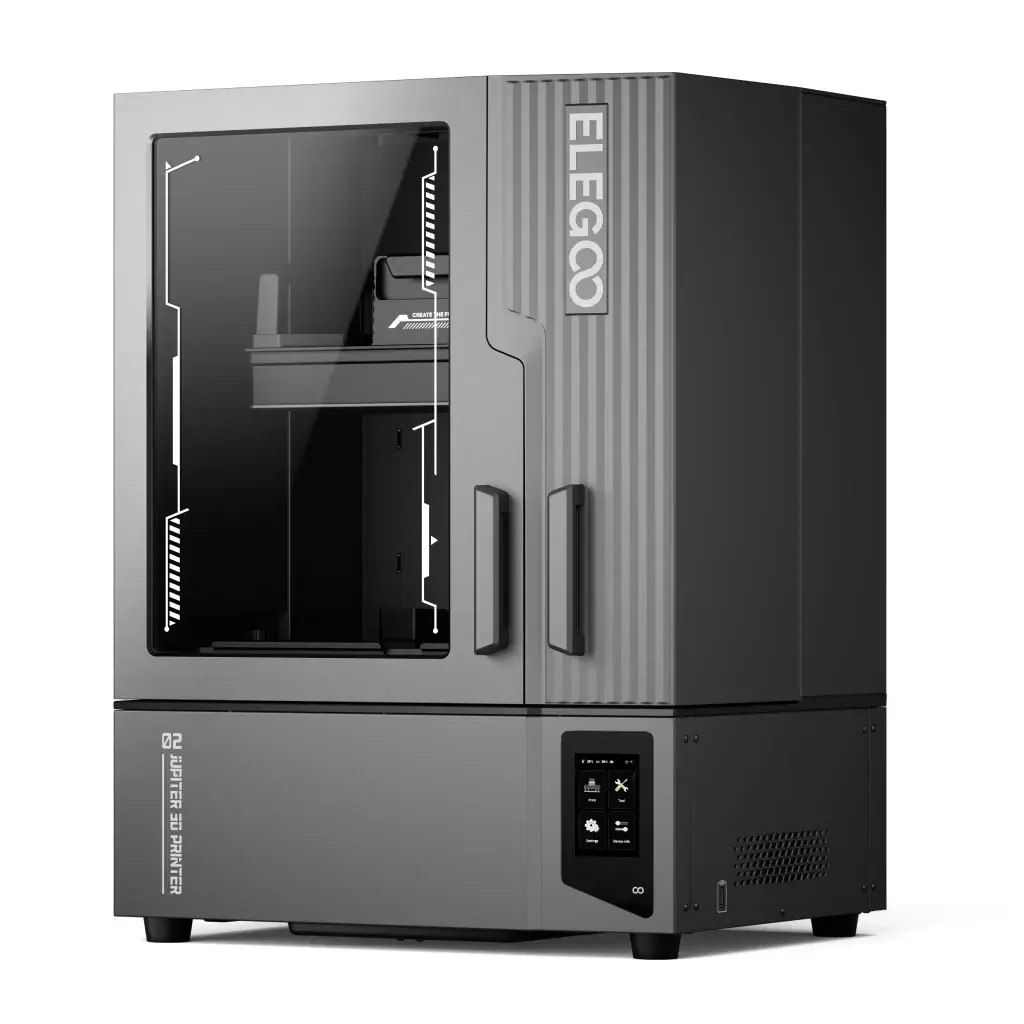

Elegoo Jupiter 2
Description

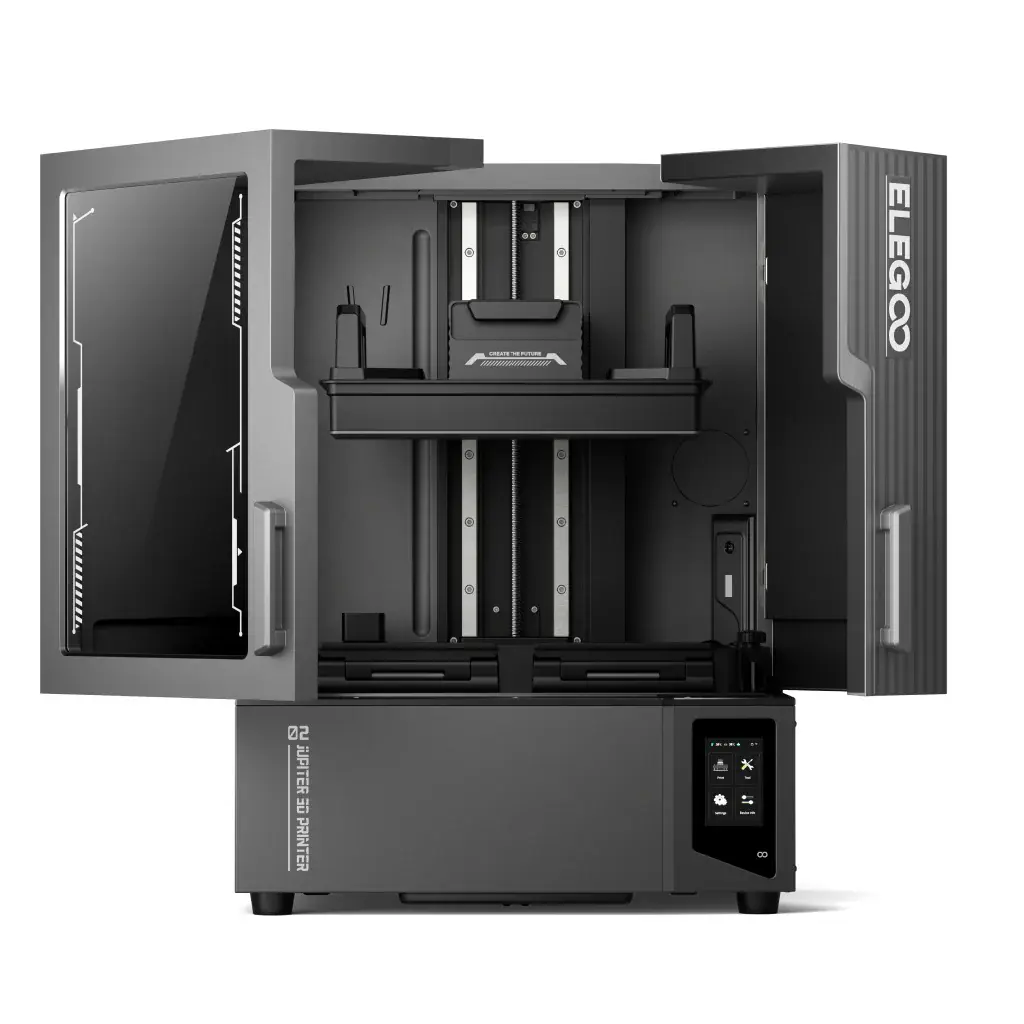

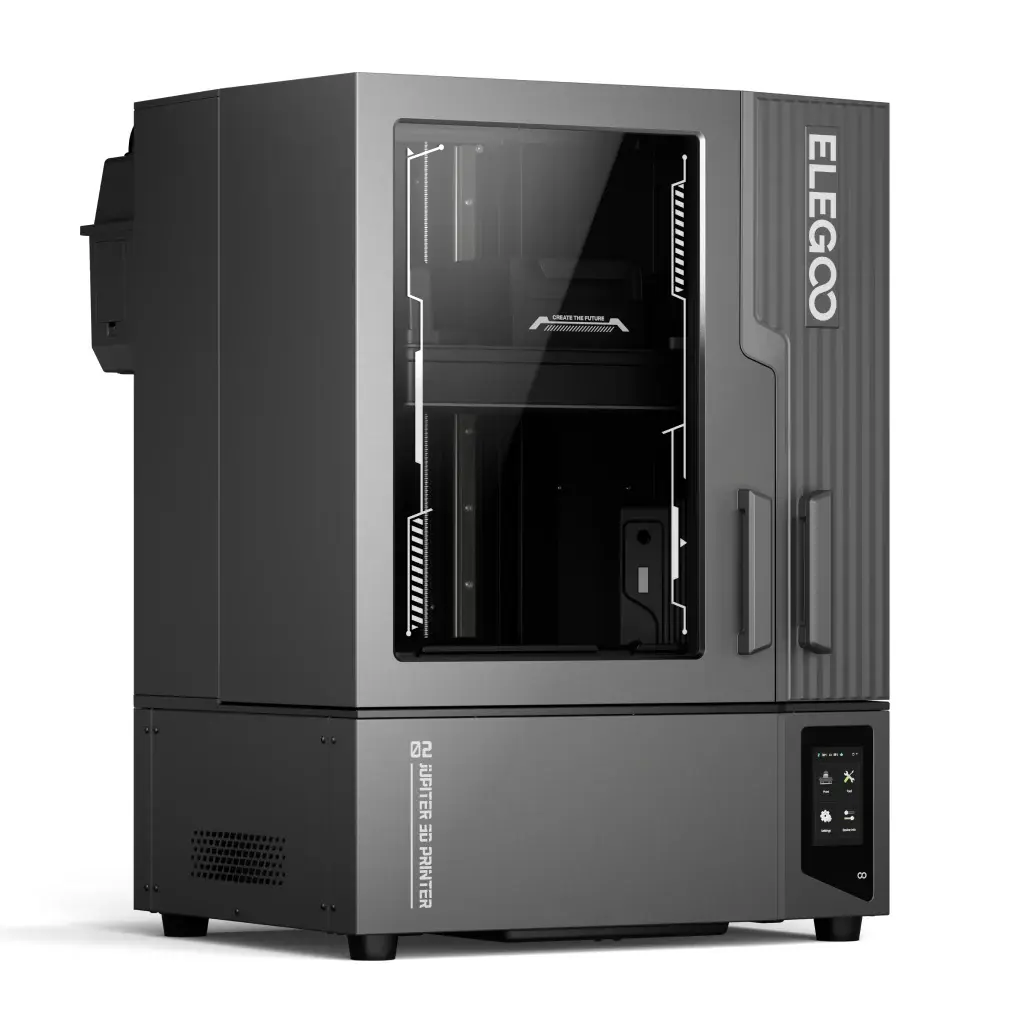

The Jupiter 2 by Elegoo is a large-format resin 3D printer designed for ambitious makers and professionals. Featuring state-of-the-art 16K technology, automatic calibration, and intelligent resin management, it is designed to deliver high-precision and reliable large-scale prints.
16K precision for the finest details
Equipped with a 14-inch 16K LCD screen, the Jupiter 2 delivers an extremely high resolution for sharp contours, fine textures, and exceptionally smooth surfaces. Even complex geometries and the smallest details are rendered with precision.
Large build volume for maximum freedom

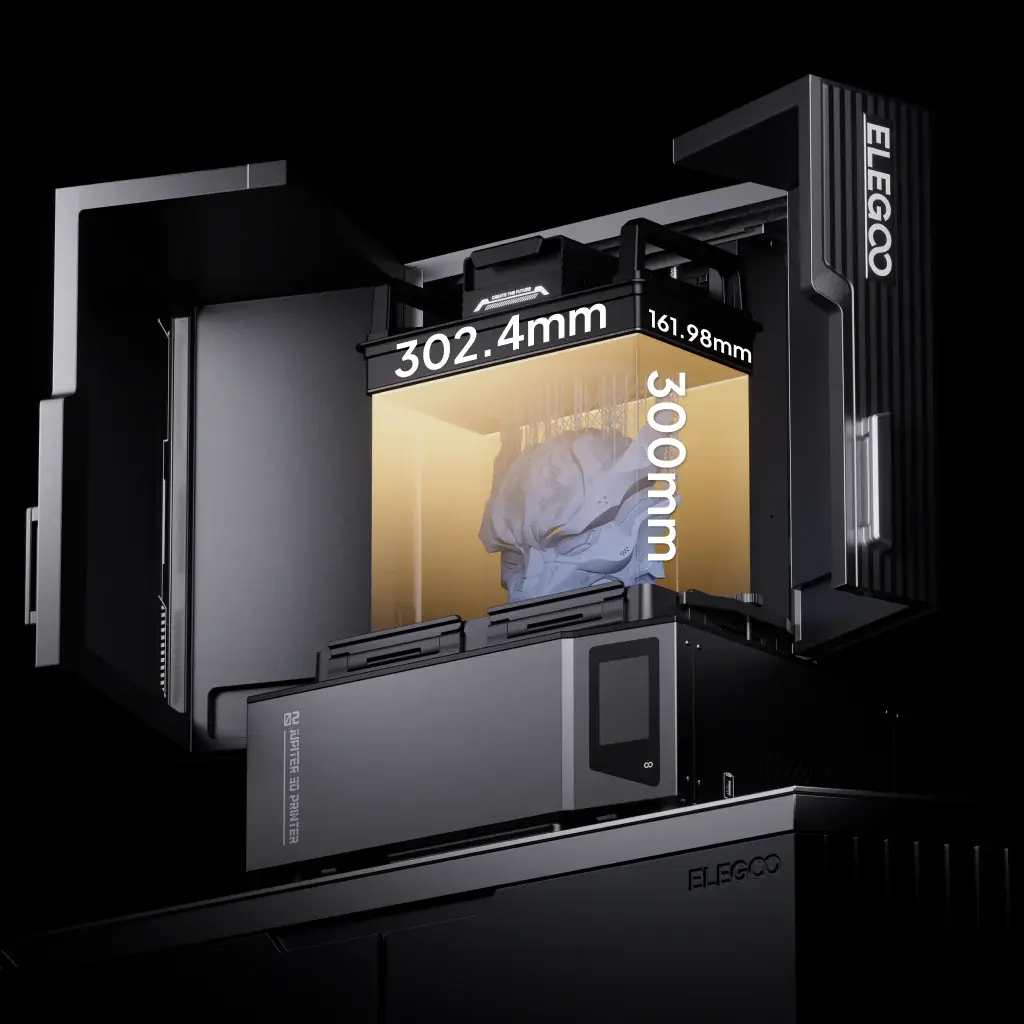

With a generous build volume of 302.4 x 161.89 x 300 mm, the printer is ideal for large individual models or the serial production of multiple components in a single run. This makes it a perfect choice for figures, jewellery design, prototypes, and functional components.
Multi-point auto-levelling
Integrated multi-point auto-levelling ensures reliable and precise calibration at the start of every print. Manual fine-tuning is also available to make individual adjustments as needed.
Maintenance-friendly design
The modular design means the LCD screen can be quickly replaced without damaging it. Maintenance tasks can be completed in a matter of minutes, ensuring downtime is kept to a minimum.
Fast film replacement
Replacing the release film is particularly efficient. The process is up to 10 times faster than with standard systems.

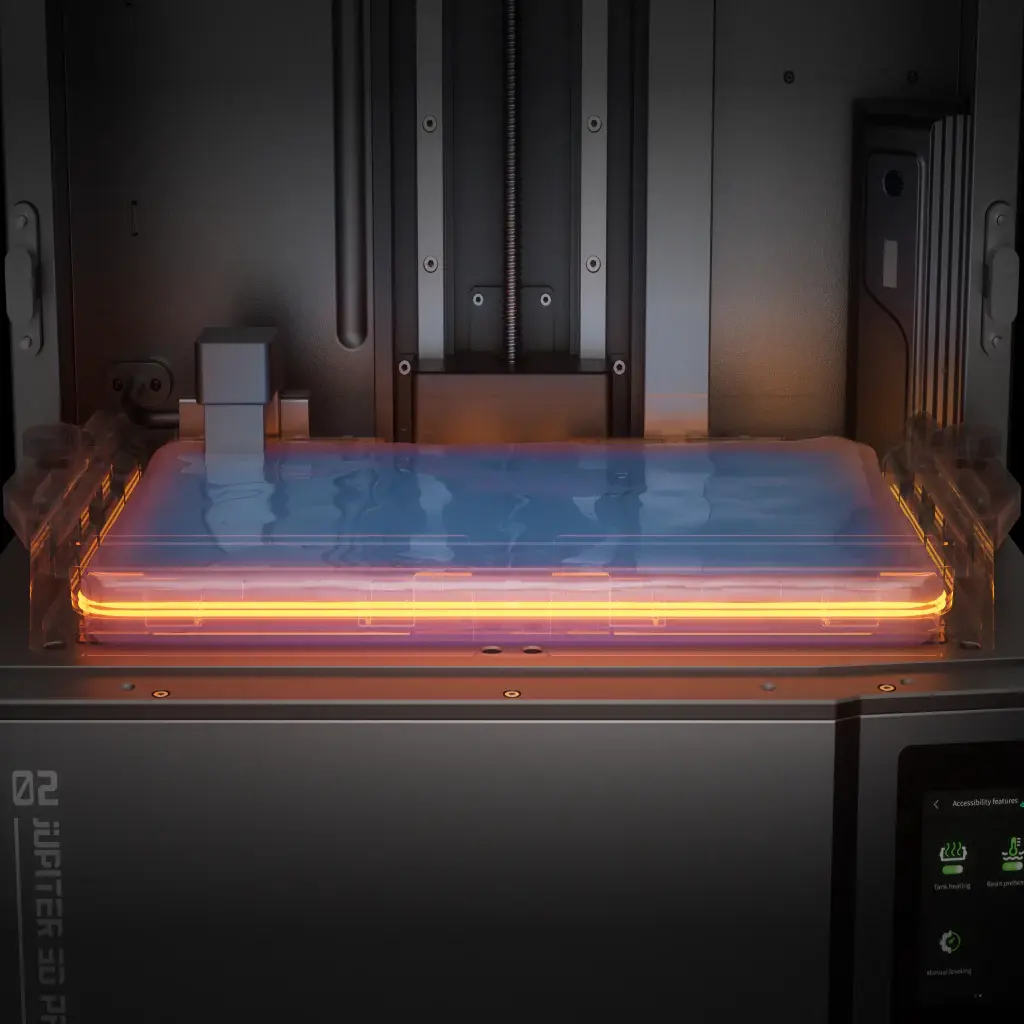

Intelligent resin management

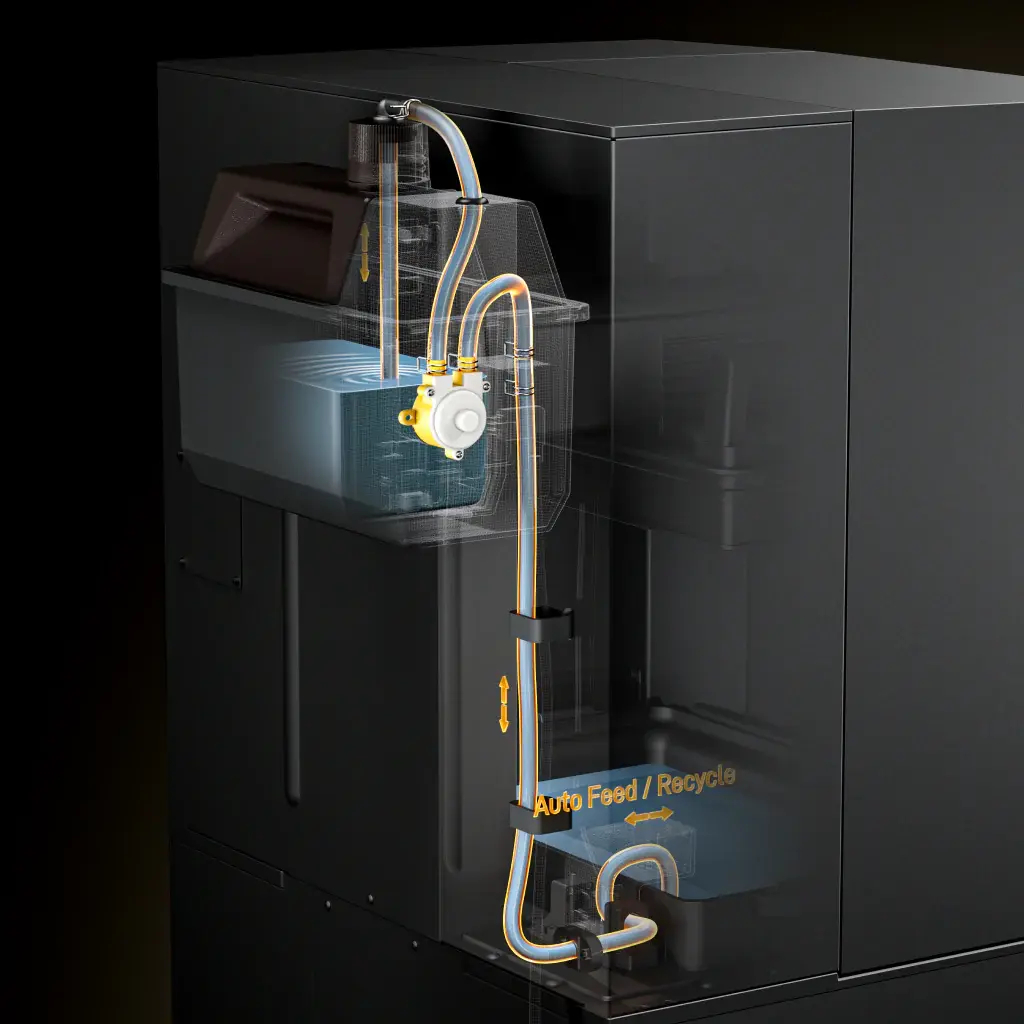

The integrated Smart Resin Management System monitors the resin level, refills it automatically, and recovers excess material. This allows you to focus on the printing process rather than material monitoring.
Technical specifications:
| Printer Dimensions | 465 x 508.10 x 648.1 mm |
| Build Volume | 302.4 x 161.98 x 300 mm |
| Technology | MSLA |
| LCD | 14-inch 16K LCD |
| Print Speed | max. 70 mm/h |
| XY Resolution | 20 x 26 µm (15120 x 6230 pixels) |
| Z-axis Accuracy | 0.02 mm |
| Light Source | COB light source + Fresnel collimating lens |
| Operating System | Linux EL3D-4.0 |
| Recommended Slicer | Elegoo SatelLite Slicer |
| Device Display | 4-inch capacitive touchscreen |
| Interfaces | USB, WiFi |
| Camera | Built-in, 1280 x 720 px |
| Power | 100-240 V, 50/60 Hz, 24 V 12.5 A |
