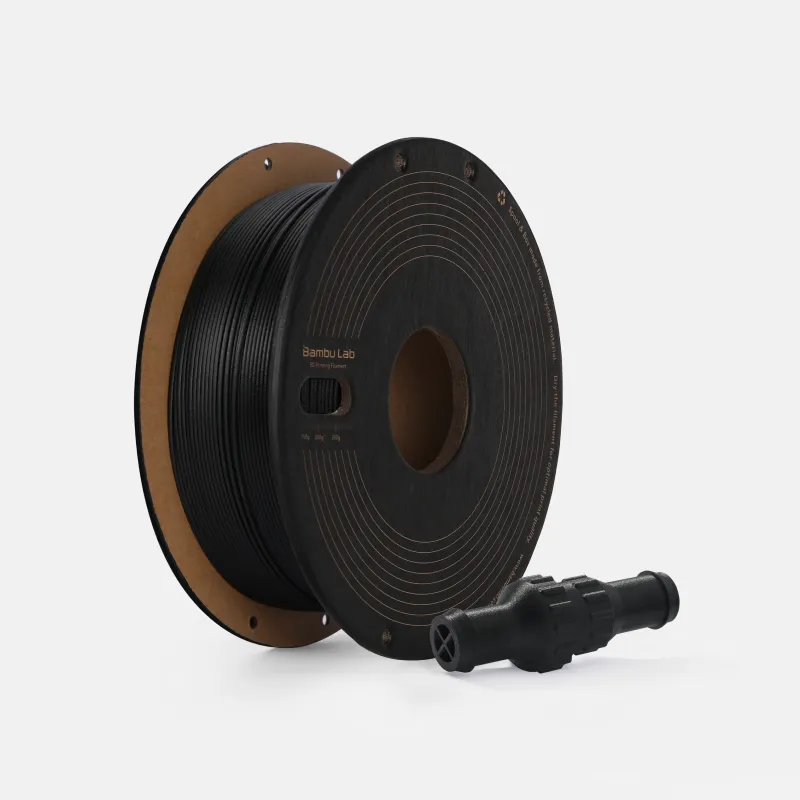

PPS-CF
- Ultra-High Heat Resistance
- Top-Tier Flame Retardant Properties
- Peerless Mechanical Properties
- Solvent and Chemical Resistance
- Ultra-Low Water Absorption
Ultra-High Heat Resistance
PPS-CF boasts a heat deflection temperature of up to 264°C under 0.45 MPa and can continuously operate at temperatures exceeding 200°C. This significantly outperforms normal PA-CF materials, which have maximum temperatures around 190°C and 120°C. Its exceptional heat resistance ensures outstanding creep resistance, making PPS-CF ideal for demanding industrial environments and applications.
| PPS-CF | PPA-CF | PET-CF | PA6-CF | Normal PA-CF | PC | ABS | PLA Basic | |
|---|---|---|---|---|---|---|---|---|
| Heat Deflection Temperature / ℃ (0.45 MPa) | 264 ℃ | 227 ℃ | 205 ℃ | 186 ℃ | 184 ℃ | 117 ℃ | 87 ℃ | 57 ℃ |
Superior Flame Retardancy
PPS-CF achieves a UL-94 V-0 flame retardant rating, offering superior safety and reliability in critical areas such as electronics and automotive components. PPS-CF provides long-lasting durability and peace of mind even in the most demanding environments.
Unmatched Mechanical Properties
Combining the stiffness of PPS polymers with the reinforcing power of carbon fiber, PPS-CF offers exceptional stiffness, bending strength, and tensile strength. Its superior dimensional stability and resistance to warping ensure that large-scale prints maintain precision and avoid deformation during the printing process, making it perfect for high-precision applications.
| PPS-CF | PET-CF | Improved % | |
|---|---|---|---|
| Stiffness (Bending Modulus - XY, Dry State) | 7160 MPa | 5320 MPa | 34.59% |
| Strength (Bending Strength - XY, Dry State) | 142 MPa | 131 MPa | 8.40% |
Solvent and Chemical Resistance
PPS-CF offers outstanding solvent and chemical resistance, second only to PTFE (Teflon). It remains virtually insoluble in any solvent below 200°C and exhibits exceptional resistance to acids, bases, and salts under normal conditions. This makes PPS-CF the ideal choice for challenging environments where chemical stability is critical.
Ultra-Low Water Absorption
With an extremely low moisture absorption rate of just 0.05%, PPS-CF ensures that its mechanical and thermal properties remain stable even in humid conditions. Unlike normal PA-CF, which can soften and degrade when exposed to moisture, PPS-CF maintains its strength and durability, making it the superior option for applications requiring high moisture resistance.
Parameters Comparison
| PPS-CF | PET-CF | PA6-CF | |
|---|---|---|---|
| Composition | Polyphenylene sulfide (PPS), Carbon Fiber | Polyethylene terephthalate (PET), Carbon Fiber | Nylon6 (PA6), Carbon Fiber |
| Toughness (Impact Strength - XY, Dry State) | 27.8 kJ/m² | 36.0 kJ/m² | 40.3 kJ/m² |
| Toughness (Impact Strength - XY, Wet State) | 27.8 kJ/m² | 37.3 kJ/m² | 57.2 kJ/m² |
| Strength (Bending Strength - XY, Dry State) | 142 MPa | 131 MPa | 151 MPa |
| Strength (Bending Strength - XY, Wet State) | 142 MPa | 127 MPa | 95 MPa |
| Layer Strength (Bending Strength - Z, Dry State) | 36 MPa | 49 MPa | 80 MPa |
| Layer Strength (Bending Strength - Z, Wet State) | 36 MPa | 46 MPa | 45 MPa |
| Stiffness (Bending Modulus - XY, Dry State) | 7160 MPa | 5320 MPa | 5460 MPa |
| Stiffness (Bending Modulus - XY, Wet State) | 7160 MPa | 5240 MPa | 3560 MPa |
| Layer Adhesion (Impact Strength - Z, Dry State) | 2.8 kJ/m² | 4.5 kJ/m² | 15.5 kJ/m²/td> |
| Heat Resistance (HDT, 0.45 MPa, Dry State) | 264 ℃ | 205 ℃ | 186 ℃ |
| Saturated Water Absorption Rate (25 °C, 55% RH) | 0.05% | 0.37% | 2.35% |
