Powerful Cutting Efficiency
With its high-power 455nm laser, 40W laser module achieves blazing speeds up to 1000mm/s and effortlessly cuts through thicker plywood in a single pass.
Powerful Cutting Efficiency
With its high-power 455nm laser, 40W laser module achieves blazing speeds up to 1000mm/s and effortlessly cuts through thicker plywood in a single pass.
Contact-less 3D Mesh*
Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.
Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.
Flame Sensor
The H2 chamber is equipped with a flame sensor that can instantly detect fire. In the event of a fire, it quickly sends alerts through push notifications and a buzzer, minimizing potential risks.
What is the difference between 40W, and 10W?
Max Cutting Thickness
| Laser Module | 40 W | 10 W |
| Basswood Plywood | 15 mm | 6 mm |
| Birch Plywood | 15 mm | 6 mm |
| Bamboo Board | 6 mm | 3 mm |
| Black Acrylic | 15 mm | 3 mm |
| Cork Sheet | 4 mm | 2 mm |
| Stainless Metal | 0.1 mm | 0.05 mm |
Max Cutting Speed (Single Pass)
| Laser Module | 40 W | 10 W |
| 3mm Basswood | 16 mm/s | 5 mm/s |
| 4mm Basswood | 15 mm/s | 4 mm/s |
| 6mm Basswood | 10 mm/s | 2 mm/s |
| 10mm Basswood | 4 mm/s | / |
Product Specifications
| Laser Type | Semiconductor Laser |
| Laser Wavelength | Engraving Laser: 455 nm ± 5 nm Blue LightHeight Measuring Laser: 850 nm ± 5 nm Infrared Light |
| Laser Power | 10 W ± 1 W40 W ± 2 W |
| Laser Spot Dimension | 10 W：0.14 x 0.03 mm40 W：0.14 x 0.2 mm |
| Supported Material Type | Wood, rubber, metal sheet, leather, dark acrylic, stone, and more |
| Max Engraving Speed | 10 W：400 mm/s40 W： 1000 mm/s |
| Laser Safety Class for Laser Module | Class 4 |
| Overall Laser Safety Class | Class 1 |
| Engraving Area | 10 W: 310 mm x 270 mm40 W: 310 mm x 250 mm |
| Ventilation Pipe Adapter Outer Diameter | 100 mm |
Installation Guide
For H2D/H2C Laser Upgrade Kit: Bambu Lab Wiki
For H2S Laser Upgrade Kit: Bambu Lab Wiki
What's in the box
For Only Laser Module
| Only Laser Module（10 W） | Only Laser Module（40 W） |
| 1. 10 W Laser Module - 1 pcs 2. Laser Lens - 1 pcs 3. User manual - 1 pcs | 1. 40 W Laser Module - 1 pcs2. Laser Lens - 1 pcs3. User manual - 1 pcs |
For Laser Upgrade Kit

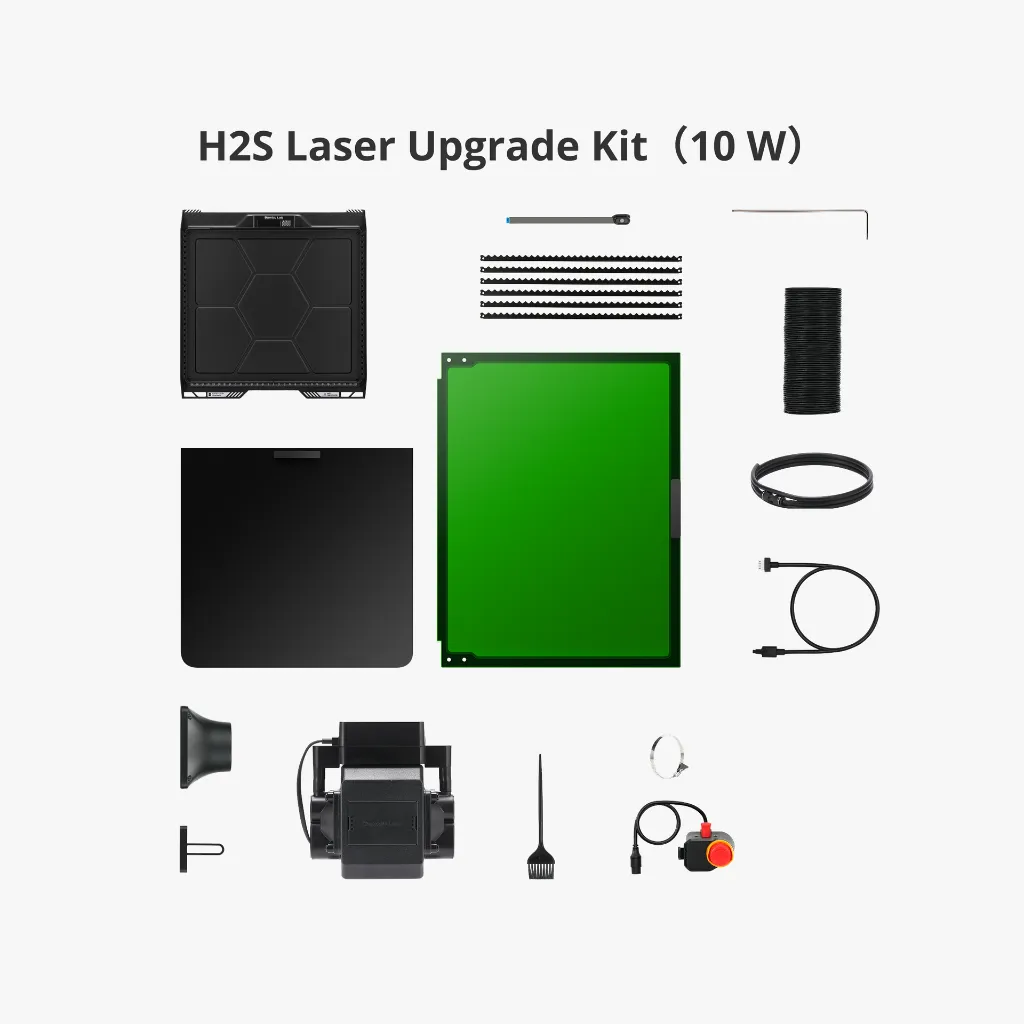

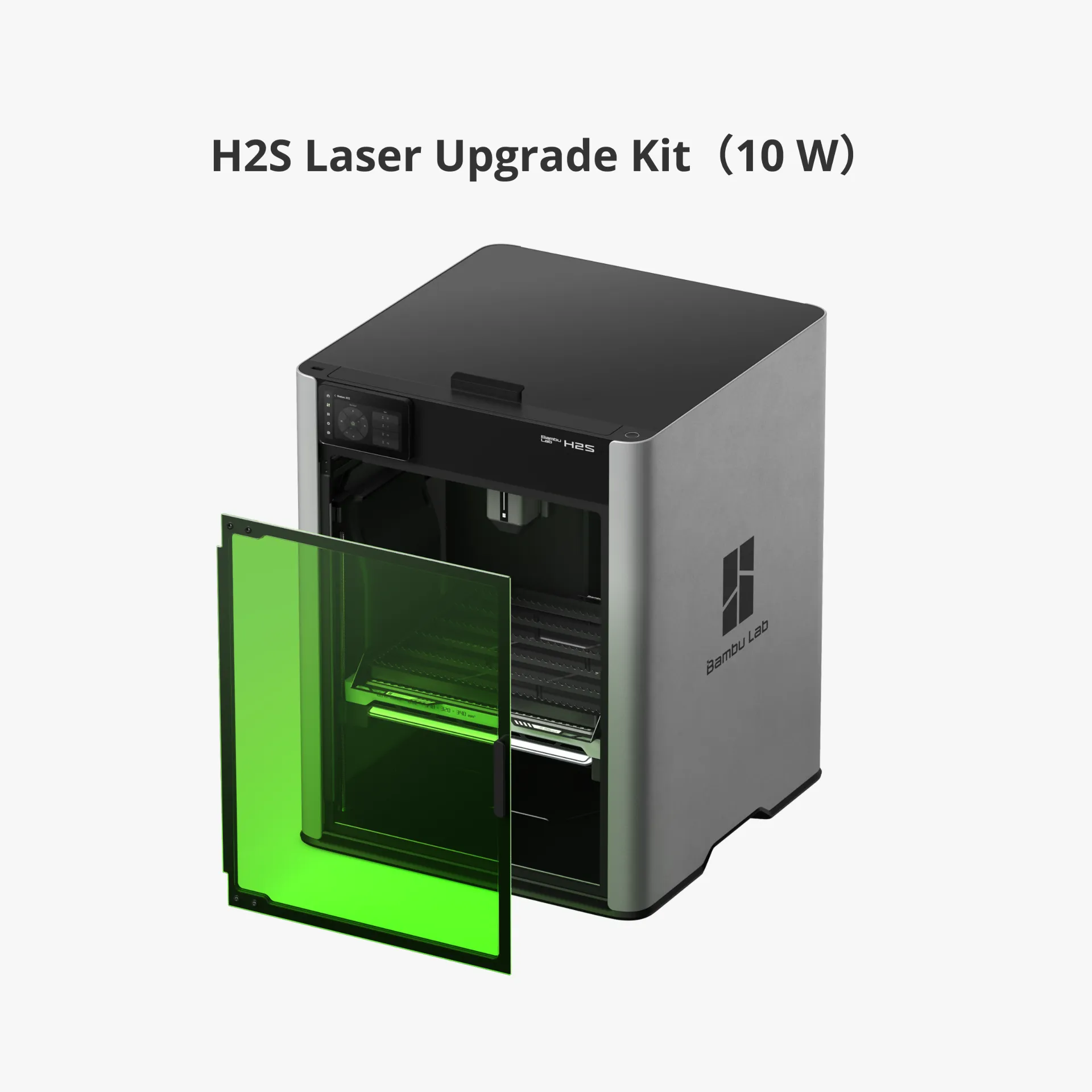

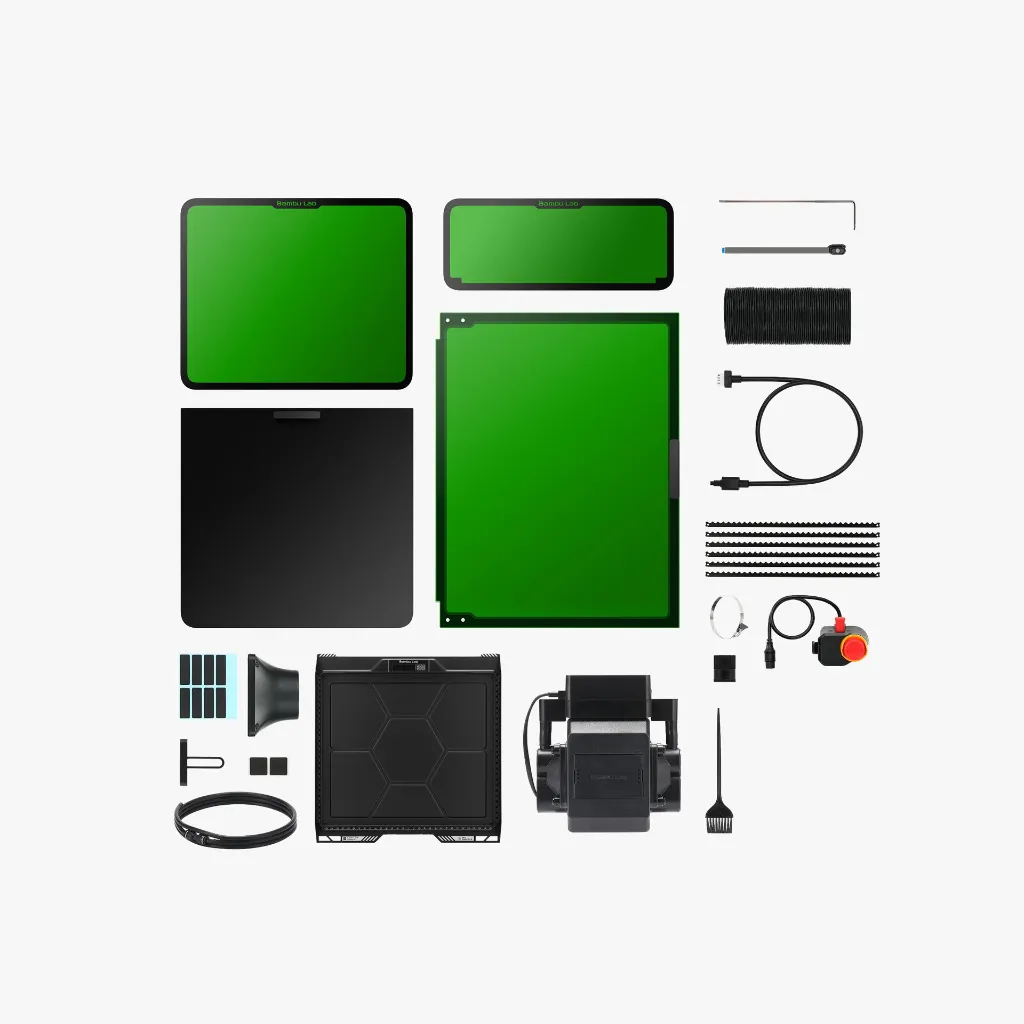

| H2D/H2C Laser Upgrade Kit（10 W） | H2D/H2C Laser Upgrade Kit（40 W） | H2S Laser Upgrade Kit（10 W） |
| 1. Laser Safety Window (Right) - 1 pcs2. Top Laser Protection Plate - 1 pcs3. Laser Safety Window (Left) - 1 pcs4. Laser Safety Window (Front) - 1 pcs5. Sealing Sticker - 1 pcs6. Smoke Ventilation Pipe Adapter - 1 pcs7. Material Pin - 1 pcs8. Sealing Sticker - 1 pcs9. Air Assist Tube - 1 pcs10. Laser Platform - 1 pcs11. Air Pump - 1 pcs12. Allen Key H2.5 - 1 pcs13. Birdseye Camera - 1 pcs14. Smoke Ventilation Pipe - 1 pcs15. External Air Pump Cable - 1 pcs16. Slats - 6 pcs17. Pipe Clamp - 1 pcs18. Cable Organizer - 1 pcs19. Brush - 1 pcs20. Emergency Stop Button - 1 pcs21. 10 W Laser Module - 1 pcs | 1. Laser Safety Window (Right) - 1 pcs2. Top Laser Protection Plate - 1 pcs3. Laser Safety Window (Left) - 1 pcs4. Laser Safety Window (Front) - 1 pcs5. Sealing Sticker - 1 pcs6. Smoke Ventilation Pipe Adapter - 1 pcs7. Material Pin - 1 pcs8. Sealing Sticker - 1 pcs9. Air Assist Tube - 1 pcs10. Laser Platform - 1 pcs11. Air Pump - 1 pcs12. Allen Key H2.5 - 1 pcs13. Birdseye Camera - 1 pcs14. Smoke Ventilation Pipe - 1 pcs15. External Air Pump Cable - 1 pcs16. Slats - 6 pcs17. Pipe Clamp - 1 pcs18. Cable Organizer - 1 pcs19. Brush - 1 pcs20. Emergency Stop Button - 1 pcs21. 40 W Laser Module - 1 pcs | 1. Laser Platform - 1 pcs2. Top Laser Protection Plate - 1 pcs3. Laser Safety Window (Front) - 1 pcs4. Slats - 6 pcs5. Birdseye Camera - 1 pcs6. Allen Key H2.5 - 1 pcs7. Smoke Ventilation Pipe - 1 pcs8. Air Assist Tube - 1 pcs9. External Air Pump Cable - 1 pcs10. 10 W Laser Module - 1 pcs11. Pipe Clamp - 1 pcs12. Emergency Stop Button - 1 pcs13. Brush - 1 pcs14. Air Pump - 1 pcs15. Smoke Ventilation Pipe Adapter - 1 pcs16. Material Pin - 1 pcs |
