Description

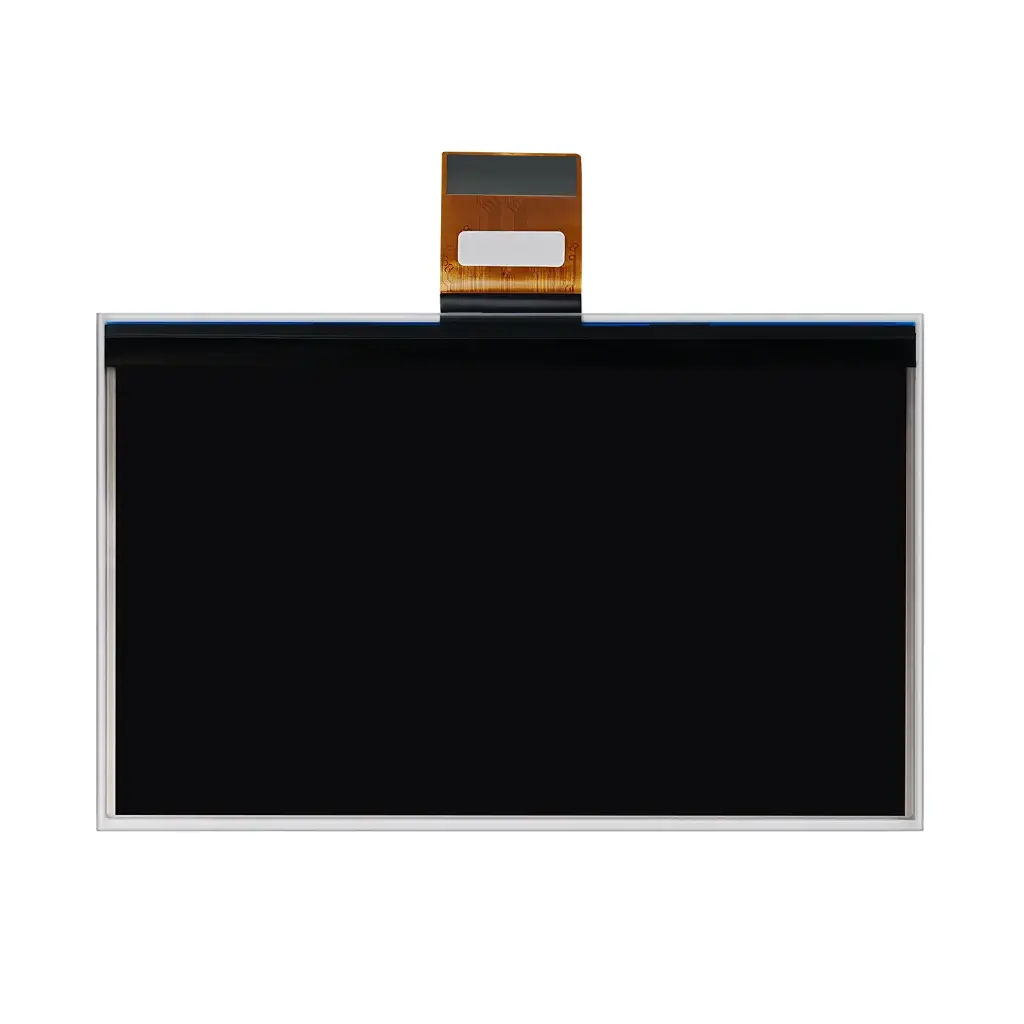

10.1 inch LCD screen with 14K resolution
The Halot Mage S uses a high-quality LCD screen with an ultra-high resolution of 14K (13320 x 5120) and a pixel size of 16.8 x 24.8 μm. The 10.1-inch LCD screen offers a build volume of 223 x 126 x 230 mm, which can bring various shapes, textures and fabrics to life.
Integral Light Source 3.0
Thanks to the Integral Light Source 3.0, Halot Mage S achieves 90%+ light uniformity and excellent quality regardless of where the print object is placed on the build plate. With a dimensional accuracy of 0.02-0.09 mm, smooth surfaces and sharp contours are produced in exact dimensions.
“Dynax” motion system with “Dynax+” ultra-fast mode
Thanks to the agile "Dynax" movement system, the build plate of the Halot Mage S can be raised and lowered again in just 1.2 seconds. Immediately afterwards, the next layer can be printed. This allows the nimble resin printer to reach a maximum speed of up to 150 mm/h.
The printing flexibility and stability are ensured as follows:
- Two linear rails ensure a stable Z-axis, which can result in less Z-axis wobble,
- The powerful closed-loop motor has a fixed high torque of 1300 Nm, which means there is no vibration at low speed and no step loss at high speed.
The uniform movements minimise visible layer lines.
The new “Dynax+” mode enables a 3 to 4 times higher printing speed, meaning that a 15 cm high model can be printed in just one hour with good quality.
“Pictor” high-speed release film
The durable, 3-layer “Pictor” release film has an even coating and a smooth surface. With its stable release force reduced by 35%, the models can be easily removed from the build plate. The high-speed release film has a high light and UV permeability (92%) for more precise and better printing results.
Tip: For printing at standard speeds, FEP film can also be used.
Laser cut construction board
The Halot Mage S uses a CNC-machined aluminium alloy build plate. A special laser-cut pattern ensures a perfect first layer, stronger model adhesion, and faster removal of printed parts.
Self-developed Halot OS
Halot Mage S uses the self-developed Halot operating system. This has a clear user interface and synchronises data and commands via PC, phone and Creality Cloud. For time, space and device-independent 3D printing!
Efficient air purifier with activated carbon filter
A built-in air purifier with a newly developed activated carbon filter effectively absorbs harmful resin odours.
Tip: There is an opening on the back for connecting an exhaust hose.
Automatic resin pump as an optional upgrade
The resin printer can be equipped with an intelligent resin pump for automatic resin filling and dispensing if desired. The pump means there are far fewer splashes, stains and general mess.
Other features:
- 2.25x tighter levelling tension with a non-slip adapter,
- “MageArch” hinged lid can be easily opened and closed with one hand,
- Quickly removable construction plate with side clamping knob,
- Self-developed slicing software Halot Box.
