  3. Mean Well RSP-500-24 Switching Power Supply 504W 24V 21A
Custom V3d PKR Pricelist

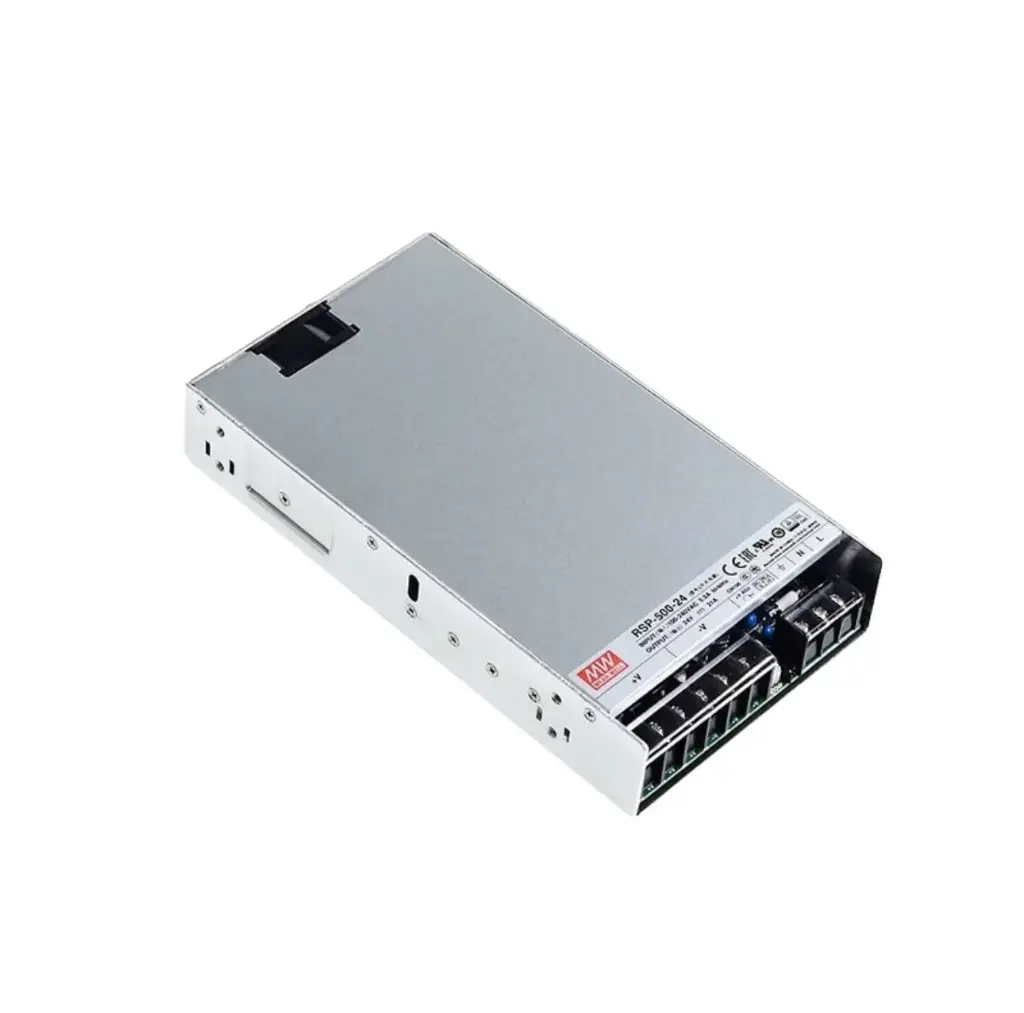

Mean Well RSP-500-24 Switching Power Supply 504W 24V 21A

https://www.vertex3d.co/web/image/product.template/2661/image_1920?unique=c20a4d9
(0 review)
AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 21.0A; PFC; forced air cooling; 1U low profile

39,999.00 Rs. 39999.0 PKR 39,999.00 Rs.

39,999.00 Rs.

Not Available For Sale

  • Brand
  • Model

This combination does not exist.

Power Supply Mean Well RSP-500-24
Contact Us
Brand: Mean Well
Model: RSP-500-24

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

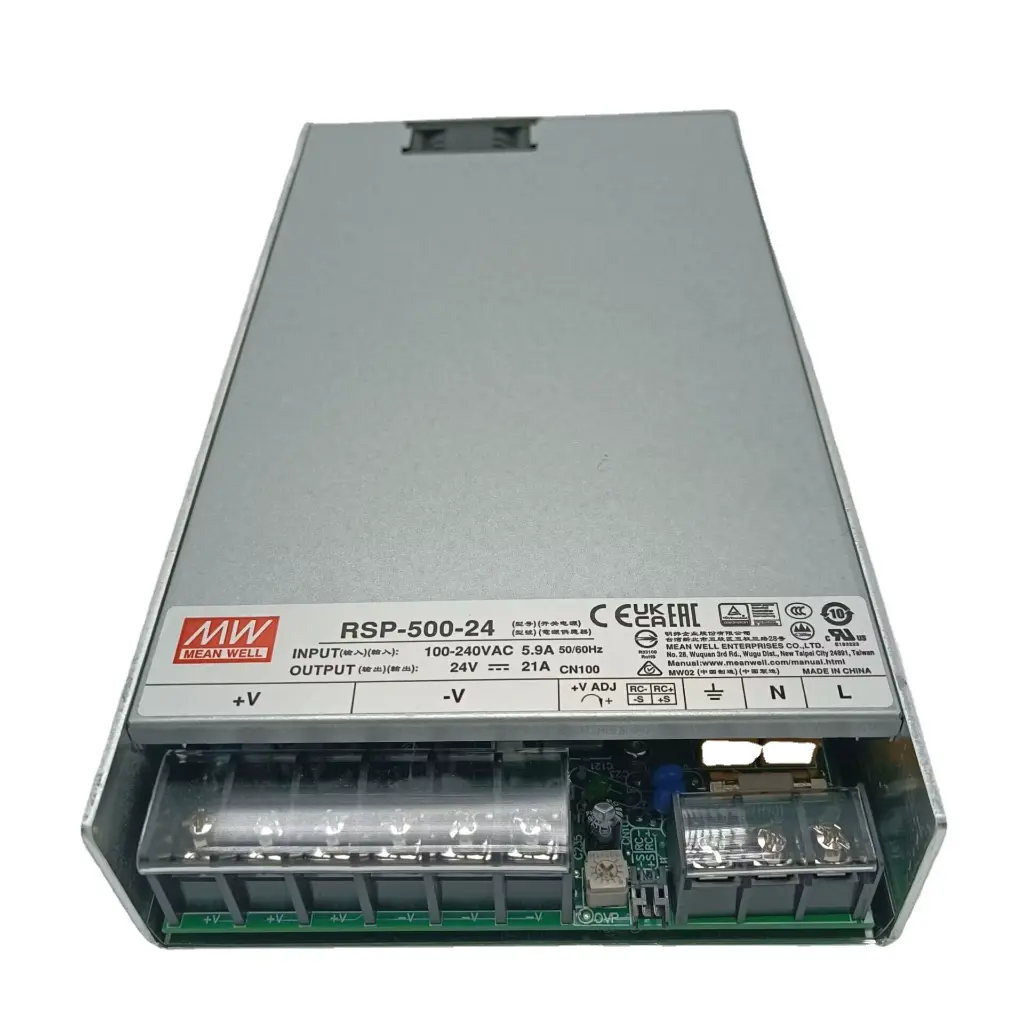

Mean Well RSP-500-24 (504W 24V) Power Supply

  • AC-DC Industrial Enclosed Single output power supply
  • Output: 24 volts, 21 amps, 504 watts
  • Connection Type: Screw TerminalUniversal AC input / Full range
  • Built-in active PFC function, PF>0.95

MEAN WELL Single Output, Industrial AC-DC Converter, Enclosed Package, 504 Watts, Input Voltage Range: 85~264VAC, Output Voltage: 24VDC, Output Current: 21A, Connection: Screw Terminal

More Details

The Mean Well RSP-500-24 is a industrial, single output, AC-DC power supply. The nominal output is 24 Volts DC at 21 amps, with a maximum power output of 504 watts. It accepts an AC input voltage of 85~264 and has an efficiency rating of 89%. The RSP-500-24 has an Enclosed package type with an operating temperature range of -30C to +70C. It includes a built-in fan for active cooling and its dimensions are 9.06 (L) x 5.00 (W) x 1.59 (H) inches.
