Mini 2.4G 8CH D8 FrSky Compatible Receiver With PWM PPM SBUS Output Compatible with Frsky X9D (Plus) DJT DFT DHT
Frsky-8CH D8 PWM Receiver:
This receiver is compatible with frsky (rui kai) series remote control and high frequency head, with compact structure, only 1.1g, ultra-light super small PWM,PPM,SBUS receiver;
The downtown ground pull is 750m, the air is steady over 1km, suitable to play with KT fixed wing, small electric straight, through the machine, etc
Compatible with frsky X9D remote control (D8 mode), XJT (D8 mode), DJT, DFT, DHT, etc
For frequency methods:
1, choose D8 X9D remote control mode, hold down the receiver to BIND it with electricity, led normally on at this time, select the BIND, remote control receiver led out said to frequency, remote control to exit the frequency mode, let go the BIND keys, electricity can be used again
2, DJT, DFT high-frequency head hold high frequency power button to open the remote control, high-frequency head into the frequency mode, hold down the receiver to BIND it with electricity, complete leds put out on frequency, remote restart at this time, let go the BIND keys, receiver restart can be used
3. The XJT hf head dip switch selects the D8 mode, and then the frequency mode is the same
PPM output mode:

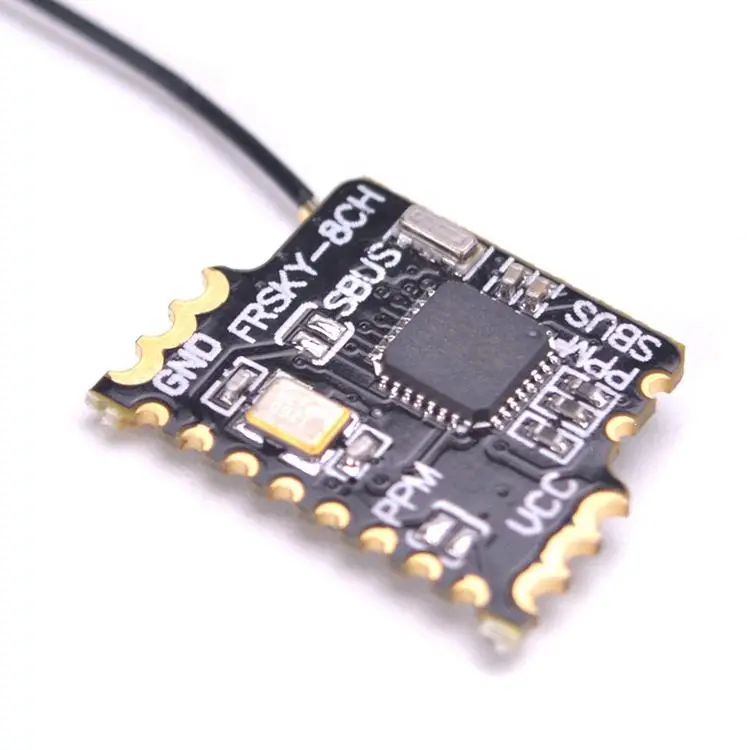

The PPM solder on the back of the short receiver is the PPM output, which can be used to connect flight control, or wireless simulation, or wireless coach
SBUS output mode:
The SBUS solder on the back of the short receiver is the SBUS output
Out of control protection:
Currently only the third channel is out of control protection and cannot be defined by itself. Regardless of any way of mixing the channels, please keep the throttle channel in the third channel.
Signal format: FRSKY (D8)
Number of channels: 8CH
Output signal: 8 PWM output, PPM output, SBUS output
Power supply voltage: 3.3-10V
Power supply current: 25MA@5V
Distance: >500 meters
Maximum size: 18*14MM
Weight: 1.1 g (with antenna)

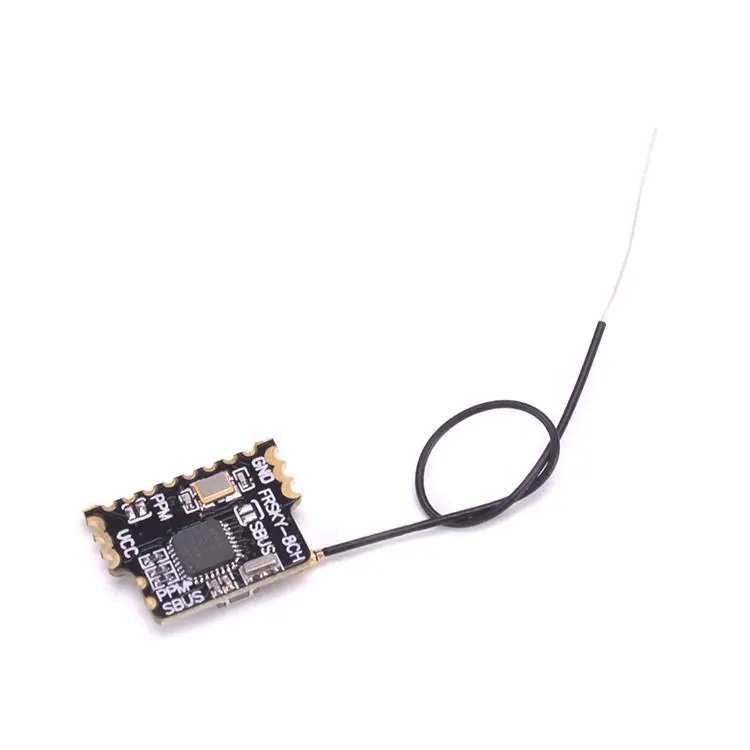

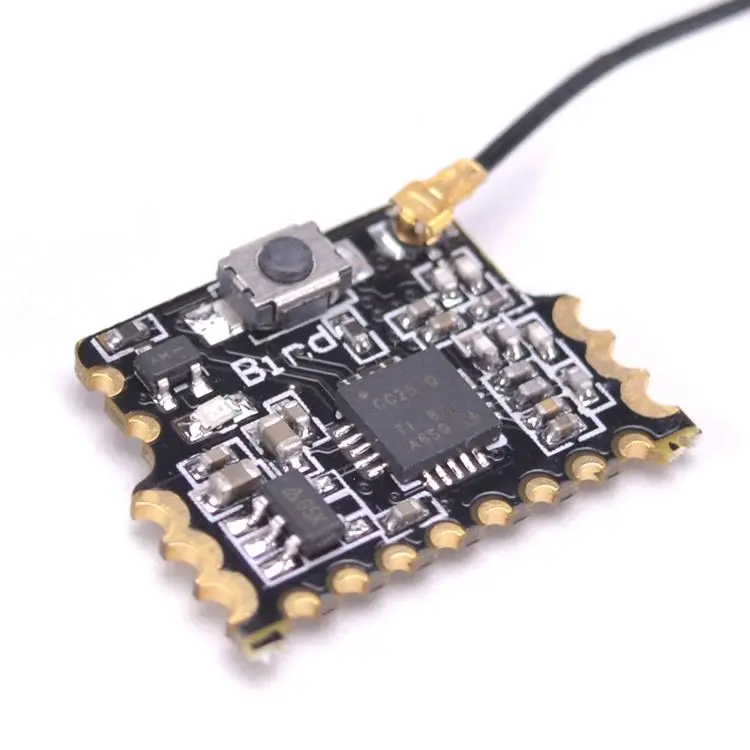

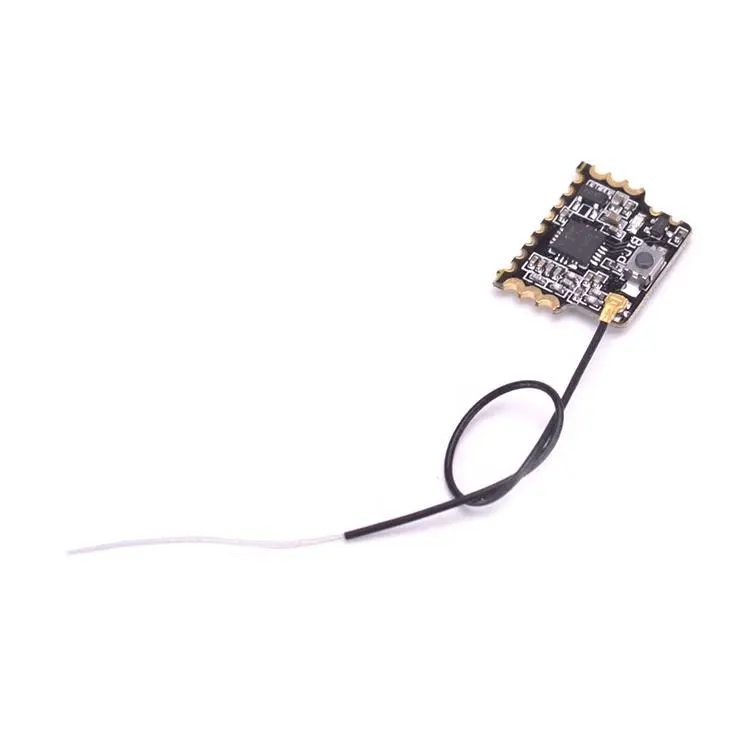

2.4G 8CH D8 Mini FrSky Compatible Receiver With PWM PPM SBUS Output
03-specification
The other similar receiver you may interesting!
DSCF1250 DSCF1254 DSCF1137
Description:
Description:
Item Name: Mini Compatible Receiver
Number of channels: 8CH
Output signal: 8-channel PWM output, PPM output, SBUS output
Supply voltage: 3.3-10V
Supply current: 25MA @ 5V
Distance: > 300 meters
Maximum size: 18 * 14MM
Weight: 1.1 g (with antenna)
Compatibility:
FrSky transmitter X9D/X9DPLUS/ X9E/ X12S/X7 in D8 mode
RF Module: DFT/DJT/DHT and XJT at D8 Mode
How To Bind:
Binding the receiver to the Frsky Taranis
In the Taranis, go to MODE SETUP (page 2) in the model configuration.
Go to Mode inside Internal RF and select D8.
Press and hold the receiver bind button and plug your battery in to turn the receiver on.
Release the button. A green LED lights up in the receiver.
Going back to the Taranis; we press BIND. The transmitter beeps, indicating it’s in bind mode.
Wait for the green LED on the receiver to turn off. The binding procedure has finished.
Exit the BIND mode in the Taranis.
Unplug the battery to turn off the receiver.
Binding the receiver to the XJT module
Using the dip switches of the XJT module, select the D8 mode. They should be in the following position: switch 1 = ON, switch 2 = OFF.
Press and hold the receiver bind button and plug your battery in to turn the receiver on.
Release the button. A green LED lights up in the receiver.
Press and hold the bind button and turn the transmitter on.
Release the button. A green light should blink in the module, indicating it’s in bind mode.
Wait for the green LED on the receiver to turn off. The binding procedure has finished.
Turn the transmitter off.
Unplug the battery to turn off the receiver.
Package included:
1 x Frsky-8CH D8 PWM Mini Receiver
