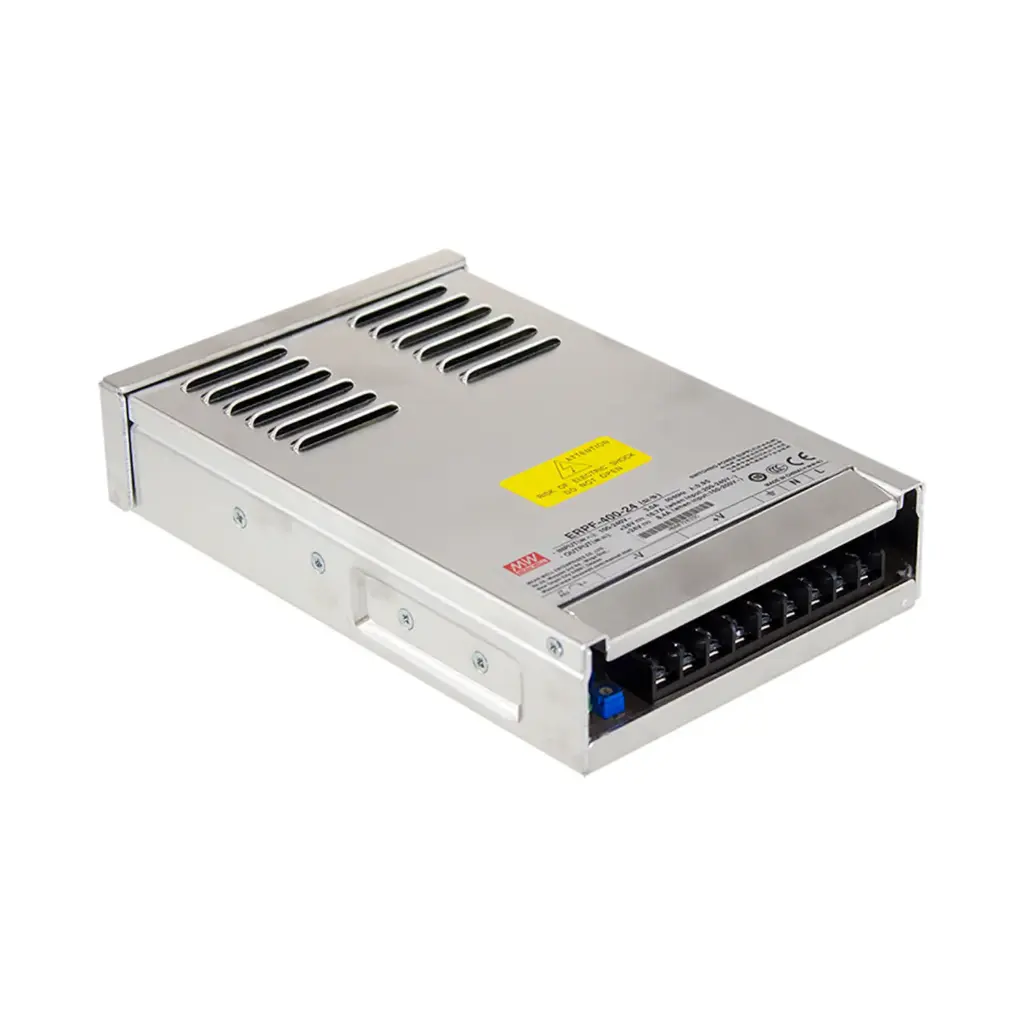

MEAN WELL ERPF-400-24 Enclosed Power Supplies 400.8W
Key Feature
- Reliable quality Power supply driver adopts the design of pouring semi-glue to prevent rain, passes 100% full load aging test, with PFC, LED power indication.
- Strong stability AC-DC single group output power adapter conversion efficiency of up to 91%, the international common AC input range, can withstand 300VAC surge input for 5 seconds.
- Multiple Protection The power converter works in the range of -30℃~+60℃, with short circuit, overload, over-voltage and over-temperature protection to protect your equipment.
- Super Compatible Switching power supply using metal casing, natural air-cooled, applied in LED lighting fixtures, display lighting, etc.
- Cautions To prolong the service life, please do not let the power transformer exceed the rated current for a long time! If you have any questions, please contact us in time.
AC-DC Single output power supply with PFC; Output 24VDC at 16.7A; Input range 90-264VAC
Properties
- Brand:Mean Well
- Series:ERPF-400
- Dimensions LxWxH (mm):220.4x130x48 mm
- Width product (mm):130
- Height product (mm):48
- Gross weight:1336
- Warranty:36 Months Bring-In
- Type:AC-DC
- Form factor:Enclosed
- Mounting method:Chasis mount
- Min. output voltages (V):24
- Max. output voltage (V):24
- Number of output voltages:1
- Max output power (W):400
- Input voltage (V):90 - 264
- Min. input voltage:90
- Max. input voltage (V):264
- Max. output current (A):16
- Number of output currents:1
- IP rating:No IP assigned
- LED driver:No
- Dimming technologies:No Dimming
- Control signals:No control signal
- Carbon footprint (kgCO2e/pcs):16.03
