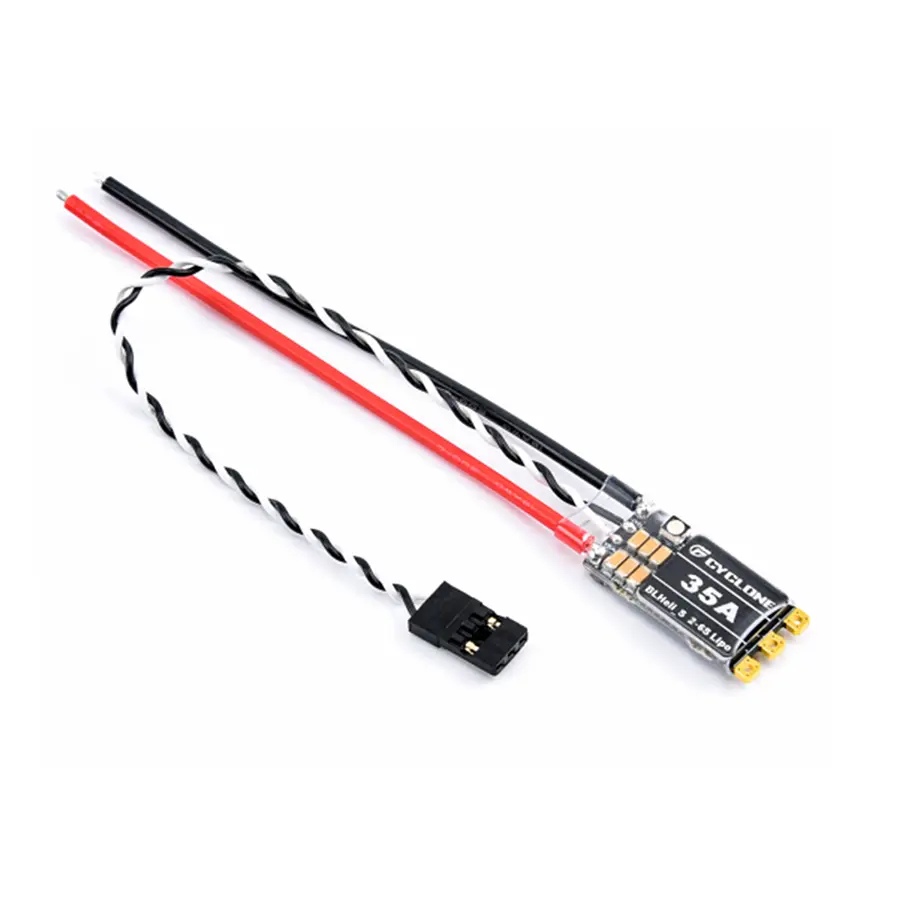

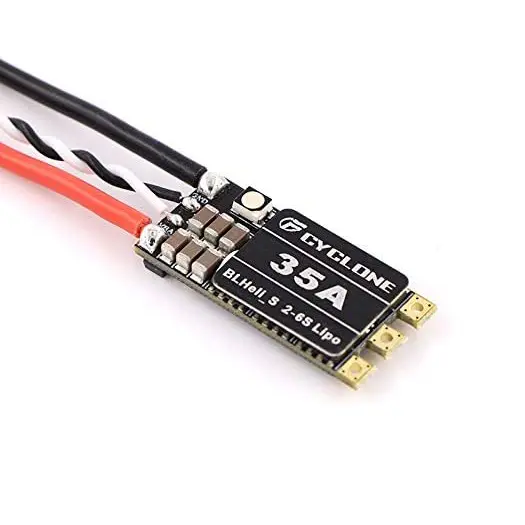

Cyclone 35A ESC BlHeli 2-6S
- BLHeli_S 35A/45A ESC The latest EFM8BB21F16G high-speed control chip
- Integrated RGB LED light Support BLHeli_S, DSHOT150 300 600 digital throttle
- The hardware PWM is turned on by default. Damped light hardware PWM drive motor Strong anti-jamming ability, relative emergency speed
Cyclone 35A BLHeli_S ESC - High-Speed DShot150/300/600 & Oneshot125 Support for 2-6S RC FPV Quadcopter | Drone | Airplane
Cyclone 35A BLHeli_S ESC Support 2-6S Power Supply DShot150/300/600 Oneshot125 For RC FPV Quadcopter Airplane Drone
Advanced Compatibility and Versatility
The Cyclone 35A BLHeli_S ESC is designed to support a wide range of RC models, including FPV quadcopters, drones, and airplanes. With its ability to handle 2-6S LiPo batteries, it ensures compatibility with various power supplies 2. It supports DShot150/300/600 and Oneshot125 protocols, providing high-speed signal processing for ultra-responsive control.
Cutting-Edge Performance
Featuring an EFM8BB21F16G microcontroller and utilizing a 30Z copper thickness PCB board, this ESC delivers superior heat dissipation and increased system efficiency. This design allows for very fast response times and smooth, zero-delay operation, making your flying experience more precise and enjoyable 7.
Robust Construction and Lightweight Design
Weighing only 6 grams (with wire), the Cyclone 35A BLHeli_S ESC is incredibly lightweight without compromising on durability or performance. Its robust construction includes a bootloader for easy firmware updates and a user-friendly LED indicator for status checks 6.
Enhanced Safety Features
Equipped with Damped Light mode and regenerative braking function, the Cyclone ESC provides enhanced motor deceleration, which not only improves safety but also adds to the overall sensitivity and effectiveness of your aircraft's control system 4. These features are essential for pilots looking to push their craft to the limit while maintaining control.
Easy Installation and Customization
The package includes everything you need to get started, offering flexible purchasing options from 1PCS to multiple units as per your requirement. The exposed PCB soldering points allow for direct connection with motor lines, simplifying installation and customization. Plus, the absence of a BEC (Battery Elimination Circuit) keeps the system clean and efficient, catering to those who prefer a dedicated power supply setup
BLHeli_S Electronic Speed Controller 35A / 45A BLHeli_S ESC:
Model:BLS-35A
Input Voltage:（2-6S）;Battery: 2-6S.
Con.Current：35A;max spoort to 45A(in 10s)
BEC:NO
Firmware: BLheli_S
Bootloader: Yes
Weight (with wire) 6g,light weight.
Chips on EFM8BB21F16G.
Use 30Z copper thickness PCB board,Reduce heat and increase system efficiency.
Very fast response.
Smooth and zero-delay operation.
