Anycubic Photon M3 Max
Anycubic Photon M3 Max is one of the leading resin printers for bigger prints. A 13,6 inch 7K monochrome display allows a build volume of up to 298 x 164 x 300 mm.
Highlights
- 13" 7K Monochrome Screen
- Anycubic Auto Resin Filler
- High Precision Ball Screw
- Large Building Size
Technical Specifications
- Exposure screen: 13.6" monochrome
- Printing accuracy: 6,480 x 3,600 px (7K)
- Contrast ratio: 450:1
- Light source: Parallel matrix (LED lights x 84)
- Build plate: Laser engraved platform
- Printing speed: ≤ 6 cm/hr
- Control panel: 4.3" resistive touch-control
- Data input: USB-A 2.0
- Rated power: 120W
- Print size: 30.0 x 29.8 x 16.4 cm / 11.8 x 11.7 x 6.46 in. (HWD)
- Printing volume: 14.7 L / 498.5 oz
- Machine size: 59.6 x 40.0 x 40.8 cm / 23.5 x 15.7 x 16 in. (HWD)
- Machine weight: 26 kg / 57.3 lb
13" 7K Monochrome Screen
Bigger Volume, greater Freedom.
Anycubic Auto Resin Filler
Smart resin filling, Stopless Printing.
High Precision Ball Screw
Makes detailed printing experience.

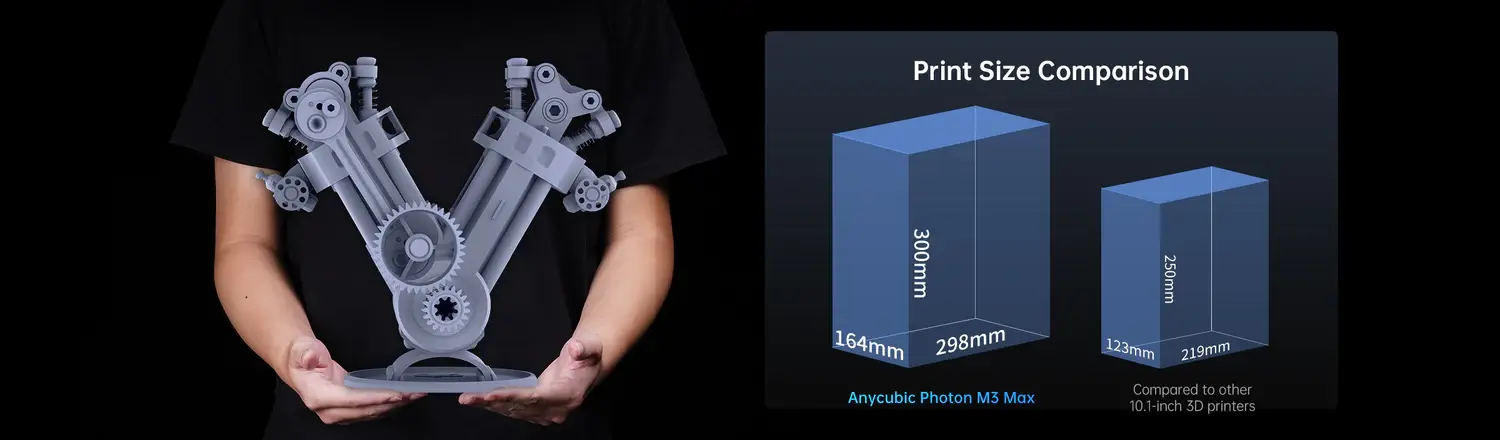

Large Building Size
298*164*300mm.
Technical Specifications
- Exposure screen: 13.6" monochrome
- Printing accuracy: 6,480 x 3,600 px (7K)
- Contrast ratio: 450:1
- Light source: Parallel matrix (LED lights x 84)
- Build plate: Laser engraved platform
- Printing speed: ≤ 6 cm/hr
- Control panel: 4.3" resistive touch-control
- Data input: USB-A 2.0
- Rated power: 120W
- Print size: 30.0 x 29.8 x 16.4 cm / 11.8 x 11.7 x 6.46 in. (HWD)
- Printing volume: 14.7 L / 498.5 oz
- Machine size: 59.6 x 40.0 x 40.8 cm / 23.5 x 15.7 x 16 in. (HWD)
- Machine weight: 26 kg / 57.3 lb
Sample Prints
Anycubic Photon M3 Max
14.7L Large Print Volume | 13" 7K Monochrome Screen | Anycubic Auto Resin Filler
Unleash Your Imagination
Equipped with 13.6 inch large screen, building size of 300x298x164mm(HWD), 14.7L print volume, unleash your creativity without limits.
VIDEO
Sample Prints
Specifications

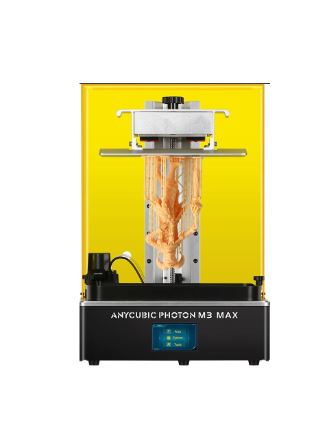

Anycubic Photon M3 Max 3D Printer in Pakistan available at VERTEX 3D
SPECIFICATIONS:
Build volume
11.8x11.7x6.5in./300x298x164mm(HWD)
Printing volume
14.7L/498.5oz.
Printing speed
≤60mm/hr
Machine leveling
4-point manual leveling
Lcd screen size
13.6" 7K(6,480 x 3,600px) mono LCD
Light source
Parallel matrix (LED lights x 84)
Build platform
Laser engraving platform
Operating screen
4.3" resistive touch-control
Slicing software
Photon Workshop
Material
Supports most resins on the market (water-washable, standard, ABS-like, plant-based, etc.)
Machine dimensions
23.5x15.7x16.1in./596x400x408mm(HWD)
Machine weight
21kg/46.3lb.
